ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

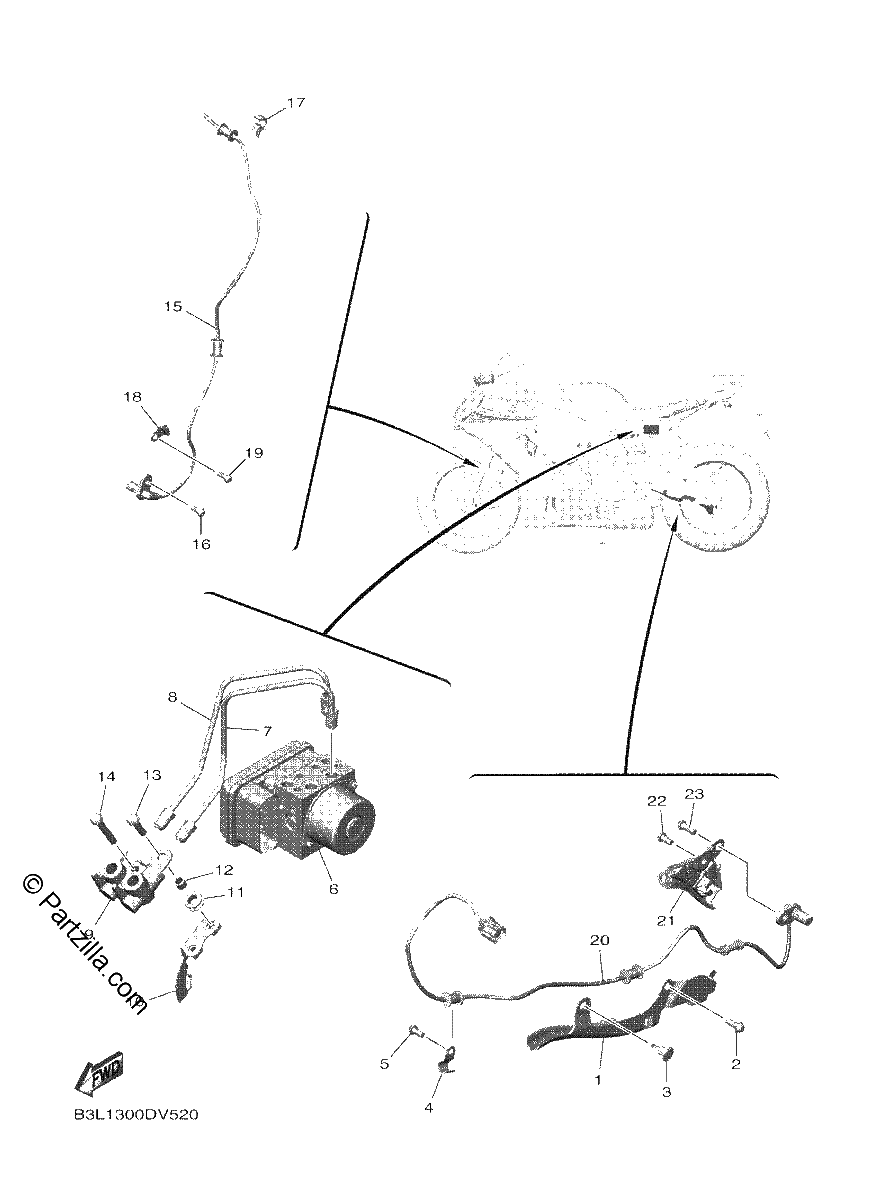

Diagrama de ELECTRICAL 3

Repuestos

#1
2CR-2219X-00-00
COVER
$15.97¢7 987
1
#2
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#3
90269-07007-00
RIVET
$3.68¢1 840
1
#4
2CR-2216F-00-00
HOOK
$5.01¢2 507
1
#5
92017-06012-00
BOLT, BUTTON HEAD
$2.24¢1 121
1
#6
B3L-85930-08-00
HYDRAULIC UNIT ASSY
$1018.89¢509 444
1
#7
B3L-25871-00-00
PIPE, BRAKE
$10.90¢5 451
1
#8
B3L-25882-00-00
PIPE, BRAKE 2
$10.33¢5 164
1
#9
2CR-25885-00-00
JOINT
$62.26¢31 130
1
#10
2CR-27251-00-00
BRACKET, CABLE
$12.21¢6 106
1
#11
90480-11006-00
GROMMET
$3.22¢1 610
1
#12
90387-066V8-00
COLLAR
$7.52¢3 760
1
#13
92017-06020-00
BOLT, BUTTON HEAD
$2.79¢1 397
1
#14
92017-06035-00
BOLT, BUTTON HEAD
$2.60¢1 299
1
#15
D45-85970-00-00
WHEEL SENSOR ASSY, FRONT
$154.30¢77 148
1
#16
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#17
90464-09129-00
CLAMP
$2.02¢1 012
1
#18
2CR-23317-00-00
HOLDER, CABLE
$9.88¢4 939
1
#19
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#20
2CR-85980-01-00
WHEEL SENSOR ASSY, REAR
$160.62¢80 310
1
#21
2CR-27491-01-00
PROTECTOR
$14.95¢7 475
1
#22
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#23
90109-06234-00
BOLT
$6.66¢3 329
1
