REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

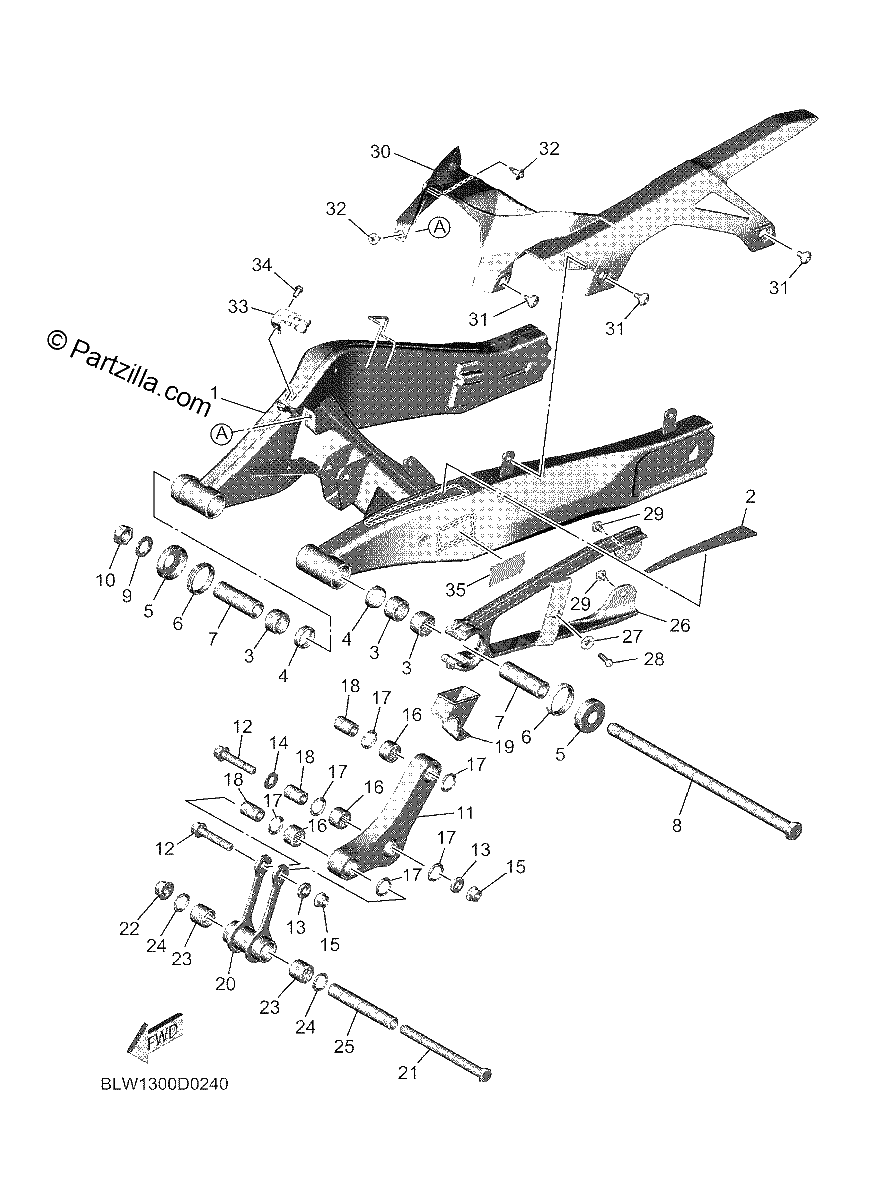

Diagrama de REAR ARM

Repuestos

#1
BLW-22110-00-00
REAR ARM COMP.
$764.74¢382 369
1
#2
BU2-22358-00-00
SEAL 1
$8.03¢4 013
1
#3
93317-22262-00
BEARING
$37.40¢18 699
1
#4
93106-22019-00
OIL SEAL,DD-TYPE
$10.23¢5 118
1
#5
30X-2219X-00-00
COVER
$15.65¢7 826
1
#6
93108-35004-00
OIL SEAL (35-41-8)
$13.78¢6 889
1
#7
90380-16158-00
BUSH,SOLID
$31.05¢15 525
1
#8
BW3-22141-00-00
SHAFT, PIVOT
$47.02¢23 512
1
#9
90201-164H4-00
WASHER,PLATE
$8.79¢4 393
1
#10
90185-16002-00
NUT, SELF-LOCKING
$16.56¢8 280
1
#11
1WS-2217A-00-00
ARM, RELAY
$103.70¢51 848
1
#12
90105-10498-00
BOLT, FLANGE
$13.35¢6 676
1
#13
90387-10132-00
COLLAR
$6.09¢3 048
1
#14
92902-10200-00
WASHER
$3.14¢1 570
1
#15
90185-10011-00
NUT, SELF-LOCKING
$4.30¢2 151
1
#16
93315-31758-00
BEARING
$38.04¢19 021
1
#17
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#18
90387-1012A-00
COLLAR
$19.48¢9 741
1
#19
1WS-22189-00-00
Boot, Rubber
$7.91¢3 956
1
#20
1WS-2217F-00-00
ROD, CONNECTING 1
$65.58¢32 792
1
#21
90101-12079-00
BOLT
$9.17¢4 583
1
#22
95602-12200-00
NUT, SELF-LOCKING
$4.19¢2 093
1
#23
93317-31771-00
BEARING
$34.84¢17 423
1
#24
93109-17071-00
OIL SEAL
$7.38¢3 691
1
#25
1WS-22184-00-00
Bush
$22.67¢11 333
1
#26
BLW-22151-00-00
SEAL, GUARD
$39.73¢19 866
1
#27
90387-06170-00
COLLAR
$6.83¢3 415
1
#28
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#29
90269-07007-00
RIVET
$3.68¢1 840
1
#30
BLW-21650-00-00
REAR FENDER COMP.
$53.72¢26 858
1
#31
90109-06346-00
BOLT
$3.68¢1 840
1
#32
90269-07007-00
RIVET
$3.68¢1 840
1
#33
BLW-2588F-00-00
HOLDER, BRAKE HOSE 5
$14.58¢7 291
1
#34
92017-06010-00
BOLT, BUTTON HEAD
$3.36¢1 679
1
#35
BLW-21668-10-00
LABEL, TIRE
$3.15¢1 576
1
