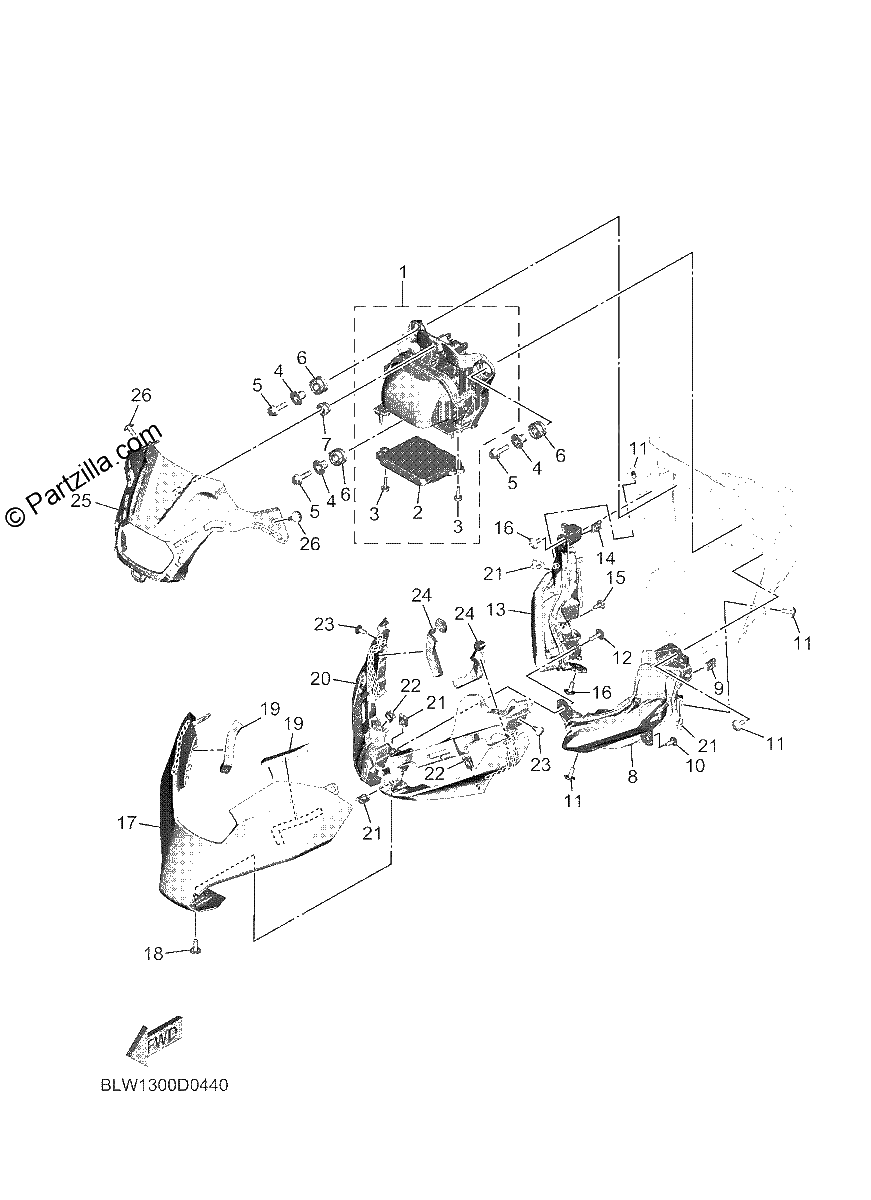

HEADLIGHT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
HEADLIGHT ASSY
$561.24¢280 619
#2
LIGHT CONTROL UNIT
$423.20¢211 600
#3
SCREW, SPECIAL
$2.14¢1 069
#4
Collar
$7.43¢3 713
#5
Bolt, Flange
$3.31¢1 656
#6
DAMPER
$7.63¢3 813
#7
GROMMET
$7.48¢3 738
#8
PILOT LIGHT ASSY 1
$223.61¢111 806
#9
NUT, SPRING
$1.25¢625
#10
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#11
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
#12
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#13
PILOT LIGHT ASSY 2
$223.61¢111 806
#14
NUT, SPRING
$1.25¢625
#15
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#16
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
#17
COVER, HEADLIGHT *{UR FOR MLNM4}*
$96.23¢48 113
#18
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#19
DAMPER, PLATE
$1.54¢769
#20
COVER, OUTER 1
$30.10¢15 050
#21
NUT, SPRING
$2.82¢1 412
#22
NUT, SPRING
$1.25¢625
#23
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
#24
DAMPER, PLATE
$1.54¢769
#25
COVER 1
$22.61¢11 306
#26
BOLT,HEX. SOCKET BUT
$5.91¢2 956
