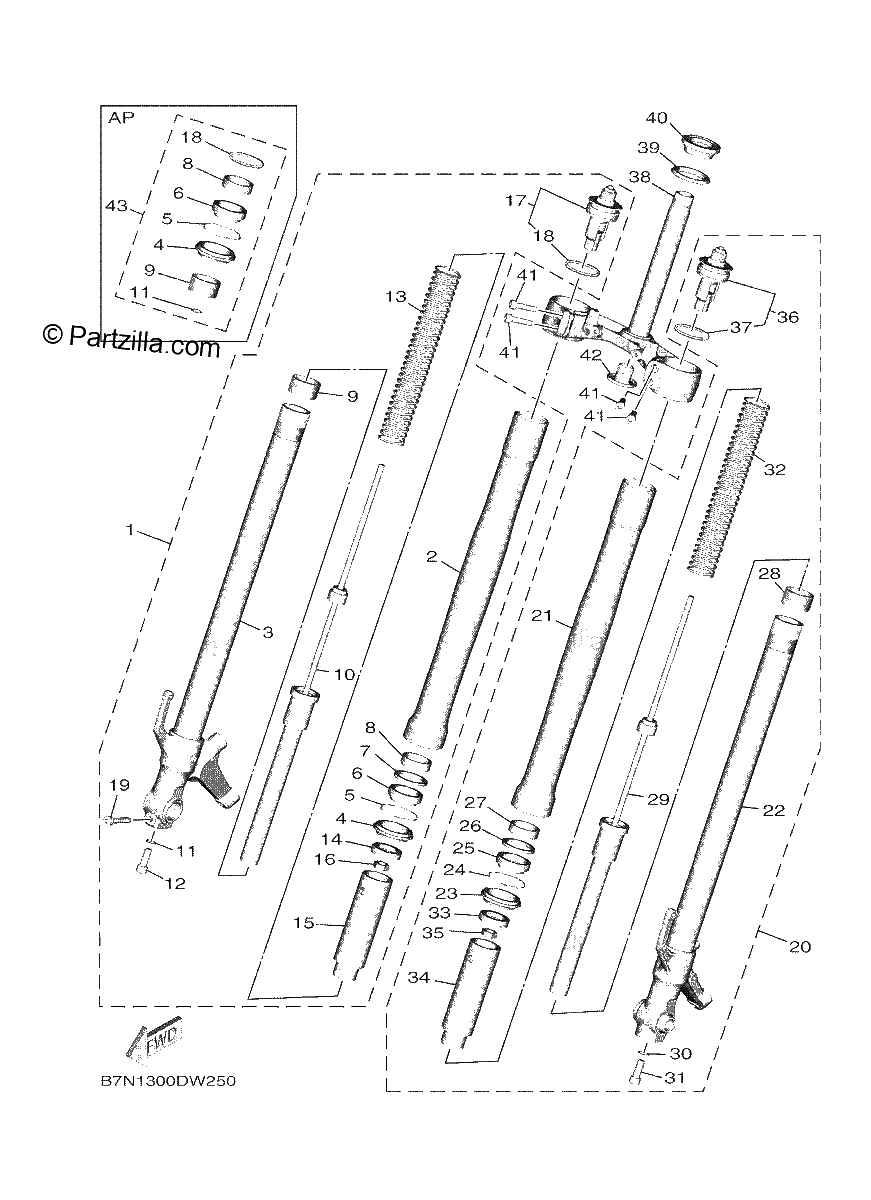

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (R.H)
$974.04¢487 019
#2
. TUBE, OUTER (LH)
$434.72¢217 361
#3
INNER TUBE COMP2
$426.56¢213 279
#4
SEAL, DUST
$21.36¢10 678
#5
RING, SNAP
$7.24¢3 622
#6
OIL SEAL
$26.59¢13 294
#7
WASHER, OIL SEAL
$24.18¢12 092
#8
METAL, SLIDE 1
$13.57¢6 785
#9
METAL, SLIDE
$22.33¢11 167
#10
CYLINDER COMP, FRONT FORK
$336.97¢168 486
#11
GASKET | (KYB)
$15.72¢7 860
#12
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#13
SPRING, FRONT FORK
$105.35¢52 676
#14
WASHER
$11.73¢5 865
#15
SPACER
$59.66¢29 831
#16
NUT
$7.28¢3 640
#17
BOLT, CAP
$331.11¢165 554
#18
O-RING
$4.51¢2 254
#19
BOLT (3JP)
$5.75¢2 875
#20
FRONT FORK ASSY (L.H)
$974.04¢487 019
#21
. TUBE, OUTER (LH)
$434.72¢217 361
#22
INNER TUBE COMP1
$425.52¢212 761
#23
SEAL, DUST
$21.36¢10 678
#24
RING, SNAP
$7.24¢3 622
#25
OIL SEAL
$26.59¢13 294
#26
WASHER, OIL SEAL
$24.18¢12 092
#27
METAL, SLIDE 1
$13.57¢6 785
#28
METAL, SLIDE
$22.33¢11 167
#29
CYLINDER COMP, FRONT FORK
$336.97¢168 486
#30
GASKET | (KYB)
$15.72¢7 860
#31
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#32
SPRING, FRONT FORK
$105.35¢52 676
#33
WASHER
$11.73¢5 865
#34
SPACER
$59.66¢29 831
#35
NUT
$7.28¢3 640
#36
BOLT, CAP
$337.50¢168 751
#37
O-RING
$4.51¢2 254
#38
UNDER BRACKET COMP.
$462.40¢231 202
#39
SEAL, STEERING
$23.48¢11 742
#40
BEARING
$66.99¢33 494
#41
BOLT
$6.75¢3 375
#42
COVER, UNDER 1
$13.48¢6 739
#43
FORK SEALS KIT *{AP}*
$64.27¢32 137
