FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

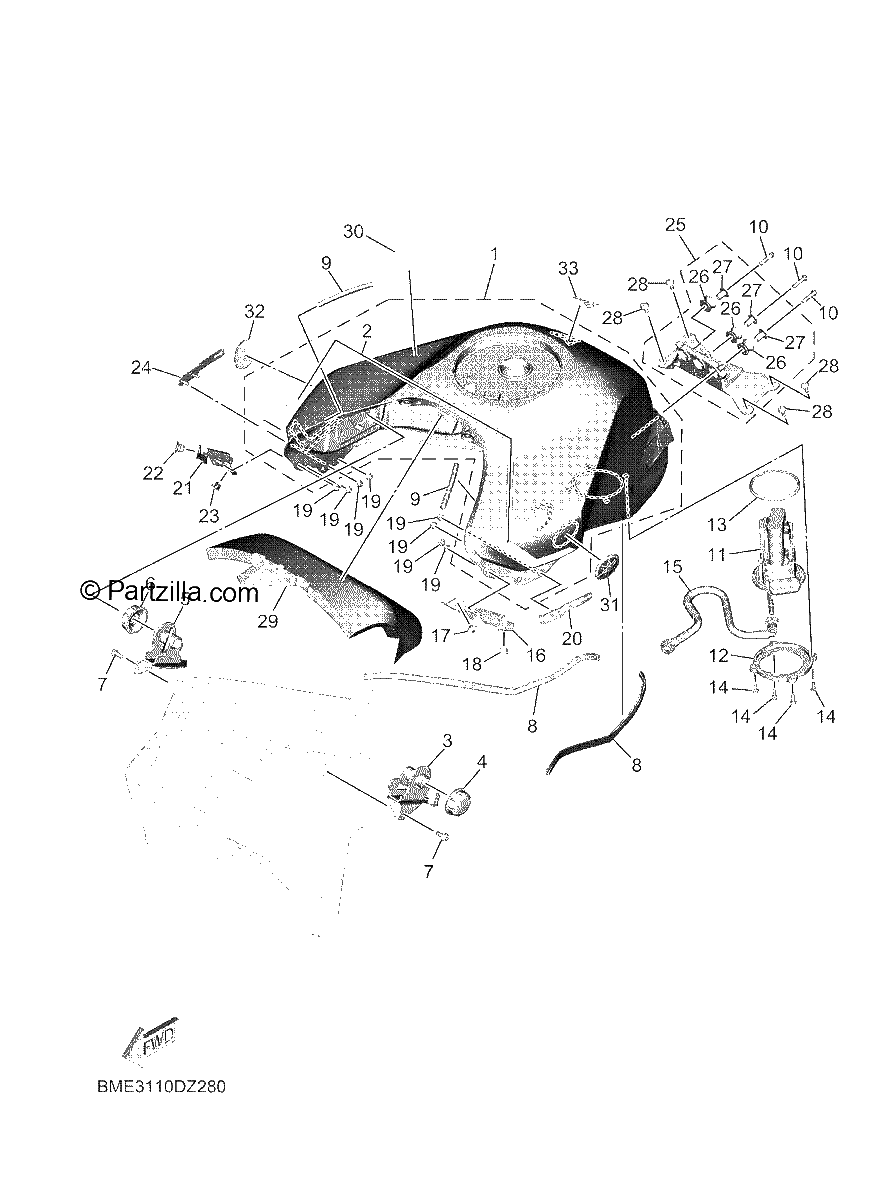

Diagrama de FUEL TANK

Repuestos

#1
BME-YG241-00-01
FUEL TANK COMP. *{UR FOR MDNM6}*
$999.99¢499 994
1
#2
BME-24240-20-00
GRAPHIC SET *{UR FOR MDNM6}*
$50.19¢25 094
1
#3
BME-24191-00-00
BRACKET, FUEL TANK 1
$78.05¢39 025
1
#4
BME-24181-00-00
DAMPER, LOCATING 1
$13.50¢6 750
1
#5
BME-24192-00-00
BRACKET, FUEL TANK 2
$96.58¢48 288
1
#6
BME-24181-00-00
DAMPER, LOCATING 1
$13.50¢6 750
1
#7
90111-06059-00
BOLT, HEX. SOCKET BUTTON
$4.65¢2 325
1
#8
BME-24188-00-00
MOLD, FUEL TANK
$16.10¢8 050
1
#9
BAG-24188-00-00
MOLD, FUEL TANK
$11.31¢5 656
1
#10
92012-06025-00
BOLT, BUTTON HEAD
$3.44¢1 719
1
#11
1RC-13907-20-00
FUEL PUMP COMP.
$566.73¢283 363
1
#12
1RC-24491-00-00
BRACKET, FUEL PUMP
$29.35¢14 675
1
#13
1RC-24486-00-00
O-RING
$29.22¢14 612
1
#14
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#15
B7N-13971-00-00
PIPE, FUEL 1
$65.14¢32 569
1
#16
BME-2411F-00-00
PLATE, FITTING
$25.76¢12 881
1
#17
90179-05525-00
NUT
$8.60¢4 300
1
#18
2RP-21719-00-00
GROMMET
$0.88¢438
1
#19
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#20
BME-2412J-00-00
STAY, RR. LH.
$20.06¢10 031
1
#21
BME-2411L-00-00
HOOK TANK FITTING
$25.63¢12 813
1
#22
90179-05525-00
NUT
$8.60¢4 300
1
#23
2RP-21719-00-00
GROMMET
$0.88¢438
1
#24
BME-2412K-00-00
STAY, RR. RH.
$18.89¢9 444
1
#25
BME-24105-00-00
TANK BRACKET ASSY 2
$159.05¢79 525
1
#26
BME-24339-00-00
GROMMET
$3.49¢1 744
1
#27
90387-06136-00
COLLAR
$6.76¢3 381
1
#28
90111-06029-00
BOLT, HEX. SOCKET BUTTON
$5.61¢2 806
1
#29
BME-2414H-00-00
DAMPER, PLATE 1
$25.04¢12 519
1
#30
29P-2816R-01-00
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
1
#31
BME-2413B-01-00
EMBLEM
$29.82¢14 913
1
#32
BME-2414B-01-00
EMBLEM
$29.82¢14 913
1
#33
B67-24161-01-00
EMBLEM 1
$13.20¢6 600
1
