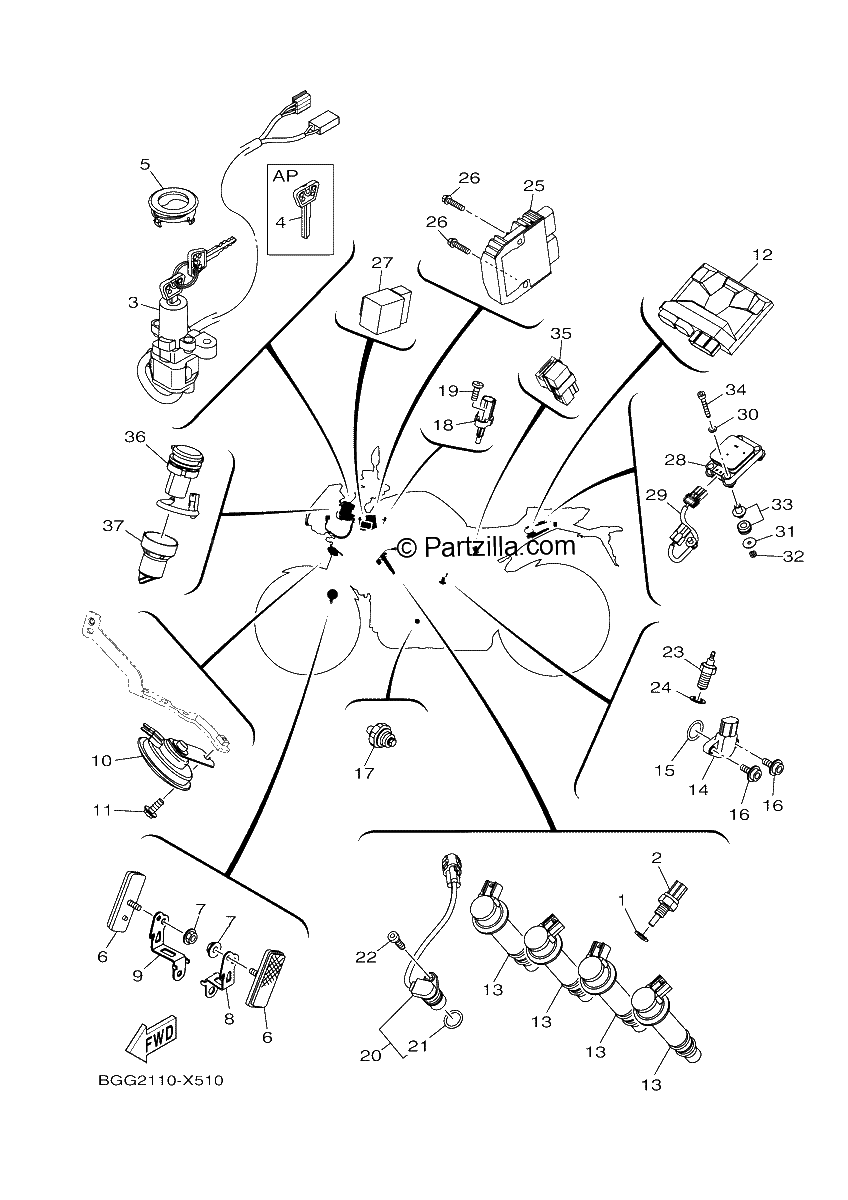

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GASKET
$7.08¢3 538
#2
THERMO UNIT
$34.40¢17 200
#3
MAIN SWITCH STEERING LOCK
$241.99¢120 994
#4
BLANK KEY | AP
$29.11¢14 556
#5
CAP, SWITCH
$14.98¢7 488
#6
REFLECTOR ASSY
$24.93¢12 463
#7
NUT,FLANGE (SILVER)
$0.91¢456
#8
BRACKET, REFLECTOR 1
$25.07¢12 538
#9
BRACKET, REFLECTOR 2
$29.34¢14 669
#10
HORN
$79.01¢39 506
#11
BOLT, FLANGE (replaces 95802-06012-00)
No Disponible
#12
ENGINE CONTROL UNIT ASSY
$1288.74¢644 369
#13
IGNITION COIL ASSY
$154.24¢77 119
#14
SENSOR, GEAR POSITION
$130.10¢65 050
#15
O-RING
$2.16¢1 081
#16
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#17
OIL PRESSURE SWITC
$72.81¢36 406
#18
SENSOR, AIR TEMPERATURE
$35.84¢17 919
#19
SCREW, BIND
$1.44¢719
#20
SENSOR, CAM POSITION
$184.90¢92 450
#21
O-RING
$5.15¢2 575
#22
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
#23
NEUTRAL SWITCH ASSY
$62.85¢31 425
#24
Gasket
$5.66¢2 831
#25
RECTIFIER & REGULATOR ASSY
$259.95¢129 975
#26
BOLT, FLANGE DEEP RECESS
$0.47¢238
#27
RELAY ASSY (G8R-30Y-V3)
$63.94¢31 969
#28
INERTIAL MEASURE, UNIT ASSY
$580.19¢290 094
#29
WIRE, SUB LEAD
$43.98¢21 988
#30
WASHER, PLATE
$1.20¢600
#31
WASHER, PLAIN
$1.55¢775
#32
Nut, U
$8.53¢4 263
#33
GROMMET AND COLLAR SET
$23.98¢11 988
#34
BOLT, HEXAGON SOCKET HEAD
$3.50¢1 750
#35
RELAY ASSY (replaces 5DM-81950-00-00)
$29.46¢14 731
#36
TERMINAL COMP.
$60.51¢30 256
#37
COVER, TERMINAL
$11.39¢5 694
