COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

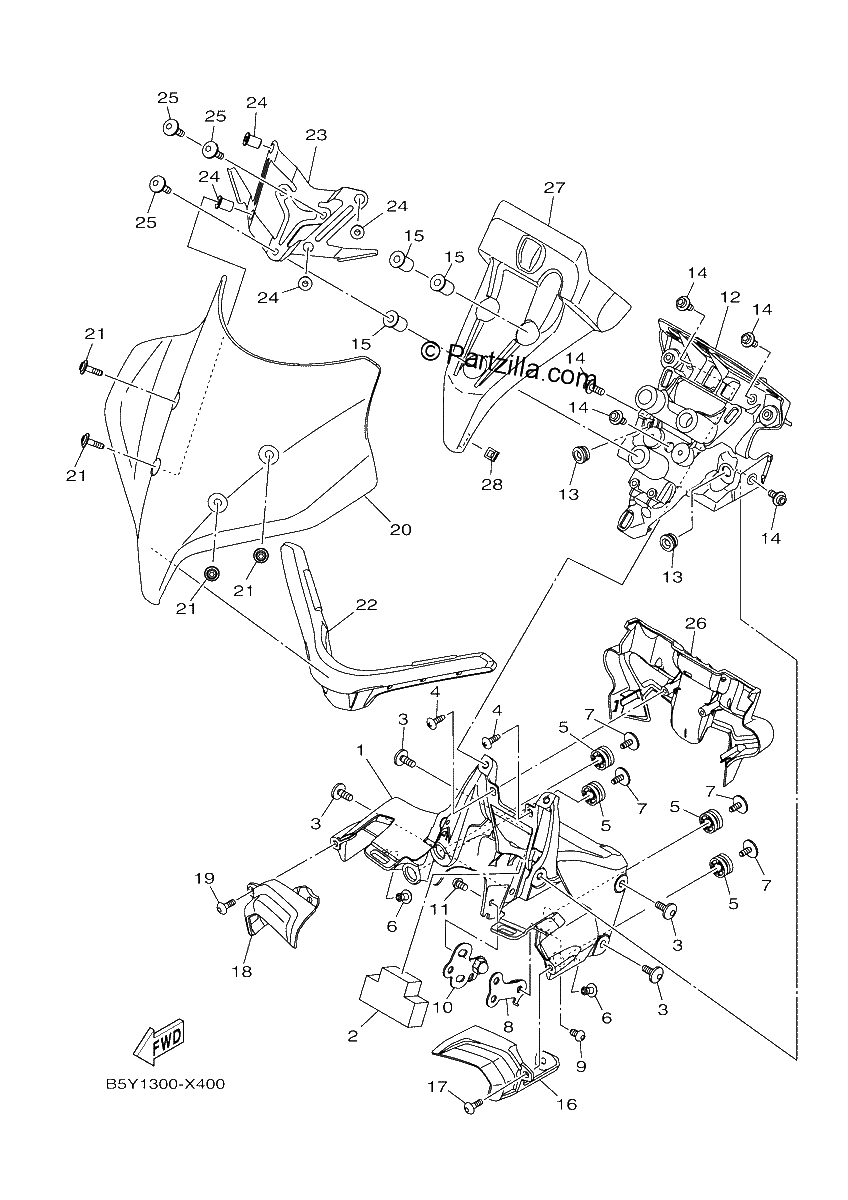

Diagrama de COWLING 1

Repuestos

#1
B5Y-28356-00-00
STAY 1
$629.77¢314 888
1
#2
B5Y-28371-00-00
DAMPER
$4.30¢2 150
1
#3
90111-06161-00
BOLT, HEX. SOCKET BUTTON
$3.17¢1 588
1
#4
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#5
4XV-83513-00-00
DAMPER
$7.63¢3 813
1
#6
90269-06019-00
RIVET
$3.46¢1 731
1
#7
90164-05014-00
SCREW, TAPPING
$7.48¢3 738
1
#8
B5Y-2836A-00-00
BRACKET 1
$10.85¢5 425
1
#9
90111-06016-00
BOLT, HEXAGON SOCKET BUTTON
$7.52¢3 762
1
#10
B5Y-2836E-00-00
BRACKET 2
$15.81¢7 906
1
#11
90111-06016-00
BOLT, HEXAGON SOCKET BUTTON
$7.52¢3 762
1
#12
B5Y-28357-00-00
STAY 2
$57.80¢28 900
1
#13
90480-10003-00
GROMMET
$7.48¢3 738
1
#14
90110-06122-00
BOLT, HEXAGON SOCKET HEAD
$6.19¢3 094
1
#15
90179-06072-00
NUT
$6.14¢3 069
1
#16
B5Y-28396-00-00
PLATE 1
$16.76¢8 381
1
#17
90111-05008-00
BOLT, HEXAGON SOCKET BUTTON
$2.71¢1 356
1
#18
B5Y-28397-00-00
PLATE 2
$17.82¢8 913
1
#19
90111-05008-00
BOLT, HEXAGON SOCKET BUTTON
$2.71¢1 356
1
#20
B5Y-23121-00-00
COVER, UPPER 1
$246.32¢123 163
1
#21
90111-05063-00
BOLT, HEXAGON SOCKET BUTTON
$3.04¢1 519
1
#22
B5Y-283M3-00-00
DEFLECTOR
$59.07¢29 537
1
#23
B5Y-2836F-00-00
BRACKET 3
$40.51¢20 256
1
#24
90179-05523-00
NUT
$6.78¢3 388
1
#25
90149-06104-00
SCREW
$4.56¢2 281
1
#26
B5Y-2836K-00-00
PANEL, INNER 1
$19.77¢9 888
1
#27
B5Y-83559-00-00
COVER, METER
$14.11¢7 056
1
#28
90468-040A0-00
CLIP
$7.43¢3 713
1
