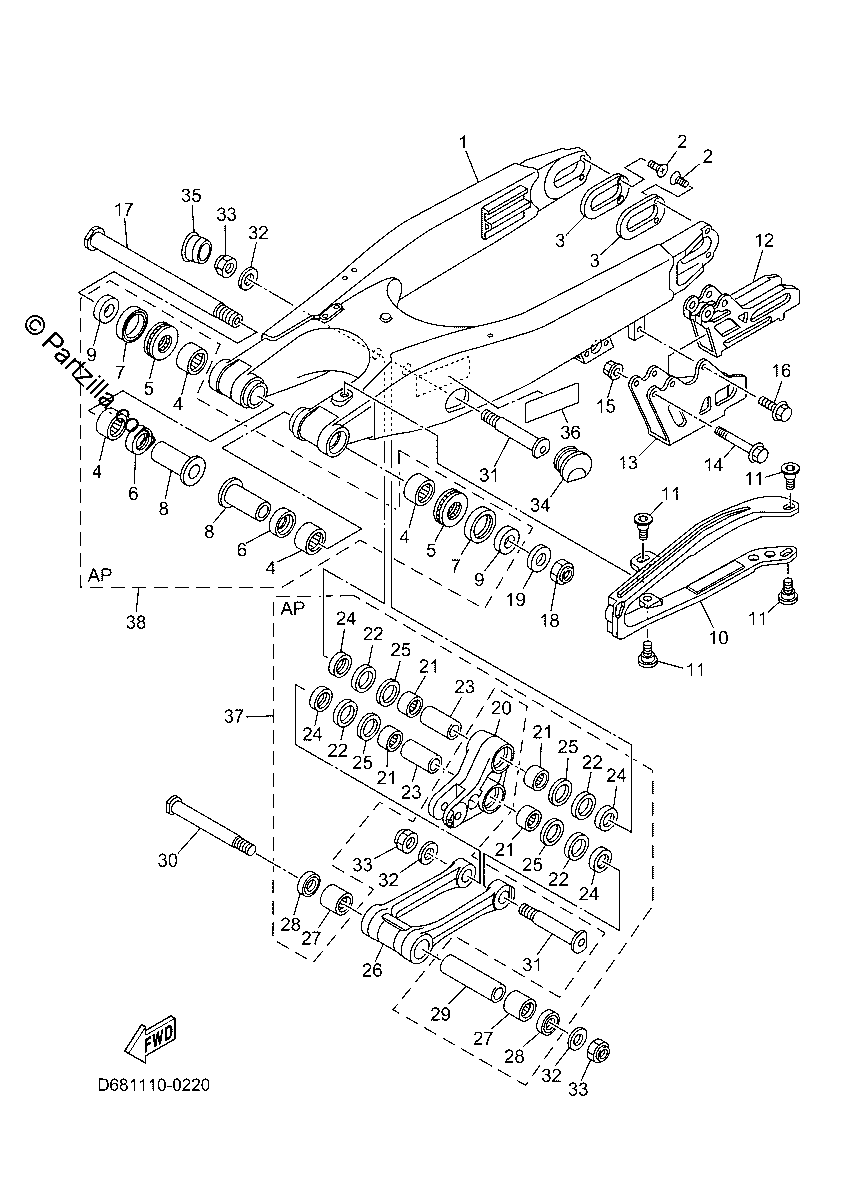

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP.
$1054.85¢527 425
#2
SCREW, COUNTERSUNK
$2.33¢1 167
#3
PATCH
$8.79¢4 393
#4
BEARING
$37.40¢18 699
#5
BEARING
$40.01¢20 004
#6
OIL SEAL
$10.21¢5 106
#7
OIL SEAL,SDO-TYPE
$10.55¢5 273
#8
Collar
$43.19¢21 597
#9
Collar
$24.36¢12 179
#10
SEAL, GUARD
$56.55¢28 273
#11
SCREW, 1
$6.30¢3 151
#12
SUPPORT, CHAIN
$66.11¢33 057
#13
COVER, THRUST 1
$31.31¢15 657
#14
BOLT, FLANGE DEEP RECESS
$0.45¢224
#15
Nut
$4.38¢2 191
#16
BOLT, FLANGE DEEP RECESS
$0.84¢420
#17
Shaft, Pivot
$60.11¢30 055
#18
NUT, SELF-LOCKING
$16.56¢8 280
#19
WASHER, plate
$7.35¢3 674
#20
ARM, RELAY
$239.83¢119 916
#21
BEARING
$26.13¢13 064
#22
O-Ring
$10.87¢5 434
#23
Collar
$34.12¢17 060
#24
WASHER
$15.00¢7 498
#25
WASHER, plate
$6.87¢3 433
#26
ROD, CONNECTING 1
$261.87¢130 933
#27
BEARING
$26.13¢13 064
#28
O-Ring
$10.48¢5 238
#29
Collar
$30.16¢15 082
#30
SHAFT 1
$29.03¢14 513
#31
SHAFT 2
$25.53¢12 765
#32
WASHER, plate
$5.84¢2 921
#33
NUT, SELF-LOCKING
$12.94¢6 469
#34
Cover
$3.99¢1 995
#35
COVER 2
$5.09¢2 547
#36
LABEL, TIRE
$4.02¢2 012
#37
SHOCK LINKAGE BEARING KIT
$188.51¢94 254
#38
SWING ARM PIVOT BEARING KIT
$132.58¢66 292
