CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

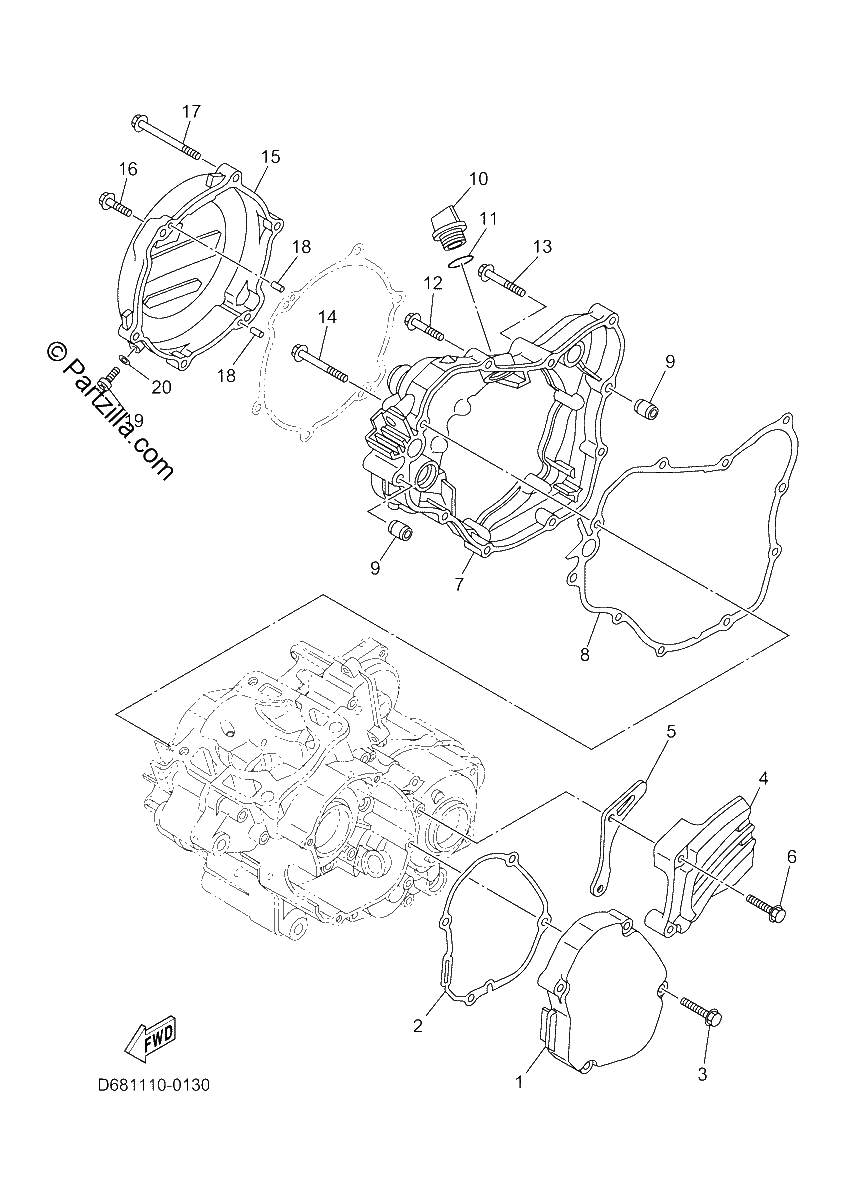

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1C3-15411-10-00
COVER, CRANKCASE 1
$41.91¢20 953
1
#2
1C3-15451-00-00
GASKET, CRANKCASE COVER 1
$14.95¢7 475
1
#3
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.78¢391
1
#4
1C3-15421-10-00
COVER, CRANKCASE 2
$64.68¢32 338
1
#5
1C3-17466-00-00
GUIDE, CHAIN
$11.86¢5 928
1
#6
90105-06233-00
BOLT, FLANGE
$3.15¢1 576
1
#7
B4X-15431-00-00
COVER, CRANKCASE 3
$137.77¢68 885
1
#8
1C3-15462-00-00
GASKET, CRANKCASE COVER 3
$16.53¢8 263
1
#9
99530-08016-00
PIN, DOWEL
$6.18¢3 088
1
#10
3Y1-15363-10-00
PLUG, OIL
$18.72¢9 361
1
#11
93210-19123-00
O-Ring
$7.58¢3 789
1
#12
95E32-06030-00
BOLT, FLANGE DEEP RECESS
$0.78¢391
1
#13
95E32-06040-00
BOLT, FLANGE DEEP RECESS
$0.44¢218
1
#14
95E32-06050-00
BOLT, FLANGE DEEP RECESS
$0.45¢224
1
#15
B4X-15415-00-00
COVER, 1
$94.74¢47 368
1
#16
95E32-06065-00
BOLT, FLANGE DEEP RECESS
$0.94¢471
1
#17
95E32-06025-00
BOLT, FLANGE DEEP RECESS
$0.54¢270
1
#18
93604-10011-00
PIN, DOWEL
$5.75¢2 875
1
#19
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#20
90430-06014-00
GASKET
$7.59¢3 795
1
