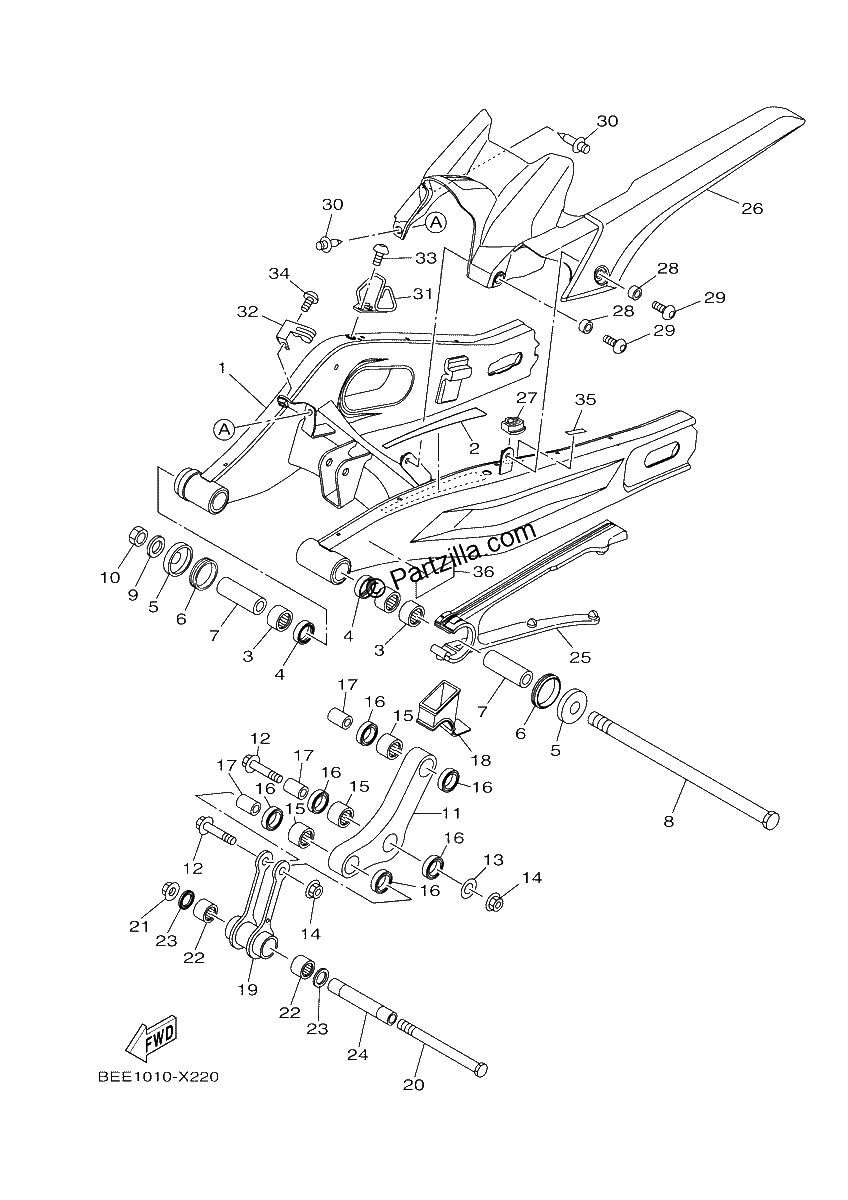

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP
$903.74¢451 869
#2
SEAL 1
$8.73¢4 363
#3
BEARING
$40.65¢20 325
#4
OIL SEAL,DD-TYPE
$11.13¢5 563
#5
COVER
$17.01¢8 506
#6
OIL SEAL (35-41-8)
$14.98¢7 488
#7
BUSH,SOLID
$33.75¢16 875
#8
Shaft, Pivot
$65.79¢32 894
#9
WASHER,PLATE
$9.55¢4 775
#10
NUT, SELF-LOCKING
$18.00¢9 000
#11
ARM, RELAY
$112.71¢56 356
#12
BOLT, WASHER BASED (replaces 90105-102A6-00)
$8.92¢4 462
#13
WASHER, PLATE
$7.34¢3 669
#14
NUT, U FLANGE
$2.73¢1 363
#15
BEARING
$41.35¢20 675
#16
OIL SEAL
$8.03¢4 013
#17
COLLAR
$21.18¢10 588
#18
Boot, Rubber
$8.60¢4 300
#19
ROD, CONNECTING 1
$71.29¢35 644
#20
bolt
$20.04¢10 019
#21
NUT, SELF-LOCKING
$4.55¢2 275
#22
BEARING
$37.88¢18 938
#23
OIL SEAL
$8.03¢4 013
#24
Bush
$24.64¢12 319
#25
SEAL, GUARD
$51.02¢25 513
#26
REAR FENDER COMP.
$61.86¢30 931
#27
DAMPER, CHAIN CASE
$4.71¢2 356
#28
Collar
$2.51¢1 256
#29
BOLT, HEX. SOCKET BUTTON
$7.46¢3 731
#30
RIVET
$4.00¢2 000
#31
HOLDER, BRAKE HOSE (replaces 1WS-25887-00-00)
$26.04¢13 019
#32
HOLDER, BRAKE HOSE
$35.48¢17 738
#33
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
#34
BOLT, BUTTON HEAD
$3.65¢1 825
#35
SEAL 2
$11.07¢5 538
#36
LABEL, TIRE
$2.10¢1 050
