CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

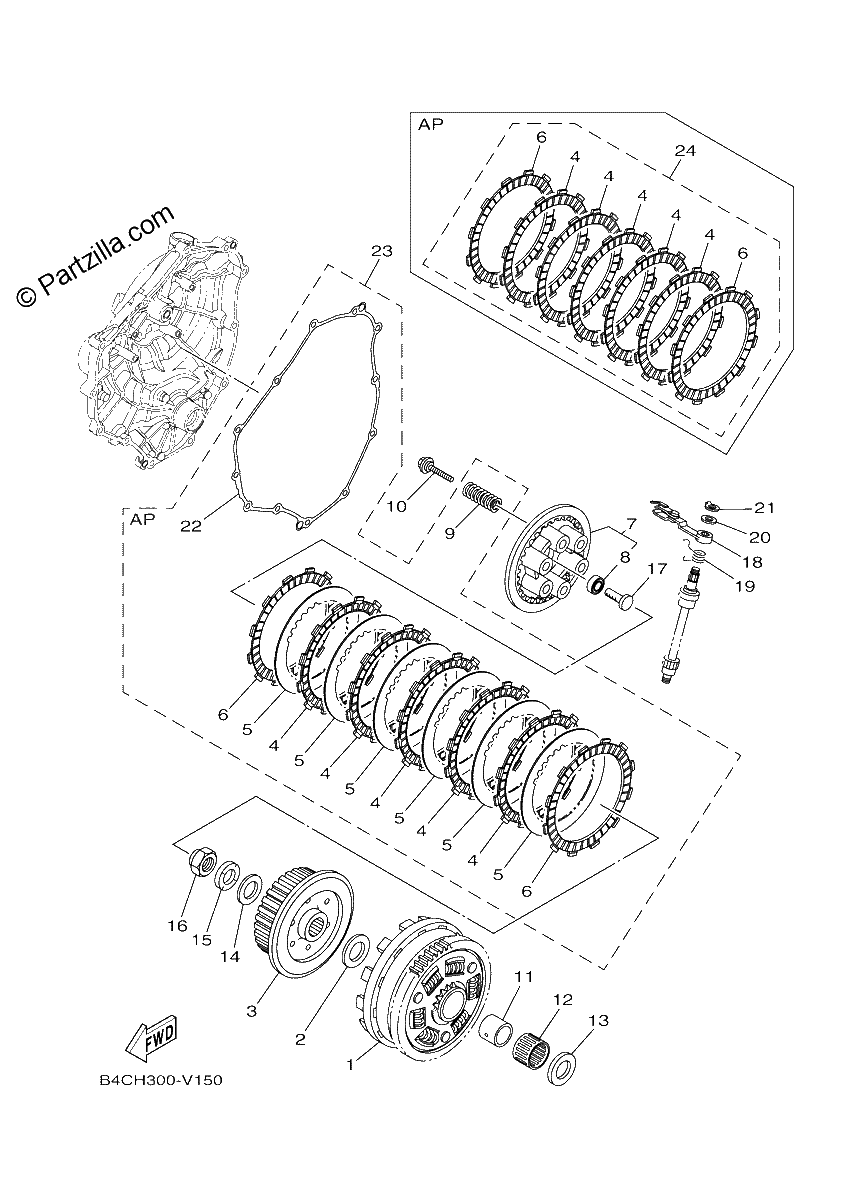

Diagrama de CLUTCH

Repuestos

#1
1WS-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$485.59¢242 794
1
#2
363-16154-00-00
PLATE, THRUST 1
$17.01¢8 506
1
#3
1WS-16371-01-00
BOSS, CLUTCH (replaces 1WS-16371-00-00)
$76.59¢38 294
1
#4
5VY-16321-00-00
PLATE, FRICTION
$32.34¢16 169
1
#5
5VY-16325-20-00
PLATE, CLUTCH 2
$12.61¢6 306
1
#6
5TG-16321-00-00
PLATE, FRICTION
$15.51¢7 756
1
#7
1WS-16350-00-00
PRESSURE PLATE ASSY
$80.26¢40 131
1
#8
93306-00105-00
BEARING
$30.26¢15 131
1
#9
90501-230E4-00
SPRING, COMPRESSION
$9.91¢4 956
1
#10
90119-06263-00
BOLT, WITH WASHER
$7.43¢3 713
1
#11
1WS-16181-00-00
SPACER 1
$54.38¢27 188
1
#12
93310-332C2-00
BEARING
$18.65¢9 325
1
#13
363-16154-00-00
PLATE, THRUST 1
$17.01¢8 506
1
#14
90201-20030-00
WASHER, PLATE
$7.31¢3 656
1
#15
90208-20001-00
WASHER, CONICAL SPRING
$17.49¢8 744
1
#16
90179-20022-00
NUT
$15.14¢7 569
1
#17
1WS-16356-00-00
ROD, PUSH 1
$61.08¢30 538
1
#18
1WS-16340-01-00
PUSH LEVER ASSY
$29.22¢14 612
1
#19
90508-18132-00
SPRING, TORSION
$7.46¢3 731
1
#20
90201-10029-00
WASHER, PLATE
$7.48¢3 738
1
#21
99009-10400-00
CIRCLIP
$4.65¢2 325
1
#22
1WS-15461-00-00
Gasket, Crankcase
$36.88¢18 438
1
#23
BTK-W001G-00-00
CLUTCH PLATE KIT
$133.85¢66 925
1
#24
B4C-W001M-00-00
Friction Plate Kit
$96.45¢48 225
1
