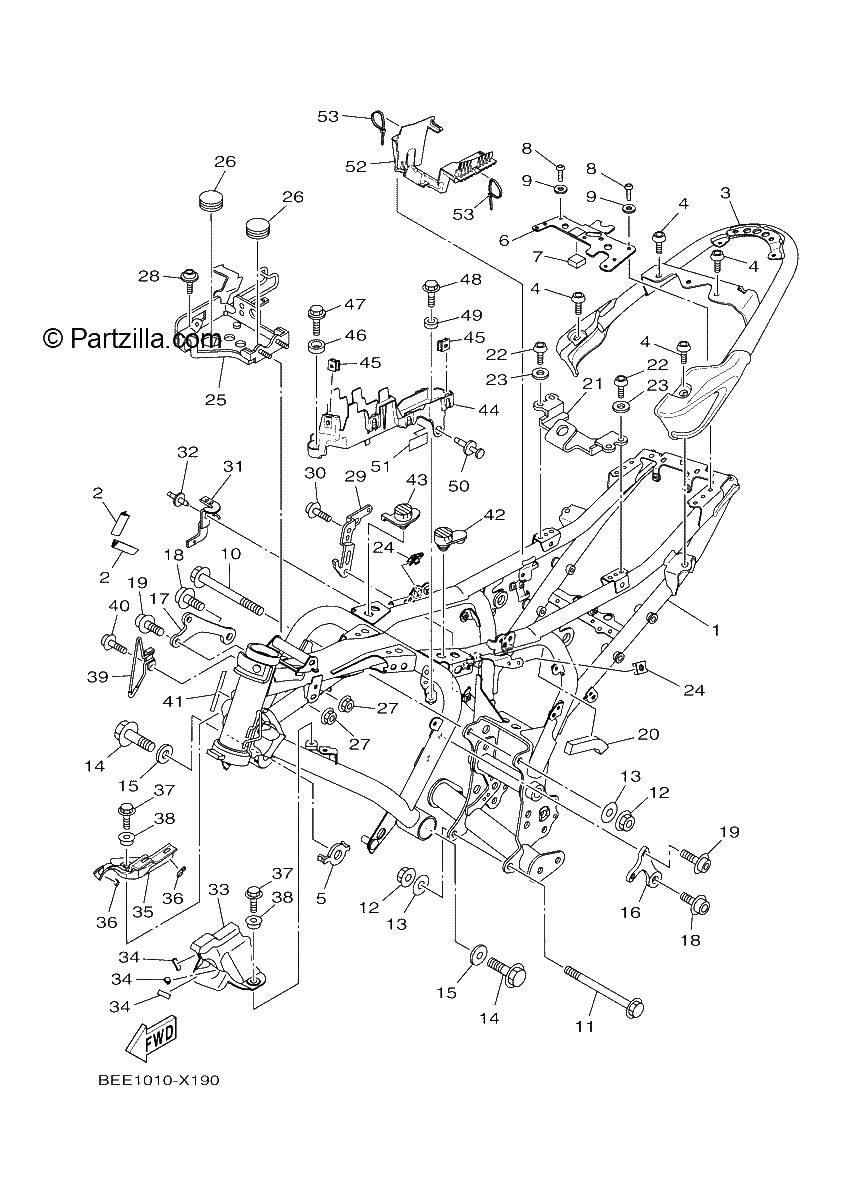

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRAME COMP. *{MBL2}*
$1802.04¢901 019
#2
MOLE, SIDE COVER 1
$23.17¢11 586
#3
REAR FRAME COMP
$1333.99¢666 994
#4
BOLT, HEXAGON SOCKET HEAD
$3.20¢1 598
#5
PLATE 1
$17.34¢8 671
#6
BRACKET, SEAT
$54.73¢27 364
#7
DAMPER, locating 2
$3.43¢1 713
#8
BOLT, BUTTON HEAD
$3.06¢1 529
#9
WASHER, PLATE
$7.77¢3 887
#10
Bolt, Flange
$6.29¢3 145
#11
BOLT, FLANGE
$14.88¢7 440
#12
NUT
$9.63¢4 813
#13
WASHER, plate
$3.91¢1 955
#14
BOLT, FLANGE
$13.01¢6 503
#15
WASHER, PLATE
$3.32¢1 662
#16
STAY, ENGINE 1
$17.46¢8 728
#17
STAY, ENGINE 2
$17.46¢8 728
#18
BOLT, HEXAGON SOCKET HEAD
$4.52¢2 260
#19
BOLT, HEXAGON SOCKET HEAD
$3.20¢1 598
#20
DAMPER, PLATE
$6.87¢3 433
#21
BRACKET, SEAT FITTING
$50.02¢25 013
#22
BOLT, BUTTON HEAD
$3.06¢1 529
#23
WASHER, PLATE
$7.77¢3 887
#24
Nut, Spring
$34.17¢17 083
#25
Bracket
$81.07¢40 537
#26
GROMMET
$10.44¢5 221
#27
NUT, FLANGE
$2.24¢1 121
#28
BOLT, HEX. SOCKET BUTTON
$4.81¢2 403
#29
BRACKET 8
$15.36¢7 682
#30
BOLT, BUTTON HEAD
$3.36¢1 679
#31
BRACKET 2
$9.95¢4 974
#32
RIVET
$7.59¢3 795
#33
COVER 4
$6.64¢3 318
#34
PLATE, DAMPER
$7.23¢3 617
#35
COVER 5
$5.34¢2 668
#36
PLATE, DAMPER
$7.23¢3 617
#37
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#38
COLLAR
$7.24¢3 622
#39
GUIDE, CABLE
$16.01¢8 004
#40
BOLT,FLANGE(4MY)
$2.71¢1 357
#41
PROTECTOR, FUEL TANK
$12.62¢6 308
#42
Stopper
$17.11¢8 556
#43
Stopper
$14.31¢7 153
#44
HOLDER, RELAY
$48.97¢24 483
#45
Nut, Spring
$34.17¢17 083
#46
COLLAR
$3.42¢1 708
#47
BOLT, WITH WASHER
$6.16¢3 082
#48
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#49
COLLAR
$5.93¢2 967
#50
RIVET
$6.75¢3 375
#51
DAMPER, HEADLIGHT STAY
$1.66¢828
#52
SEAL
$53.45¢26 726
#53
BAND
$7.68¢3 841
