CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

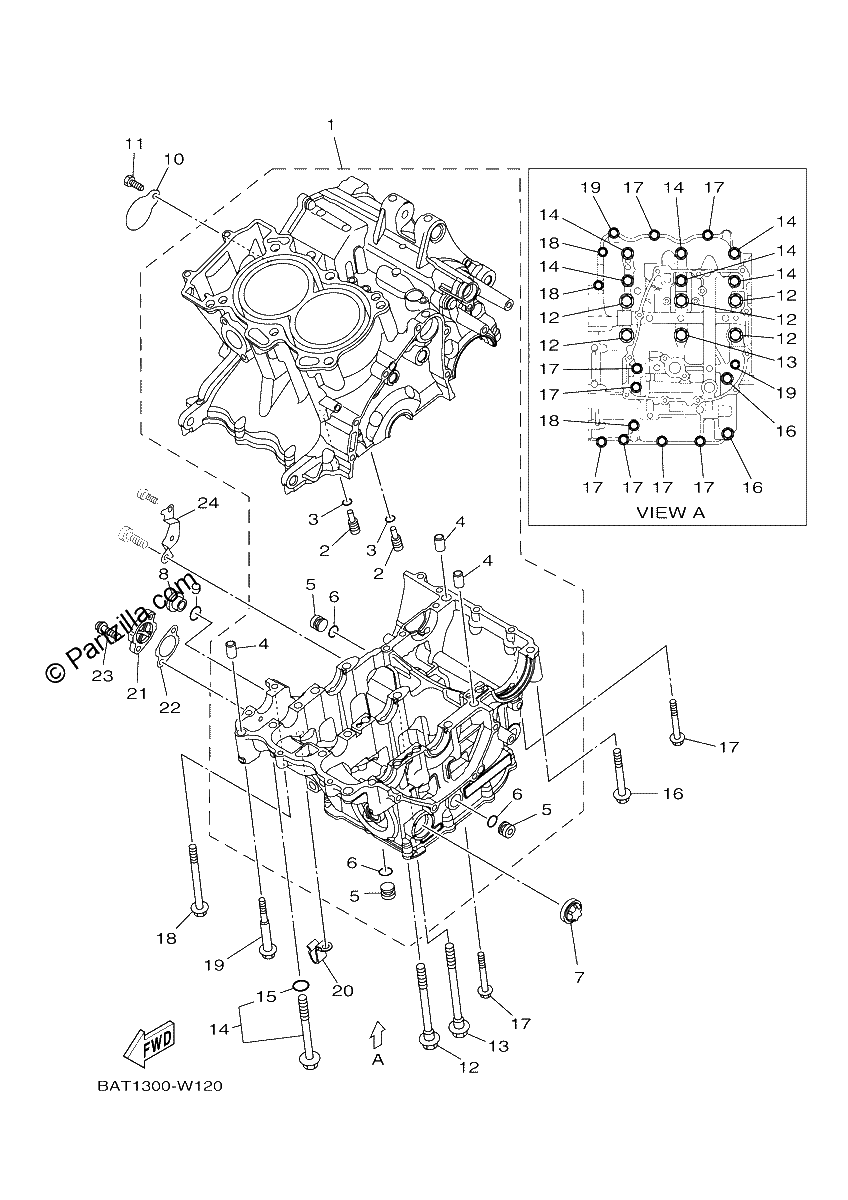

Diagrama de CRANKCASE

Repuestos

#1
1WS-15100-08-00
Crankcase Assy
$3387.25¢1 693 625
1
#2
5EB-15155-00-00
NOZZLE 3
$14.65¢7 325
1
#3
93210-04092-00
O-RING
$3.44¢1 719
1
#4
99530-10114-00
PIN,DOWEL
$2.71¢1 356
1
#5
90338-16262-00
PLUG
$13.77¢6 887
1
#6
93210-12790-00
O-RING
$6.85¢3 425
1
#7
2H7-15361-00-00
GAUGE, LEVEL
$102.81¢51 406
1
#8
36Y-15189-01-00
PLUG
$14.34¢7 169
1
#9
93210-16325-00
O-RING
$6.99¢3 494
1
#10
1WS-15189-00-00
PLUG
$7.86¢3 931
1
#11
97012-06014-00
BOLT
$7.43¢3 713
1
#12
90119-09014-00
BOLT, WITH WASHER
$12.75¢6 375
1
#13
90119-09018-00
BOLT, WITH WASHER
$31.27¢15 638
1
#14
1WS-15156-00-00
BOLT, CRANKCASE JO
$7.57¢3 787
1
#15
93210-07540-00
O-RING
$6.88¢3 438
1
#16
95814-08065-00
BOLT,FLANGE (replaces 95812-08065-00)
$4.20¢2 100
1
#17
95817-06040-00
BOLT,FLANGE (replaces 95812-06040-00)
$5.41¢2 706
1
#18
95812-06060-00
Bolt, Flange
$3.19¢1 594
1
#19
90109-06100-00
BOLT
$9.06¢4 531
1
#20
90462-08102-00
CLAMP
$8.03¢4 013
1
#21
1WS-15416-00-00
COVER, OIL PUMP
$25.60¢12 800
1
#22
1WS-15456-01-00
GASKET, OIL PUMP COVER 1
$7.16¢3 581
1
#23
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
1
#24
1WS-15128-00-00
HOLDER
$6.63¢3 313
1
