FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

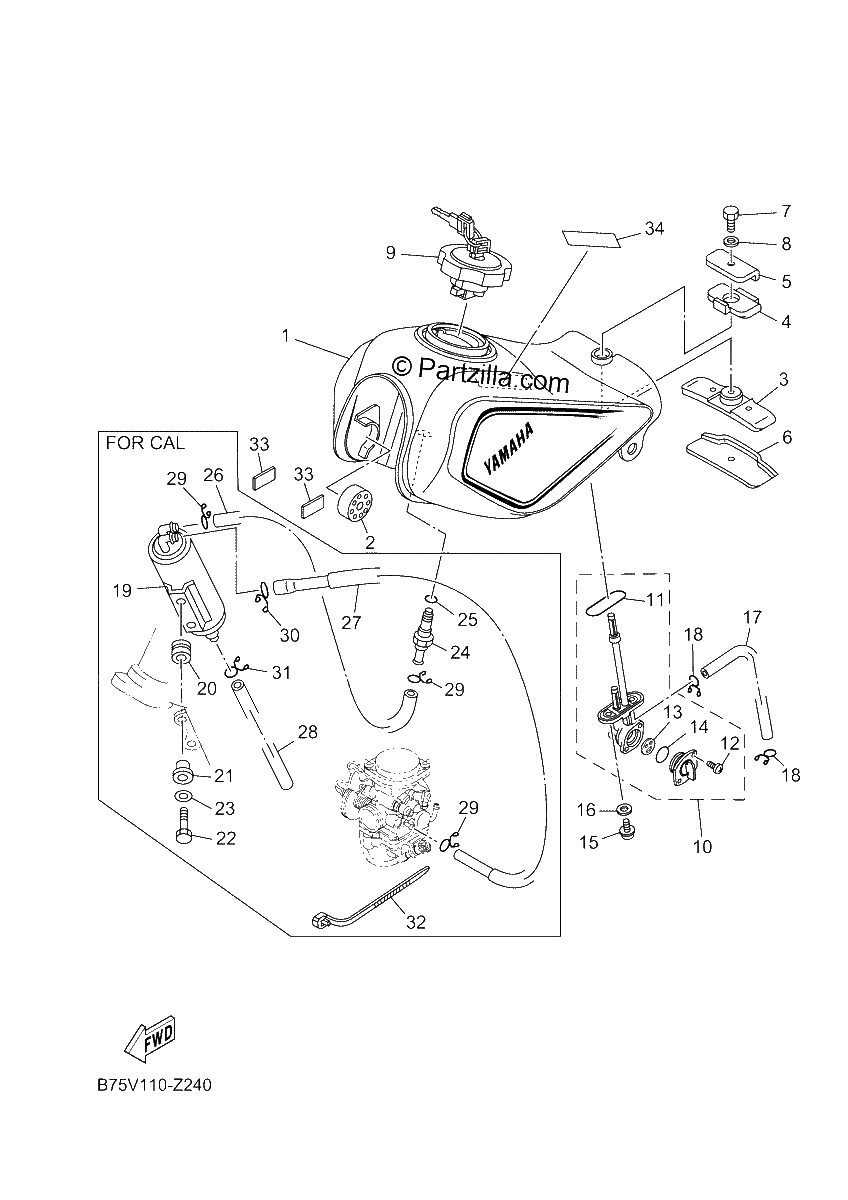

Diagrama de FUEL TANK

Repuestos

#1
5RS-YG241-10-01
FUEL TANK COMP
$1137.34¢568 669
1
#2
4L0-24181-00-00
DAMPER, LOCATING 1
$9.56¢4 778
1
#3
30X-24182-01-00
DAMPER, LOCATING 2
$20.84¢10 419
1
#4
30X-24183-01-00
DAMPER, LOCATING 3
$6.88¢3 439
1
#5
30X-24186-01-00
WASHER, SPECIAL
$7.38¢3 691
1
#6
30X-24187-00-00
WASHER, SPECIAL
$24.46¢12 230
1
#7
97007-06012-00
BOLT
$2.86¢1 432
1
#8
92907-06600-00
WASHER, PLATE (6TA)
$0.89¢443
1
#9
11H-24602-10-00
CAP ASSY | FOR U49
$108.48¢54 240
1
#10
23F-24500-20-00
FUEL COCK ASSY 1
$40.51¢20 257
1
#11
4X8-24512-10-00
GASKET
$12.02¢6 009
1
#12
98507-03008-00
SCREW, PAN HEAD
$3.00¢1 501
1
#13
3AC-24523-00-00
VALVE PACKING
$12.71¢6 354
1
#14
3AJ-24534-10-00
SEAL, COCK
$7.75¢3 875
1
#15
90149-06011-00
SCREW,SPEC'L SHAPE
$1.79¢897
1
#16
90202-05193-00
WASHER, PLATE
$1.45¢724
1
#17
90445-10041-00
HOSE (L110)
$4.13¢2 064
1
#18
90467-09006-00
CLIP, SCISSOR | FOR CAL
$2.74¢1 368
1
#33
2JX-24141-00-00
PROTECTOR, FUEL TANK
$6.99¢3 496
1
#34
1TP-2118K-A2-00
. LABEL, CAUTION
$6.59¢3 295
1
