REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

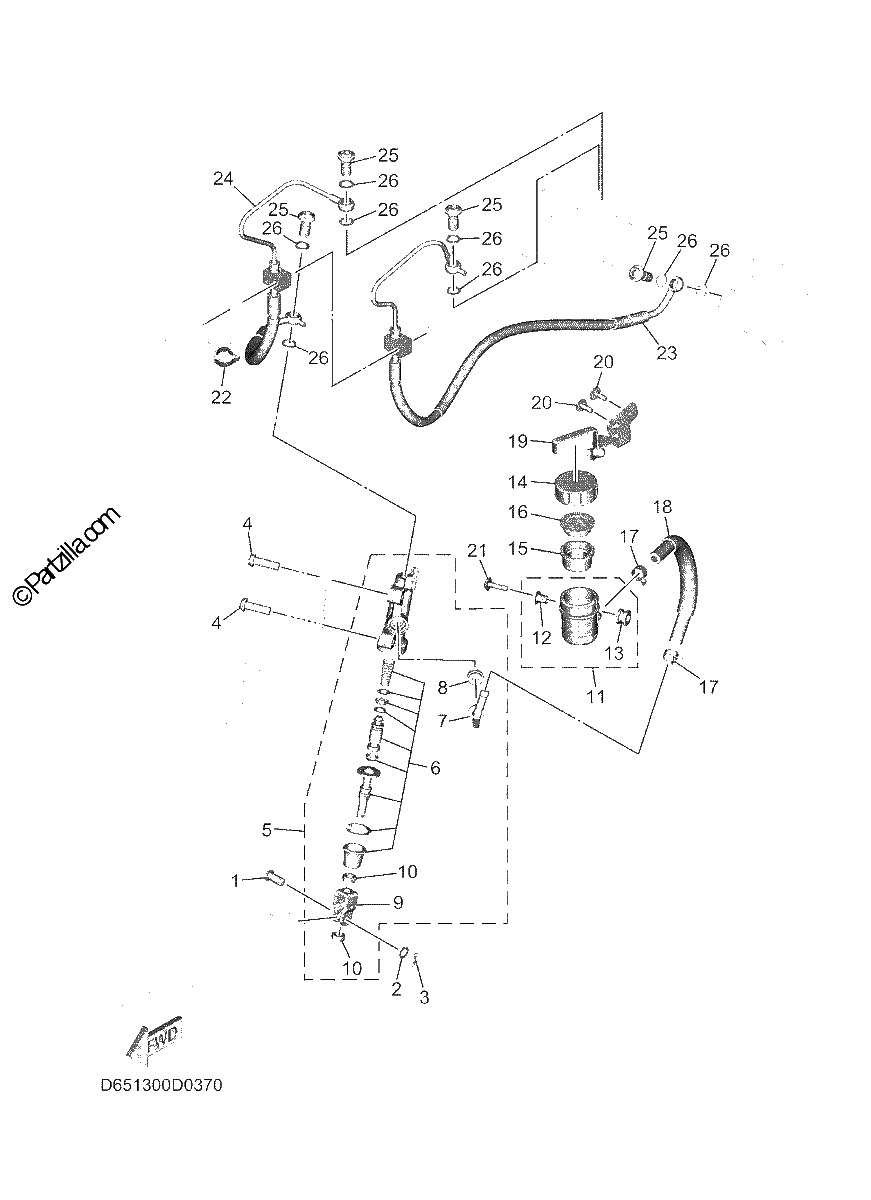

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
90240-08005-00
PIN, CLEVIS
$6.75¢3 375
1
#2
90201-08066-00
WASHER, PLATE
$6.95¢3 473
1
#3
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#4
92017-08025-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#5
BEA-2583V-01-00
RR. MASTER CYLINDER ASSY.
$139.75¢69 874
1
#6
56P-25808-50-00
CYLINDER KIT, MASTER
$92.79¢46 397
1
#7
2D1-2582A-01-00
JOINT
$112.06¢56 028
1
#8
4BP-2585F-01-00
O-RING
$10.48¢5 238
1
#9
4BP-27222-02-00
JOINT
$29.55¢14 777
1
#10
90170-08010-00
NUT
$6.89¢3 444
1
#11
BAM-25894-50-00
TANK, RESERVOIR
$63.69¢31 844
1
#12
90387-05028-00
COLLAR
$6.39¢3 197
1
#13
2C0-26326-00-00
GROMMET
$5.91¢2 956
1
#14
2C0-25852-00-00
CAP, RESERVOIR
$6.29¢3 145
1
#15
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$21.50¢10 753
1
#16
2VN-25855-00-00
BUSH,DIAPHRAGM
$10.43¢5 215
1
#17
90467-12085-00
CLIP
$7.99¢3 996
1
#18
BEA-25895-50-00
HOSE, RESERVOIR
$6.53¢3 266
1
#19
BMG-21228-00-00
BRACKET, RESERVE TANK
$26.73¢13 363
1
#20
90111-05062-00
BOLT, HEXAGON SOCKET BUTTON
$2.74¢1 368
1
#21
90111-05065-00
BOLT, HEXAGON SOCKET BUTTON
$1.69¢845
1
#22
90464-16003-00
CLAMP
$6.87¢3 433
1
#23
BMG-2581K-00-00
HOSE, BRAKE 5
$103.05¢51 526
1
#24
D65-2581J-00-00
HOSE, BRAKE 4
$98.92¢49 461
1
#25
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#26
90430-10005-00
GASKET
$7.72¢3 858
1
