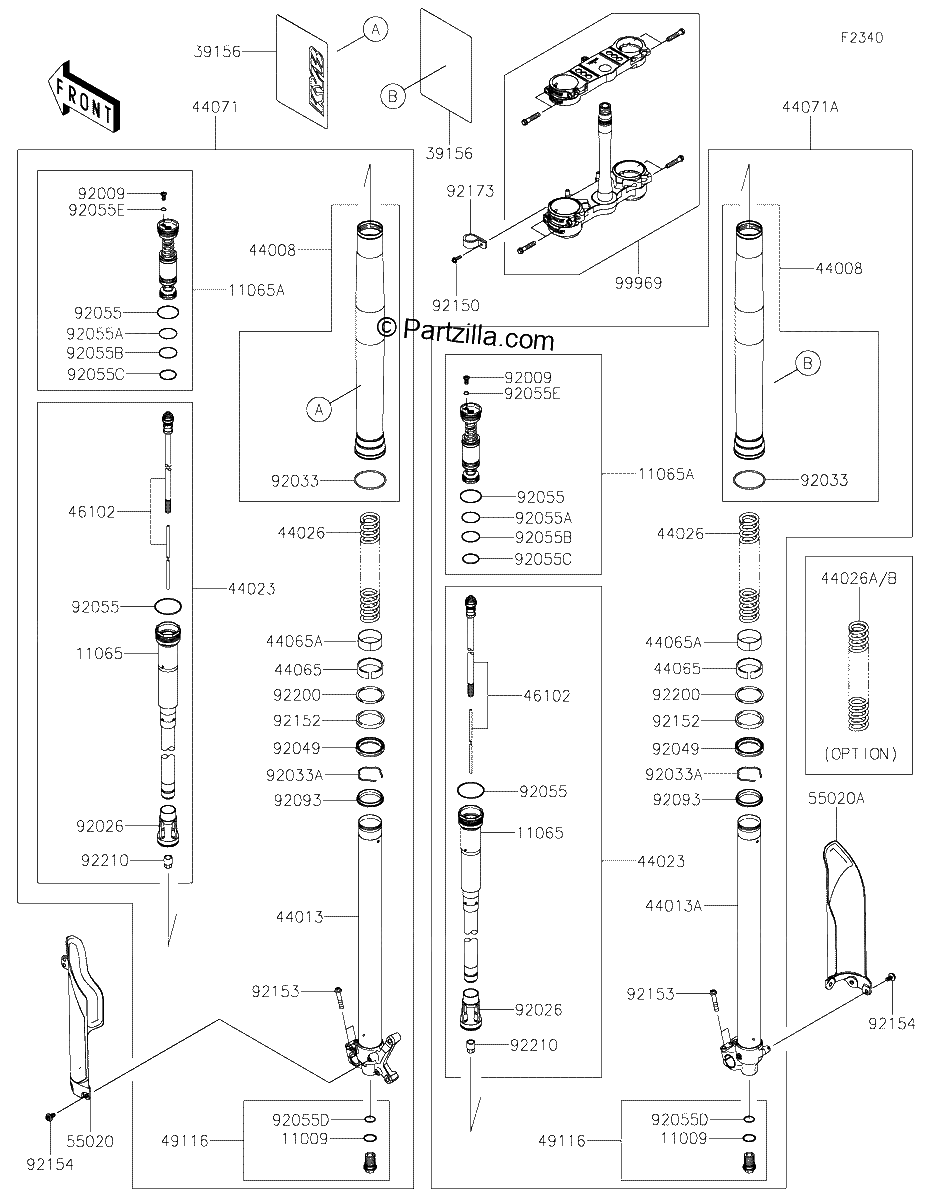

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#11009
GASKET,FORK CYLINDER BOLT
$5.55¢2 777
#11065
CAP,CYLINDER COMP
$426.94¢213 469
#11065A
CAP,FORK
$472.32¢236 158
#39156
PAD,PROTECTION
$47.97¢23 983
#44008
PIPE-FORK OUTER
$878.19¢439 093
#44013
PIPE-FORK INNER,LH
$1143.70¢571 849
#44013A
PIPE-FORK INNER,RH
$1143.70¢571 849
#44023
CYLINDER SET FORK
$1094.22¢547 113
#44026
SPRING-FRONT FORK
$137.53¢68 764
#44026A
SPRING FRONT FORK,K=4.9N/MM
$110.68¢55 338
#44026A
SPRING-FRONT FORK,K=5.1N/MM *{(OPTION)}*
$110.68¢55 338
#44065
BUSHING-FRONT FORK
$21.70¢10 850
#44065A
BUSHING-FRONT FORK
$22.67¢11 333
#44071
DAMPER-ASSY,FORK,LH
$2934.93¢1 467 463
#44071A
DAMPER-ASSY,FORK,RH
$2934.93¢1 467 463
#46102
ROD,PISTON
$613.43¢306 716
#49116
VALVE-ASSY
$277.05¢138 523
#55020
GUARD,FORK,Left Hand,EBONY
$61.61¢30 803
#55020A
GUARD,FORK,RH,EBONY
$58.62¢29 308
#92009
SCREW
$7.05¢3 525
#92026
SPACER
$79.41¢39 704
#92033A
RING SNAP
$6.18¢3 088
#92033
RING SNAP
$4.42¢2 208
#92049
SEAL OIL
$25.41¢12 708
#92055B
RING O
$5.32¢2 662
#92055A
RING O
$5.32¢2 662
#92055C
RING-O
$5.13¢2 565
#92055D
RING O
$1.30¢650
#92055E
RING O,2.8X6.6X1.9
$3.97¢1 984
#92055
RING O
$5.32¢2 662
#92093
SEAL,FORK OUTER TUBE
$20.13¢10 063
#92150
BOLT,5X16
$4.76¢2 380
#92152
COLLAR
$7.70¢3 852
#92153
BOLT,8X40
$5.08¢2 541
#92154
BOLT
$5.39¢2 697
#92173
CLAMP
$16.08¢8 038
#92200
WASHER
$12.62¢6 308
#92210
NUT
$23.20¢11 598
#99969
FORK CLAMP,XTRIG
$759.48¢379 742
