FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

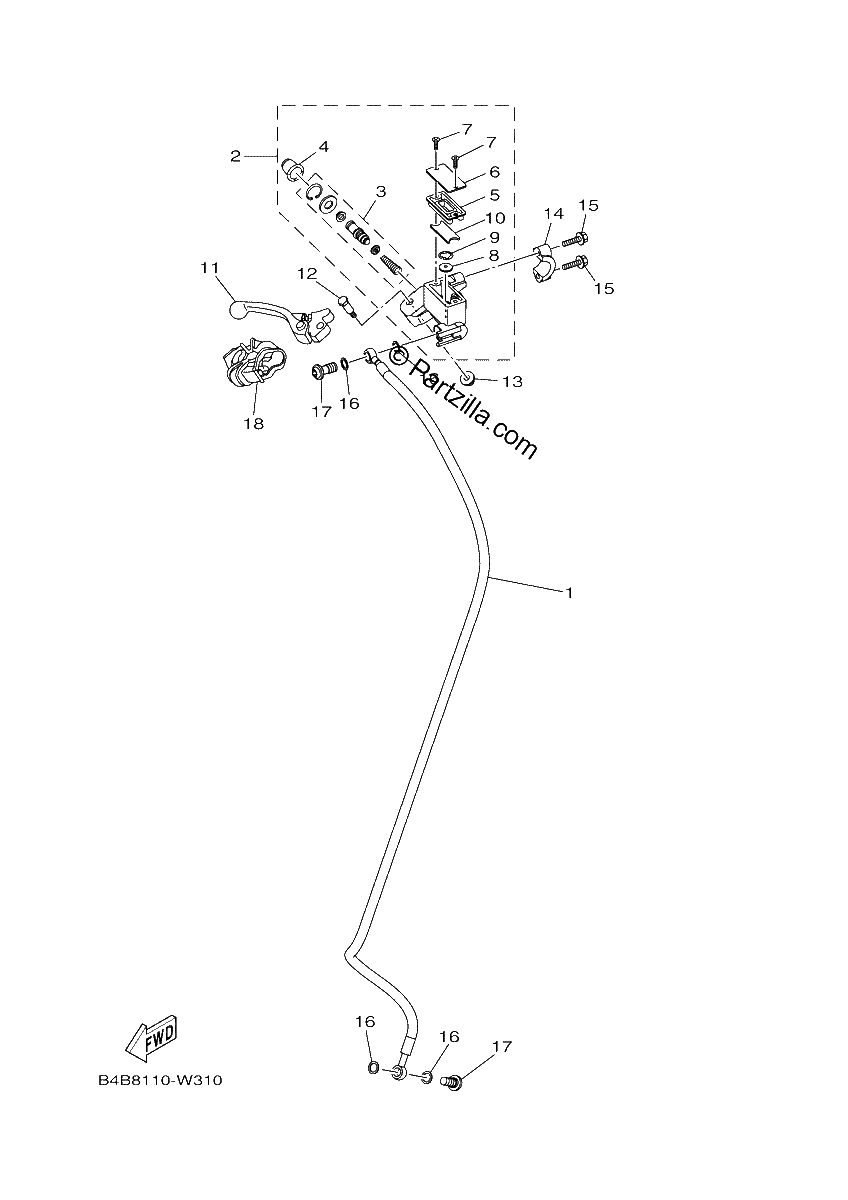

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
B4B-25872-00-00
HOSE, BRAKE 1
$121.83¢60 915
1
#2
5XE-W2587-01-00
MASTER CYLINDER SUB ASSY
$179.37¢89 683
1
#3
5NY-W0041-01-00
CYLINDER KIT, MASTER
$55.11¢27 554
1
#4
5NY-25868-01-00
. .BOOT, MASTER CYLINDER
$4.70¢2 352
1
#5
5XE-25854-00-00
DIAPHRAGM, RESERVOIR
$14.17¢7 084
1
#6
5MV-25852-01-00
CAP, RESERVOIR
$11.76¢5 882
1
#7
98707-04012-00
SCREW, FLAT HEAD
$1.58¢788
1
#8
5CG-25715-00-00
SEPARATOR ASSY
$11.59¢5 796
1
#9
5CG-2585G-00-00
CIRCLIP
$5.40¢2 702
1
#10
5XE-25853-00-00
FLOAT, RESERVOIR
$7.04¢3 519
1
#11
5MV-83922-00-00
LEVER 2
$43.45¢21 723
1
#12
5MV-2589F-00-00
BOLT, LEVER
$5.90¢2 950
1
#13
95701-06500-00
NUT, WITH WASHER
$2.16¢1 081
1
#14
5MV-25867-00-00
BRACKET, MASTER CYLINDER
$19.43¢9 717
1
#15
5MV-25833-00-00
BOLT, FITTING
$6.30¢3 151
1
#16
90430-10005-00
GASKET
$7.72¢3 858
1
#17
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#18
5NY-26372-00-00
COVER, HANDLE LEVER 1
$18.75¢9 373
1
