ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

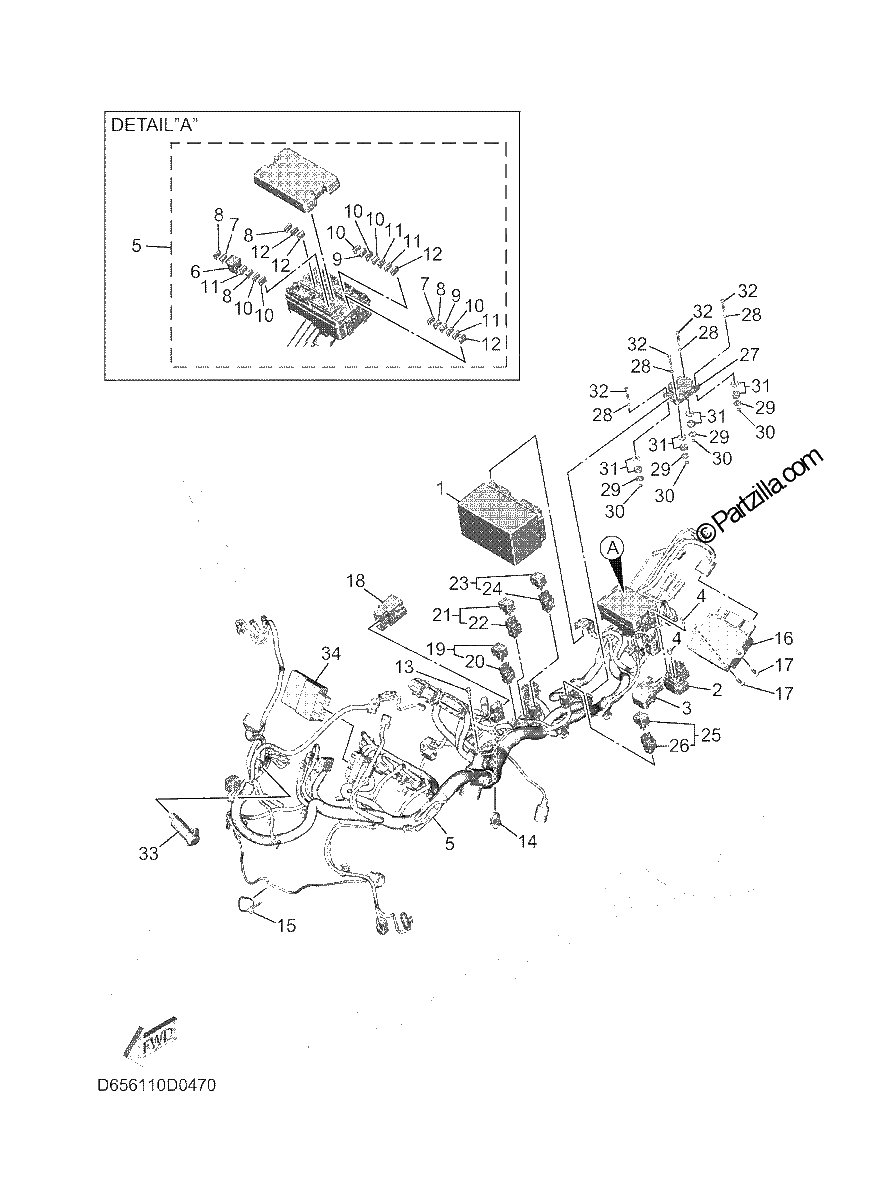

Diagrama de ELECTRICAL 1

Repuestos

#1
5VY-82100-02-00
BATTERY ASSY (YUASA YTZ10S)
$323.56¢161 781
1
#2
B7N-81940-00-00
STARTER RELAY ASSY
$62.16¢31 081
1
#3
5SL-82119-30-00
COVER, LEAD WIRE
$5.06¢2 531
1
#4
90105-06230-00
BOLT, FLANGE
$0.45¢225
1
#5
D65-82590-60-00
WIRE HARNESS ASSY
$907.49¢453 744
1
#6
BMG-82151-B0-00
FUSE (50A)
$4.30¢2 150
1
#7
BMG-82151-60-00
FUSE (30A)
$4.30¢2 150
1
#8
BMG-82151-90-00
FUSE (15A)
$4.30¢2 150
1
#9
BMG-82151-30-00
FUSE (10A)
$4.30¢2 150
1
#10
1CB-82151-10-00
FUSE (75A-LP BL)
$3.86¢1 931
1
#11
1CB-82151-00-00
FUSE (5A-LP BL)
$3.88¢1 938
1
#12
BMG-82151-80-00
FUSE (2A)
$4.30¢2 150
1
#13
91312-06016-00
BOLT
$5.84¢2 919
1
#14
90464-25009-00
CLAMP
$7.56¢3 781
1
#15
90464-15195-00
CLAMP
$3.30¢1 650
1
#16
BME-81963-01-00
GENERATOR CONTROL UNIT
$470.49¢235 244
1
#17
95D37-06016-00
BOLT, FLANGE DEEP RECESS
$1.39¢694
1
#18
5VK-81950-43-00
RELAY ASSY (G8R-30Y-W4)
$70.70¢35 350
1
#19
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#20
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#21
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#22
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#23
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#24
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#25
1TP-81950-00-00
RELAY ASSY (1TP-00)
$15.59¢7 794
1
#26
5EA-81952-00-00
HOLDER, RELAY
$8.03¢4 013
1
#27
D65-8593A-00-00
INERTIAL MEASURE, UNIT ASSY
$580.85¢290 425
1
#28
92990-04600-00
WASHER, PLATE
$1.20¢600
1
#29
90201-04034-00
WASHER, PLATE
$1.39¢694
1
#30
95617-04100-00
NUT, U
$8.53¢4 263
1
#31
B7N-W8A8D-00-00
GROMMET AND COLLAR SET
$23.98¢11 988
1
#32
91317-04030-00
BOLT,HEX.SOCKET HEAD
$4.35¢2 175
1
#33
BME-821E0-00-00
USB ASSY
$175.32¢87 663
1
#34
BMG-85903-10-00
BODY CONT,MODULE ASSY
$455.41¢227 706
1
