SHIFT SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

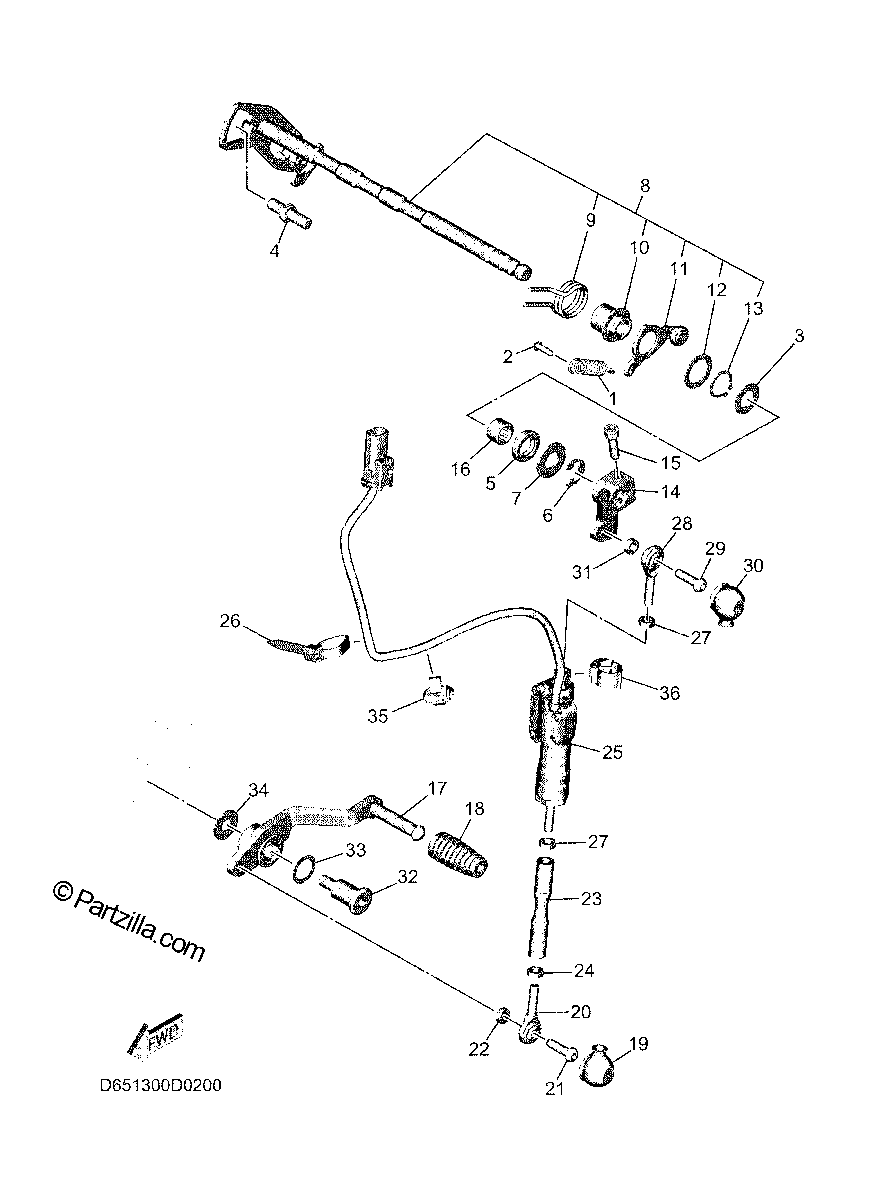

Diagrama de SHIFT SHAFT

Repuestos

#1
B7N-18143-00-00
SPRING
$2.21¢1 104
1
#2
132-16346-00-00
HOOK, SPRING
$9.56¢4 778
1
#3
90201-127E1-00
WASHER, PLATE
$4.05¢2 024
1
#4
5VK-18127-00-00
STOPPER, SCREW
$11.94¢5 969
1
#5
93102-12106-00
OIL SEAL,SD-TYPE
$11.10¢5 549
1
#6
99002-10600-00
CIRCLIP
$6.88¢3 439
1
#7
90201-12575-00
WASHER, PLATE
$6.75¢3 375
1
#8
B7N-18101-00-00
SHIFT SHAFT ASSY
$101.98¢50 991
1
#9
90508-32141-00
SPRING, TORSION
$7.58¢3 789
1
#10
B7N-18175-00-00
. SPACER
$18.07¢9 033
1
#11
B7N-18140-00-00
. STOPPER LEVER ASSY
$25.75¢12 874
1
#12
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#13
99009-17400-00
Circlip
$4.28¢2 139
1
#14
B7N-18112-00-00
ARM, SHIFT
$44.75¢22 373
1
#15
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#16
93317-11295-00
BEARING
$43.91¢21 954
1
#17
BEA-18111-00-00
PEDAL, SHIFT
$63.50¢31 751
1
#18
5YT-18113-00-00
COVER, SHIFT PEDAL
$7.04¢3 519
1
#19
4XV-18154-00-00
COVER, DUST
$7.38¢3 691
1
#20
5LV-18117-00-00
JOINT, ROD 2
$32.18¢16 089
1
#21
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#22
90387-06322-00
Collar
$6.64¢3 318
1
#23
B7N-18115-10-00
ROD, SHIFT
$32.55¢16 273
1
#24
90170-06228-00
NUT (COUNTER CLOCKWISE)
$7.19¢3 594
1
#25
BME-82480-00-00
SHIFT SENSOR ASSY.
$351.16¢175 582
1
#26
90464-13077-00
CLAMP
$7.30¢3 651
1
#27
95380-06700-00
NUT
$6.75¢3 375
1
#28
5LV-18116-00-00
JOINT, ROD 1
$54.81¢27 404
1
#29
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#30
4XV-18154-00-00
COVER, DUST
$7.38¢3 691
1
#31
90387-06322-00
Collar
$6.64¢3 318
1
#32
4C8-27434-10-00
BOLT
$21.36¢10 678
1
#33
90206-14086-00
WASHER, WAVE
$6.76¢3 381
1
#34
90201-08103-00
WASHER, PLATE
$6.21¢3 105
1
#35
90464-25009-00
CLAMP
$6.96¢3 479
1
#36
90464-14010-00
CLAMP
$3.52¢1 759
1
