REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

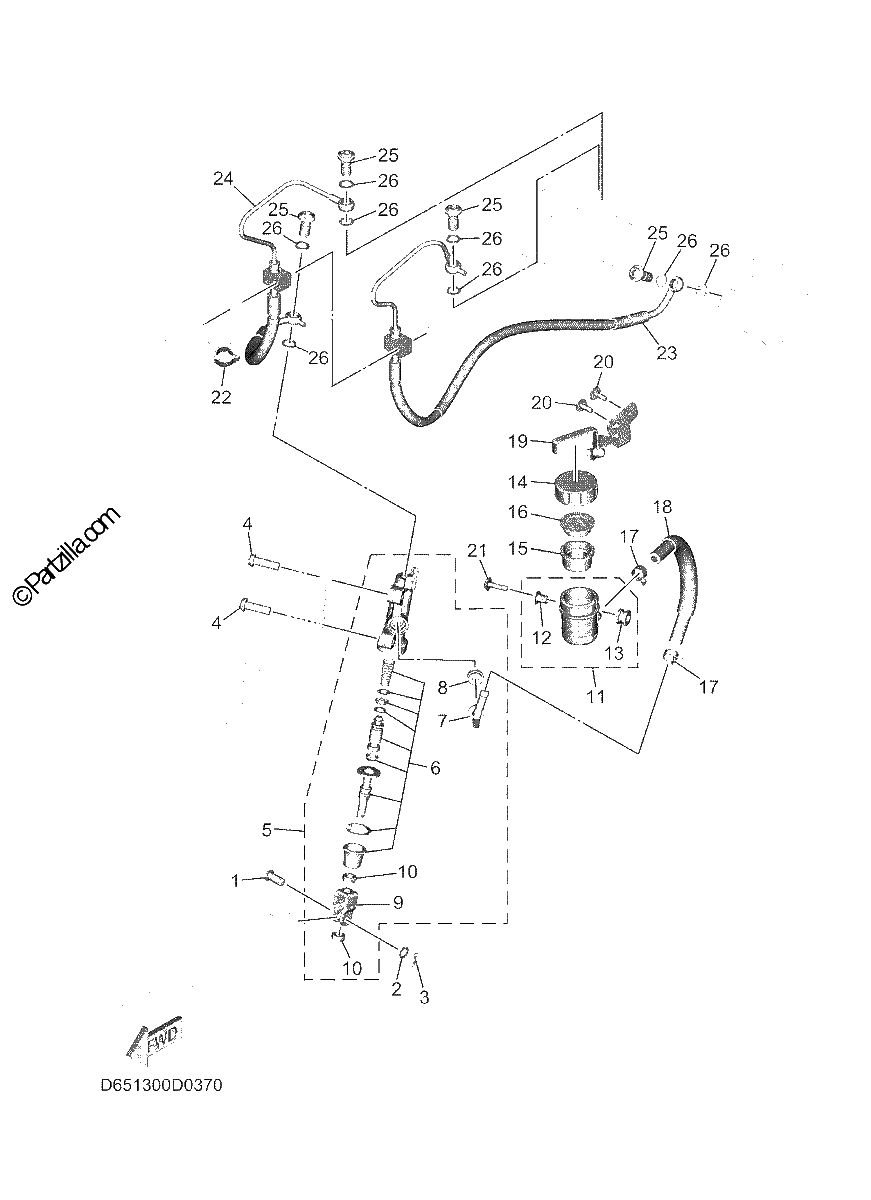

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
90240-08005-00
PIN, CLEVIS
$7.34¢3 669
1
#2
90201-08066-00
WASHER, PLATE
$7.55¢3 775
1
#3
91490-20015-00
PIN. COTTER
$2.20¢1 100
1
#4
92017-08025-00
BOLT, BUTTON HEAD
$7.34¢3 669
1
#5
BEA-2583V-01-00
RR. MASTER CYLINDER ASSY.
$151.90¢75 950
1
#6
56P-25808-50-00
CYLINDER KIT, MASTER
$100.86¢50 431
1
#7
2D1-2582A-01-00
JOINT
$121.80¢60 900
1
#8
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#9
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#10
90170-08010-00
NUT
$7.49¢3 744
1
#11
BAM-25894-50-00
TANK, RESERVOIR
$69.23¢34 613
1
#12
90387-05028-00
COLLAR
$6.95¢3 475
1
#13
2C0-26326-00-00
GROMMET
$6.42¢3 213
1
#14
2C0-25852-00-00
CAP, RESERVOIR
$6.84¢3 419
1
#15
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$23.38¢11 688
1
#16
2VN-25855-00-00
BUSH,DIAPHRAGM
$11.34¢5 669
1
#17
90467-12085-00
CLIP
$8.69¢4 344
1
#18
BEA-25895-50-00
HOSE, RESERVOIR
$7.10¢3 550
1
#19
BMG-21228-00-00
BRACKET, RESERVE TANK
$29.05¢14 525
1
#20
90111-05062-00
BOLT, HEXAGON SOCKET BUTTON
$2.97¢1 487
1
#21
90111-05065-00
BOLT, HEXAGON SOCKET BUTTON
$1.84¢919
1
#22
90464-16003-00
CLAMP
$7.46¢3 731
1
#23
BMG-2581K-00-00
HOSE, BRAKE 5
$112.01¢56 006
1
#24
D65-2581J-00-00
HOSE, BRAKE 4
$107.52¢53 762
1
#25
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#26
90430-10005-00
GASKET
$8.39¢4 194
1
