ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

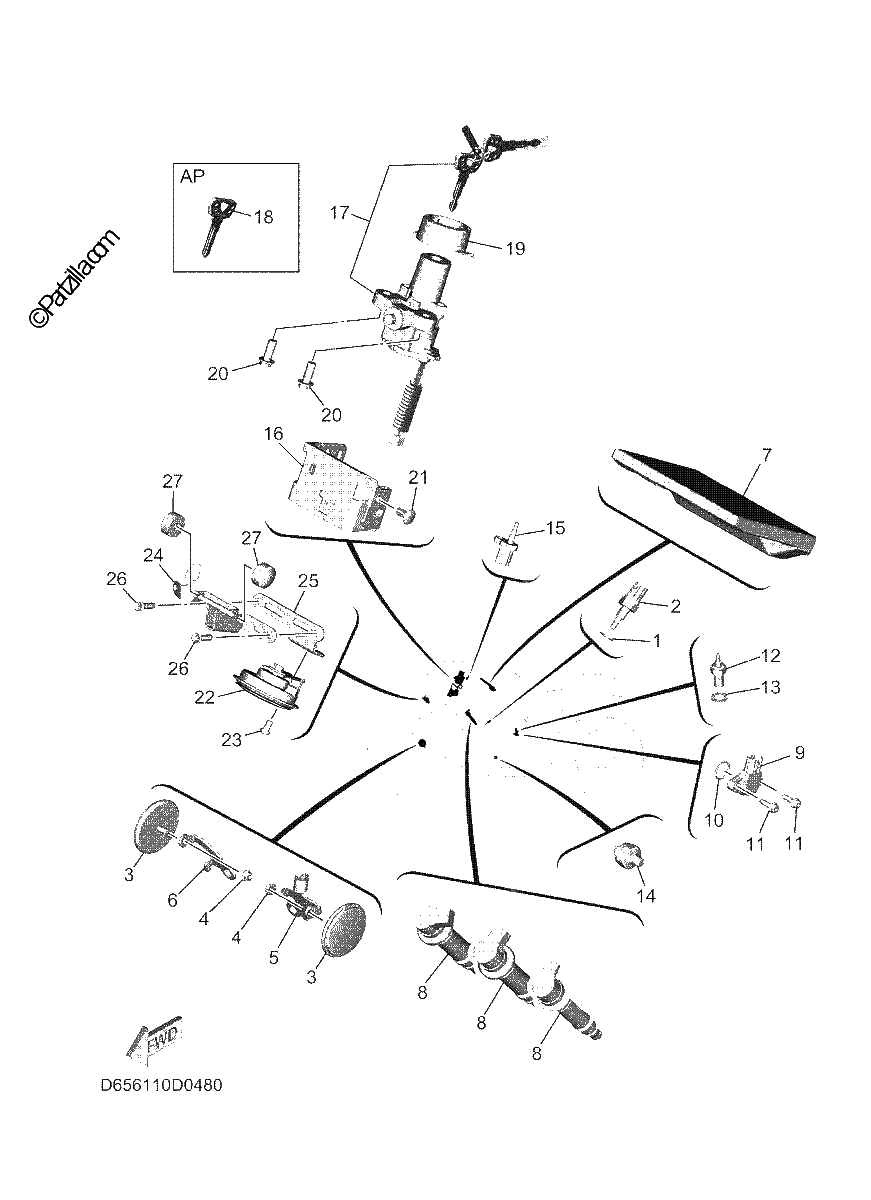

Diagrama de ELECTRICAL 2

Repuestos

#1
90430-10004-00
GASKET
$7.08¢3 538
1
#2
52B-H3591-00-00
THERMO UNIT
$34.40¢17 200
1
#3
59C-85131-00-00
REFLECTOR, REAR 1
$12.76¢6 381
1
#4
95702-05500-00
NUT,FLANGE (SILVER)
$0.91¢456
1
#5
BME-85112-00-00
BRACKET, REFLECTOR 1
$18.52¢9 263
1
#6
BME-85122-00-00
BRACKET, REFLECTOR 2
$10.04¢5 019
1
#7
D65-8591A-60-00
ENGINE CONTROL UNIT ASSY
$1454.99¢727 494
1
#8
BME-82310-00-00
IGNITION COIL ASSY
$106.51¢53 256
1
#9
2CR-85899-10-00
SENSOR, GEAR POSITION
$130.10¢65 050
1
#10
93210-17008-00
O-RING
$2.16¢1 081
1
#11
90110-05038-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#12
3GB-82540-01-00
NEUTRAL SWITCH ASSY
$62.85¢31 425
1
#13
90430-10148-00
Gasket
$5.66¢2 831
1
#14
1WS-82504-01-00
OIL PRESSURE SWITCH ASSY
$72.81¢36 406
1
#15
5YU-85886-00-00
SENSOR, AIR TEMPERATURE
$35.84¢17 919
1
#16
B7N-82599-01-00
COVER, CONNECTOR
$4.09¢2 044
1
#17
BME-82501-10-00
MAIN SWITCH STEERING LOCK
$180.60¢90 300
1
#18
4BH-82511-09-00
BLANK KEY | AP
$29.11¢14 556
1
#19
3P6-82568-00-00
COVER, MAIN SWITCH
$39.77¢19 888
1
#20
90105-081A1-00
BOLT, FLANGE
$8.21¢4 106
1
#21
90269-07015-00
RIVET
$1.23¢613
1
#22
BEA-83371-00-00
HORN
$56.94¢28 469
1
#23
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#24
B7N-8431R-00-00
STAY, SETTING
$49.52¢24 763
1
#25
BEA-23377-00-00
BRACKET, HORN
$13.93¢6 963
1
#26
95E32-06020-00
BOLT, FLANGE DEEP RECESS
$0.96¢481
1
#27
B7N-84527-00-00
DAMPER
$2.82¢1 412
1
