FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

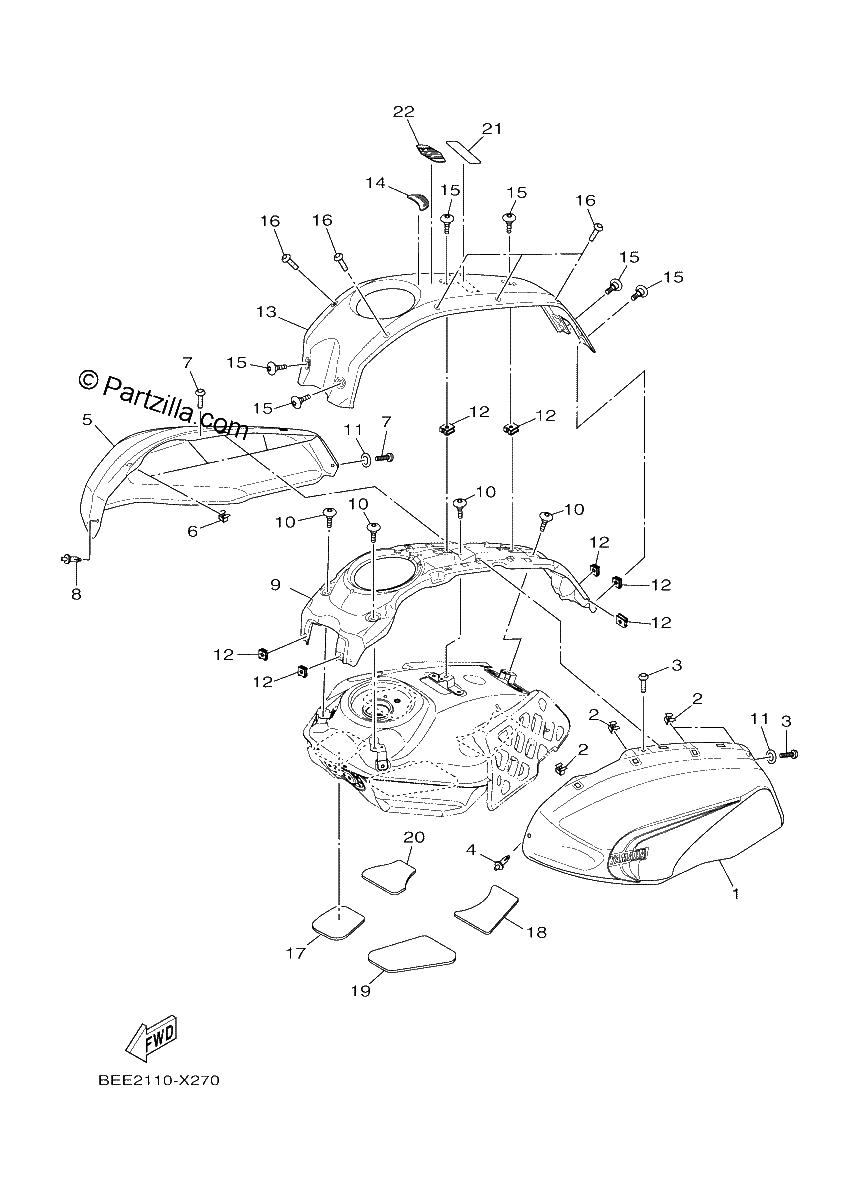

Diagrama de FUEL TANK 2

Repuestos

#1
B2G-Y24HA-10-02
COVER, TANK SIDE 1 ASSY (BLACK METALLIC X) *{SMX}*
$1021.19¢510 594
1
#2
90183-05X08-00
Nut, Spring
$28.51¢14 254
1
#3
90111-05012-00
bolt
$7.30¢3 651
1
#4
90269-06008-00
RIVET
$8.10¢4 048
1
#5
B2G-Y24JA-10-02
COVER, TANK SIDE 2 ASSY (BLACK METALLIC X) *{SMX}*
$1021.19¢510 594
1
#6
90183-05X08-00
Nut, Spring
$28.51¢14 254
1
#7
90111-05012-00
bolt
$7.30¢3 651
1
#8
90269-06008-00
RIVET
$8.10¢4 048
1
#9
B34-F41B1-00-00
COVER, TANK
$175.34¢87 670
1
#10
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#11
90201-05725-00
WASHER, PLATE
$7.44¢3 720
1
#12
90183-05X04-00
Nut, Spring
$34.17¢17 083
1
#13
B2G-2411A-00-P4
OUTER PANEL 1 (BLACK METALLIC X) *{SMX}*
$463.58¢231 788
1
#14
B34-F4141-00-00
PROTECTOR, FUEL TANK
$46.07¢23 034
1
#15
90111-05011-00
BOLT, HEX. SOCKET BUTTON
$4.77¢2 386
1
#16
90111-05012-00
bolt
$7.30¢3 651
1
#17
B2G-2315H-00-00
PROTECTOR 1
$13.63¢6 814
1
#18
B2G-24193-00-00
SEAT, TANK PROTECTOR
$13.86¢6 929
1
#19
B2G-2315J-00-00
PROTECTOR 2
$20.56¢10 281
1
#20
B2G-24595-00-00
Protector
$10.09¢5 043
1
#21
1TP-2118K-A2-00
. LABEL, CAUTION
$6.59¢3 295
1
#22
B90-2416B-02-00
EMBLEM
$42.39¢21 194
1
