STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

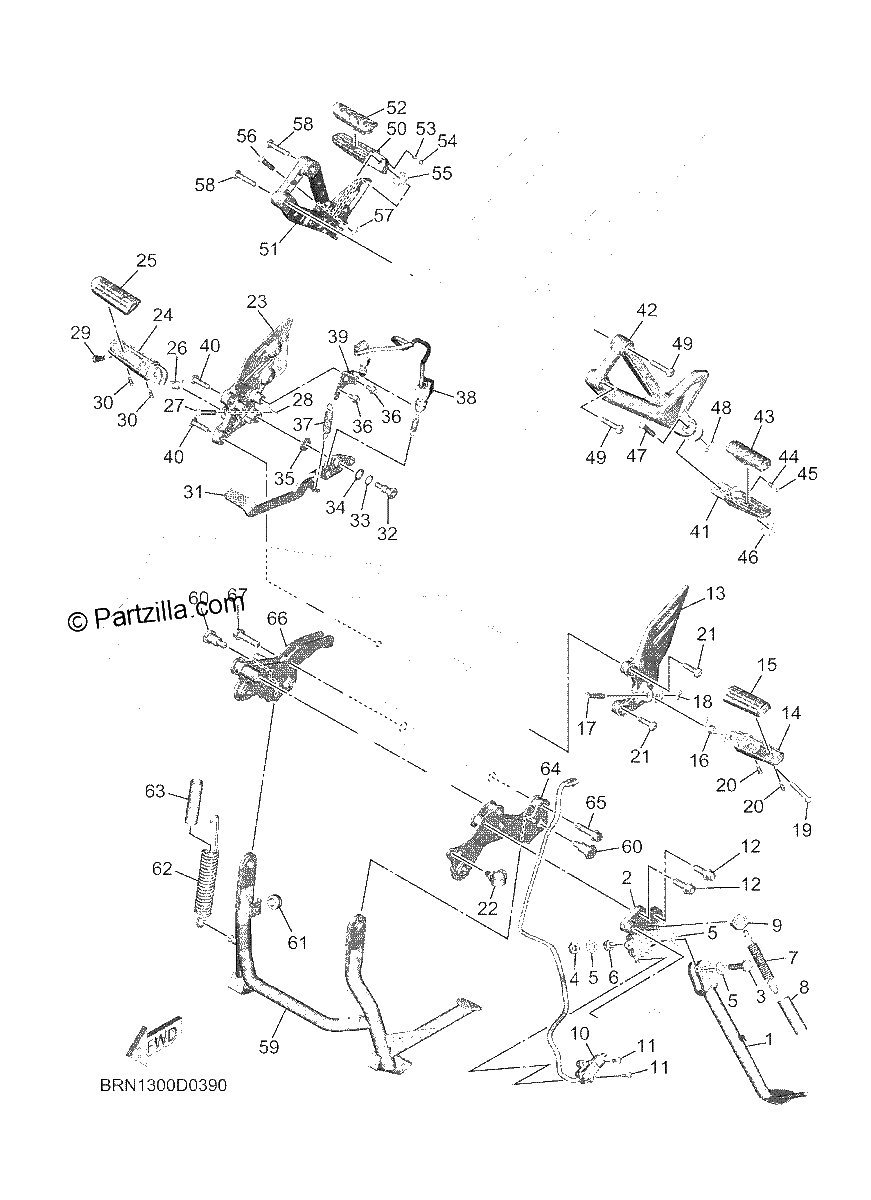

Diagrama de STAND FOOTREST

Repuestos

#1
BLG-27311-00-00
STAND, SIDE
$67.05¢33 525
1
#2
B5U-27321-00-00
BRACKET, SIDE STAND
$91.39¢45 694
1
#3
90101-10034-00
BOLT
$8.94¢4 469
1
#4
90185-10012-00
NUT, SELF-LOCKING
$3.55¢1 775
1
#5
90201-10075-00
WASHER, PLATE
$2.97¢1 487
1
#6
90387-10020-00
COLLAR
$19.52¢9 763
1
#7
90506-26014-00
SPRING, TENSION
$7.71¢3 856
1
#8
90445-197J2-00
HOSE (L60)
$4.68¢2 338
1
#9
B7N-27315-00-00
LINK, SIDE STAND
$2.31¢1 156
1
#10
BME-82566-00-00
SWITCH, SIDE STAND
$56.00¢28 000
1
#11
90149-05038-00
SCREW (replaces 90149-05037-00)
$1.79¢894
1
#12
90105-10189-00
BOLT, FLANGE
$9.98¢4 988
1
#13
B7N-27442-00-00
BRACKET 2
$93.61¢46 806
1
#14
B5U-27451-00-00
FOOTREST 3
$27.80¢13 900
1
#15
BD5-27413-00-00
COVER, FOOTREST
$21.69¢10 844
1
#16
90508-18134-00
SPRING, TORSION
$7.35¢3 675
1
#17
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#18
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#19
90109-08225-00
BOLT
$6.14¢3 069
1
#20
98580-05014-00
SCREW, PAN HEAD
$8.74¢4 369
1
#21
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.99¢3 494
1
#22
90464-20016-00
CLAMP
$6.40¢3 200
1
#23
B7N-27443-00-00
BRACKET 3
$74.70¢37 350
1
#24
B5U-27461-00-00
FOOTREST 4
$27.80¢13 900
1
#25
BD5-27413-00-00
COVER, FOOTREST
$21.69¢10 844
1
#26
90508-18135-00
SPRING, TORSION
$8.80¢4 400
1
#27
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#28
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#29
90109-08225-00
BOLT
$6.14¢3 069
1
#30
98580-05014-00
SCREW, PAN HEAD
$8.74¢4 369
1
#31
BRN-27211-00-00
PEDAL, BRAKE
$78.90¢39 450
1
#32
4BP-27434-11-00
BOLT
$3.04¢1 519
1
#33
90206-12074-00
WASHER,WAVE
$8.31¢4 156
1
#34
90201-12051-00
WASHER, PLATE
$7.48¢3 738
1
#35
90201-08053-00
WASHER, PLATE
$6.94¢3 469
1
#36
95D02-06012-00
BOLT, FLANGE DEEP
$0.45¢225
1
#37
90506-23028-00
SPRING, TENSION
$5.99¢2 994
1
#38
BME-82530-00-00
STOP SWITCH ASSY
$73.75¢36 875
1
#39
BRN-2144G-00-00
STAY, STOP SWITCH
$13.77¢6 887
1
#40
90110-08220-00
BOLT, HEXAGON SOCKET HEAD
$6.99¢3 494
1
#41
BRN-27431-00-00
FOOTREST, REAR 1
No Disponible
1
#42
B5U-2741L-01-00
BRACKET 4
$120.10¢60 050
1
#43
BLW-27413-00-00
COVER, FOOTREST
$15.63¢7 813
1
#44
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#45
93501-04011-00
BALL
$7.46¢3 731
1
#46
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#47
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#48
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#49
90149-08081-00
SCREW
$4.28¢2 138
1
#50
BRN-27441-00-00
FOOTREST, REAR 2
No Disponible
1
#51
B5U-2742L-01-00
BRACKET 5
$120.10¢60 050
1
#52
BLW-27413-00-00
COVER, FOOTREST
$15.63¢7 813
1
#53
90501-12743-00
SPRING, COMPRESSION
$3.81¢1 906
1
#54
93501-04011-00
BALL
$7.46¢3 731
1
#55
5VX-27437-00-00
WASHER, SPECIAL
$7.99¢3 994
1
#56
91702-08040-00
PIN, CLEVIS
$4.84¢2 419
1
#57
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#58
90149-08081-00
SCREW
$4.28¢2 138
1
#59
BRN-27111-00-00
STAND, MAIN
$226.28¢113 138
1
#60
90109-10029-00
BOLT
$9.91¢4 956
1
#61
36C-27114-00-00
STOPPER, MAIN STAND
$12.48¢6 238
1
#62
90506-40012-00
SPRING, TENSION
$16.61¢8 306
1
#63
BC3-2247A-00-00
HOSE 1
$4.04¢2 019
1
#64
BRN-27151-00-00
BRACKET, MAIN STAND
$148.34¢74 169
1
#65
90105-10334-00
BOLT, FLANGE
$13.39¢6 694
1
#66
BRN-27152-00-00
BRACKET, MAIN STAND 2
$148.61¢74 306
1
#67
90105-10334-00
BOLT, FLANGE
$13.39¢6 694
1
