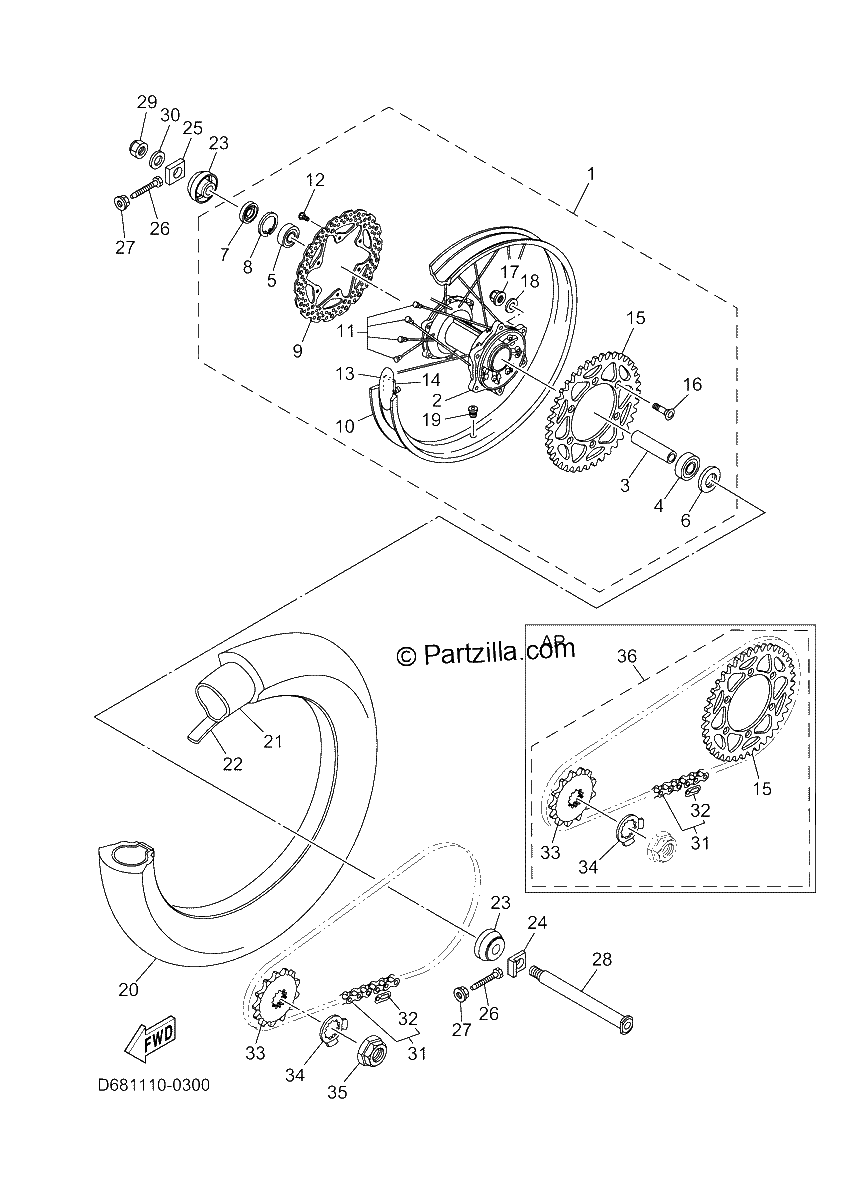

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR WHEEL SUB-ASSY
$624.99¢312 494
#2
HUB, REAR
$318.70¢159 350
#3
SPACER, BEARING
$51.06¢25 531
#4
BEARING
$78.49¢39 244
#5
BEARING
$40.19¢20 094
#6
OIL SEAL
$11.92¢5 962
#7
OIL SEAL
$9.45¢4 725
#8
CIRCLIP
$2.97¢1 487
#9
DISK, REAR BRAKE 2
$139.01¢69 506
#10
RIM (1.85-19)
$415.26¢207 631
#11
SPOKE SET, REAR
$274.94¢137 469
#12
SCREW, COUNTERSUNK
$3.17¢1 588
#13
SPACER,BEAD
$63.74¢31 869
#14
Damper
$7.91¢3 956
#15
SPROCKET, DRIVEN (50T)
$55.67¢27 838
#15
SPROCKET, DRIVEN (51T)
$98.74¢49 369
#15
SPROCKET, DRIVEN (48T)
$108.60¢54 300
#15
SPROCKET, DRIVEN (47T)
$85.10¢42 550
#15
SPROCKET, DRIVEN (52T)
$112.49¢56 244
#15
SPROCKET, DRIVEN (49T)
$101.24¢50 619
#16
bolt
$3.39¢1 694
#17
NUT, SELF-LOCKING
$7.16¢3 581
#18
WASHER, plate
$6.88¢3 438
#19
GROMMET
$8.06¢4 031
#20
TIRE (100/90-19 57M X20R)
$162.49¢81 244
#21
TUBE (80/100-19 M/C TR4)
$50.51¢25 256
#22
BAND, RIM (1.85-19)
$14.90¢7 450
#23
COLLAR ASSY
$34.76¢17 381
#24
PULLER, CHAIN 1
$24.16¢12 081
#25
PULLER, CHAIN 2
$29.69¢14 844
#26
bolt
$8.01¢4 006
#27
Nut
$6.23¢3 113
#28
AXLE, WHEEL
$97.96¢48 981
#29
NUT, SELF-LOCKING
$27.00¢13 500
#30
WASHER, PLATE
$9.14¢4 569
#31
CHAIN(DID520DMS SDH G&B 112LL)
$206.31¢103 156
#32
JOINT, CHAIN(DID520DMS G RJ)
$5.88¢2 938
#33
SPROCKET, DRIVE (13T)
$22.69¢11 344
#34
Washer, Lock
$7.30¢3 650
#35
Nut
$16.34¢8 169
#36
CHAIN & SPROCKET KIT
$224.99¢112 494
