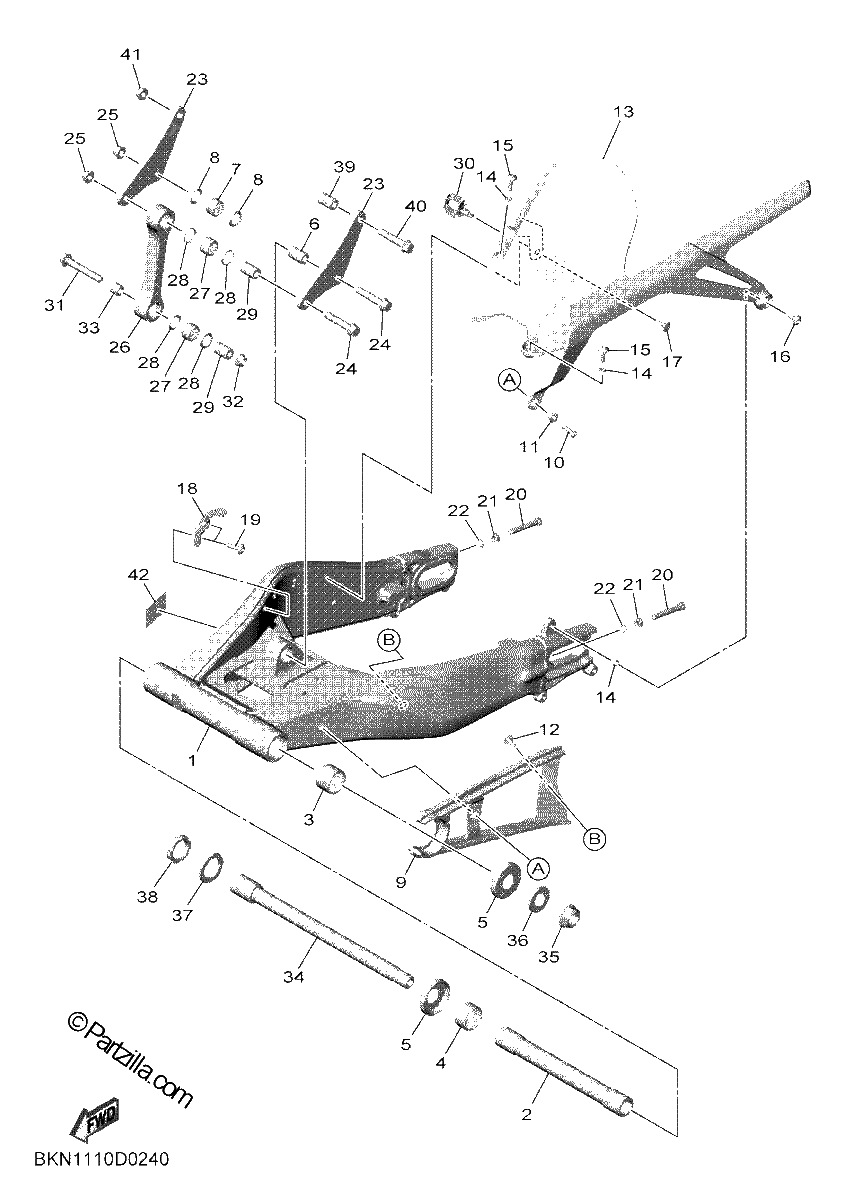

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP
$1560.54¢780 269
#2
COLLAR
$78.95¢39 474
#3
BEARING
$33.92¢16 963
#4
BEARING
$32.40¢16 198
#5
COVER, THRUST 1
$14.54¢7 268
#6
COLLAR
$19.48¢9 741
#7
BEARING
$38.04¢19 021
#8
OIL SEAL
$7.38¢3 691
#9
SEAL, GUARD
$52.99¢26 496
#10
BOLT, BUTTON HEAD
$3.16¢1 581
#11
COLLAR
$18.85¢9 424
#12
RIVET
$3.68¢1 840
#13
REAR FENDER COMP.
$37.25¢18 624
#14
COLLAR
$5.93¢2 967
#15
SCREW
$4.20¢2 099
#16
BOLT, HEX. SOCKET BUTTON
$2.92¢1 461
#17
RIVET
$3.68¢1 840
#18
STAY
$14.78¢7 389
#19
SCREW
$4.20¢2 099
#20
BOLT
$3.29¢1 644
#21
NUT (6L2)
$7.44¢3 720
#22
WASHER, plate
$1.93¢966
#23
ARM, RELAY
$23.07¢11 534
#24
BOLT, FLANGE
$8.94¢4 468
#25
NUT,SELF-LOCKING
$3.65¢1 823
#26
ARM 1
$50.50¢25 248
#27
BEARING
$38.04¢19 021
#28
OIL SEAL
$7.38¢3 691
#29
COLLAR
$19.48¢9 741
#30
CLAMP
$2.13¢1 064
#31
BOLT, FLANGE
$6.52¢3 260
#32
NUT, U FLANGE
$2.51¢1 254
#33
COLLAR
$24.77¢12 385
#34
SHAFT, PIVOT
$119.53¢59 765
#35
NUT, SELF-LOCKING
$31.75¢15 876
#36
WASHER, PLATE
$10.28¢5 140
#37
WASHER, PLATE
$10.87¢5 434
#38
NUT
$18.85¢9 424
#39
COLLAR
$7.64¢3 818
#40
BOLT, FLANGE
$8.94¢4 468
#41
NUT,SELF-LOCKING
$3.65¢1 823
#42
LABEL, TIRE
$3.32¢1 662
