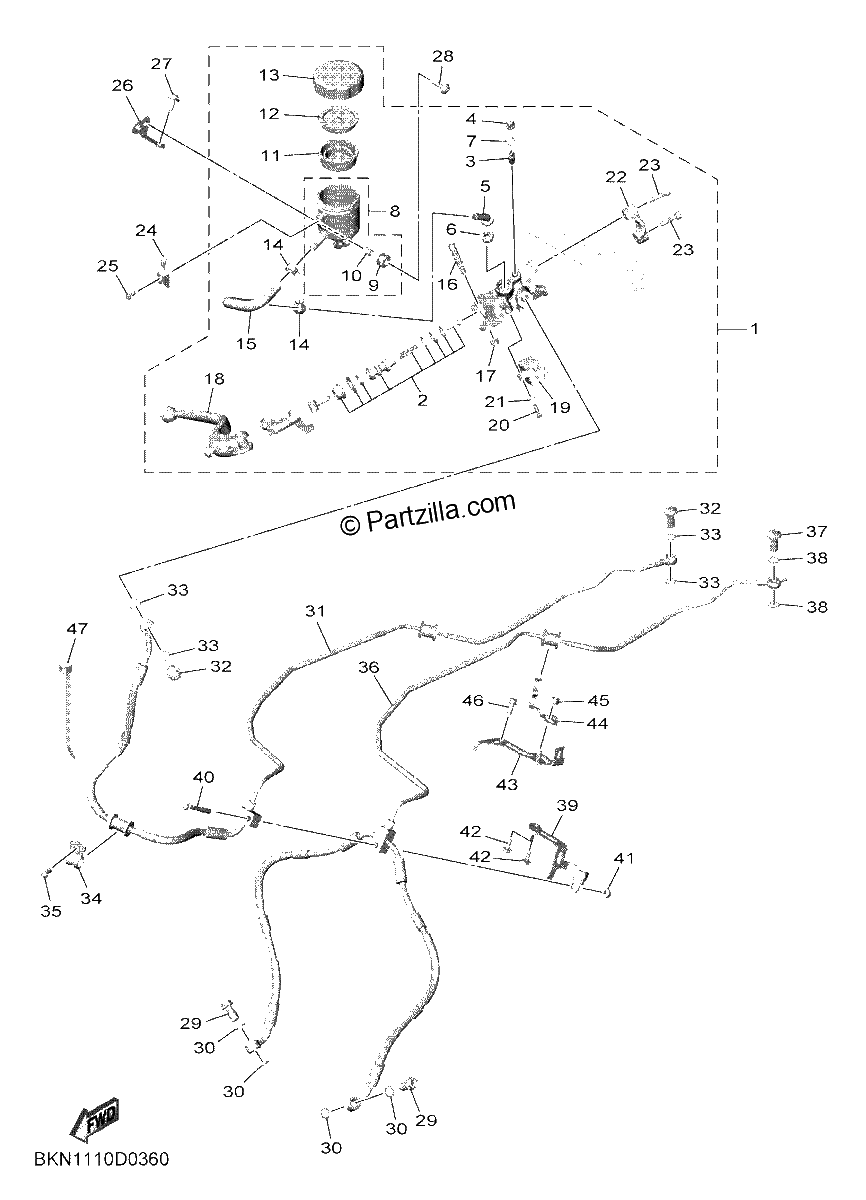

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER ASSY
$370.13¢185 064
#2
MASTER CYLINDER SEAL KIT, FR
$52.77¢26 387
#3
SCREW, BLEED
$8.26¢4 129
#4
CAP
$12.79¢6 394
#5
JOINT
$4.06¢2 030
#6
O-RING
$10.48¢5 238
#7
SEAL 1
$1.77¢886
#8
TANK, RESERVOIR
$60.89¢30 446
#9
. .GROMMET This item has been discontinued and may not be available. Contact us for more information.
$4.47¢2 237
#10
. .COLLAR This item has been discontinued and may not be available. Contact us for more information.
$3.93¢1 967
#11
DIAPHRAGM, RESERVOIR
$30.90¢15 450
#12
BUSH, DIAPHRAGM
$4.13¢2 064
#13
CAP, RESERVOIR
$17.39¢8 694
#14
CLIP
$6.43¢3 214
#15
HOSE, RESERVOIR
$8.73¢4 364
#16
BOLT, LEVER
$6.88¢3 439
#17
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
#18
LEVER SET
$53.06¢26 531
#19
FRONT STOP SWITCH ASSY
$67.86¢33 931
#20
SCREW, PAN HEAD
$3.06¢1 529
#21
WASHER, PLATE
$1.10¢552
#22
BRACKET, MASTER CYLINDER
$34.79¢17 394
#23
BOLT (4FL)
$2.39¢1 196
#24
HOLDER
$8.21¢4 105
#25
SCREW
$6.99¢3 496
#26
STAY
$12.51¢6 256
#27
BOLT, HEXAGON SOCKET HEAD
$5.69¢2 846
#28
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
#29
BOLT, OIL 1
$13.25¢6 624
#30
GASKET
$7.72¢3 858
#31
BRAKE HOSE ASSY
$217.05¢108 526
#32
BOLT, UNION
$4.06¢2 030
#33
GASKET
$7.72¢3 858
#34
Clamp
$1.83¢914
#35
BOLT, BUTTON HEAD
$2.74¢1 368
#36
HOSE, BRAKE
$264.02¢132 009
#37
BOLT, UNION
$4.06¢2 030
#38
GASKET
$7.72¢3 858
#39
BRACKET, REFLECTOR 1
$33.28¢16 641
#40
BOLT, SMALL FLANGE
$2.71¢1 357
#41
NUT, FLANGE
$0.86¢431
#42
BOLT, FLANGE
$1.45¢724
#43
BRACKET
$18.94¢9 470
#44
BRACKET 2
$15.09¢7 544
#45
NUT, FLANGE
$0.86¢431
#46
BOLT, FLANGE DEEP RECESS
$0.38¢190
#47
BAND
$6.95¢3 473
