ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

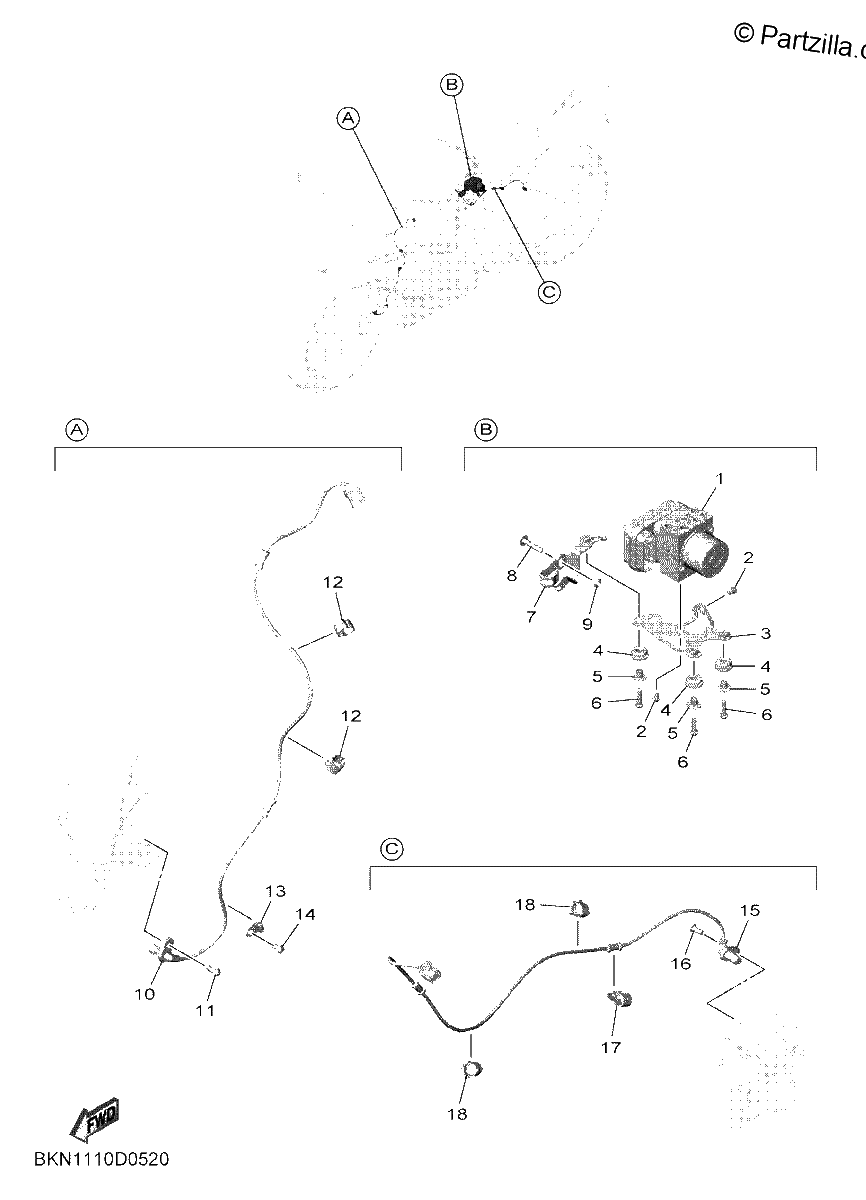

Diagrama de ELECTRICAL 3

Repuestos

#1
BKN-85930-08-00
HYDRAULIC UNIT ASSY
$1254.16¢627 081
1
#2
90111-06204-00
BOLT, HEXAGON SOCKET BUTTON
$1.63¢813
1
#3
BME-85991-00-00
BRACKET, UNIT
$21.94¢10 969
1
#4
90480-13567-00
GROMMET
$4.63¢2 313
1
#5
90387-06160-00
COLLAR
$4.51¢2 256
1
#6
92012-06020-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#7
BKN-85542-00-00
BRACKET
$47.98¢23 988
1
#8
90111-06063-00
BOLT,HEX. SOCKET BUT
$7.48¢3 738
1
#9
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#10
BKN-85970-00-00
WHEEL SENSOR ASSY, FRONT
$128.69¢64 344
1
#11
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#12
90464-14010-00
CLAMP
$3.83¢1 913
1
#13
2CR-23317-00-00
HOLDER, CABLE
$10.74¢5 369
1
#14
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#15
BKN-85980-00-00
WHEEL SENSOR ASSY, REAR
$133.20¢66 600
1
#16
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#17
90464-10233-00
CLAMP
$7.56¢3 781
1
#18
90464-14010-00
CLAMP
$3.83¢1 913
1
