ELECTRICAL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

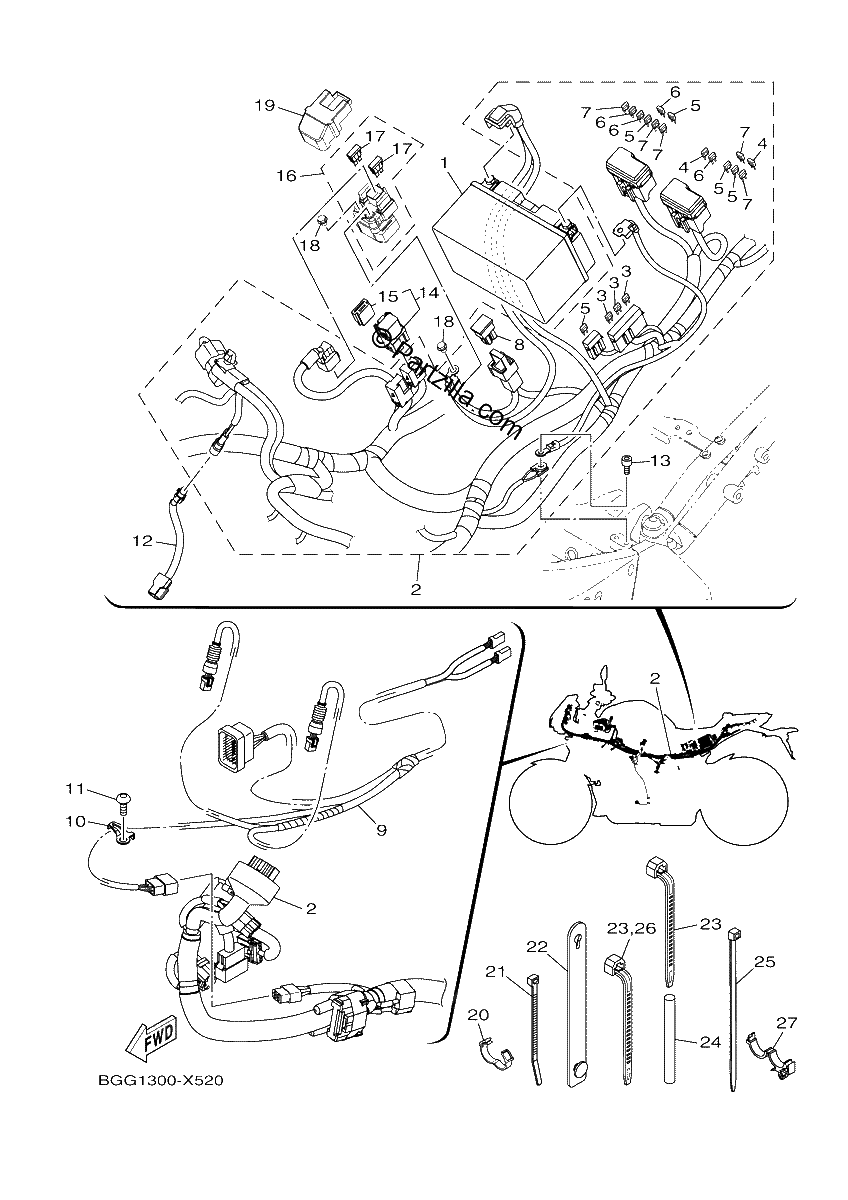

Diagrama de ELECTRICAL 2

Repuestos

#1
5VY-82100-02-00
BATTERY ASSY (YUASA YTZ10S)
$297.68¢148 839
1
#2
BGG-82590-11-00
WIRE HARNESS ASSY
No Disponible
1
#3
5JJ-82151-A0-00
FUSE (1A-BL)
$3.58¢1 788
1
#4
5JJ-82151-80-00
FUSE (2A-BL)
$7.75¢3 875
1
#5
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#6
5JJ-82151-30-00
. FUSE (10A-BL)
$7.58¢3 789
1
#7
5JJ-82151-10-00
. FUSE (15A-BL)
$4.08¢2 041
1
#8
5JW-82151-10-00
FUSE (50A)
$15.65¢7 826
1
#9
BGG-82509-00-00
WIRE, SUB LEAD
$194.32¢97 158
1
#10
2CR-2627E-00-00
CLAMP, WIRE
$6.13¢3 065
1
#11
92014-06012-00
BOLT,BUTTON HEAD
$2.71¢1 357
1
#12
B67-82309-00-00
WIRE, SUB LEAD
$16.65¢8 326
1
#13
91312-06012-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#14
1TP-81950-00-00
RELAY ASSY (1TP-00)
$14.34¢7 170
1
#15
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
#16
2CR-81940-00-00
STARTER RELAY ASSY
$58.28¢29 141
1
#17
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#18
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#19
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#20
90464-16003-00
CLAMP
$6.87¢3 433
1
#21
90465-10098-00
CLAMP
$2.55¢1 277
1
#22
B5U-82591-00-00
BAND
$4.54¢2 271
1
#23
90464-13073-00
Clamp
$3.04¢1 518
1
#24
90445-09132-00
HOSE
$4.54¢2 271
1
#25
90464-16061-00
BAND
$7.68¢3 841
1
#26
90464-13077-00
CLAMP
$7.30¢3 651
1
#27
90464-16006-00
CLAMP
$9.12¢4 560
1
