TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

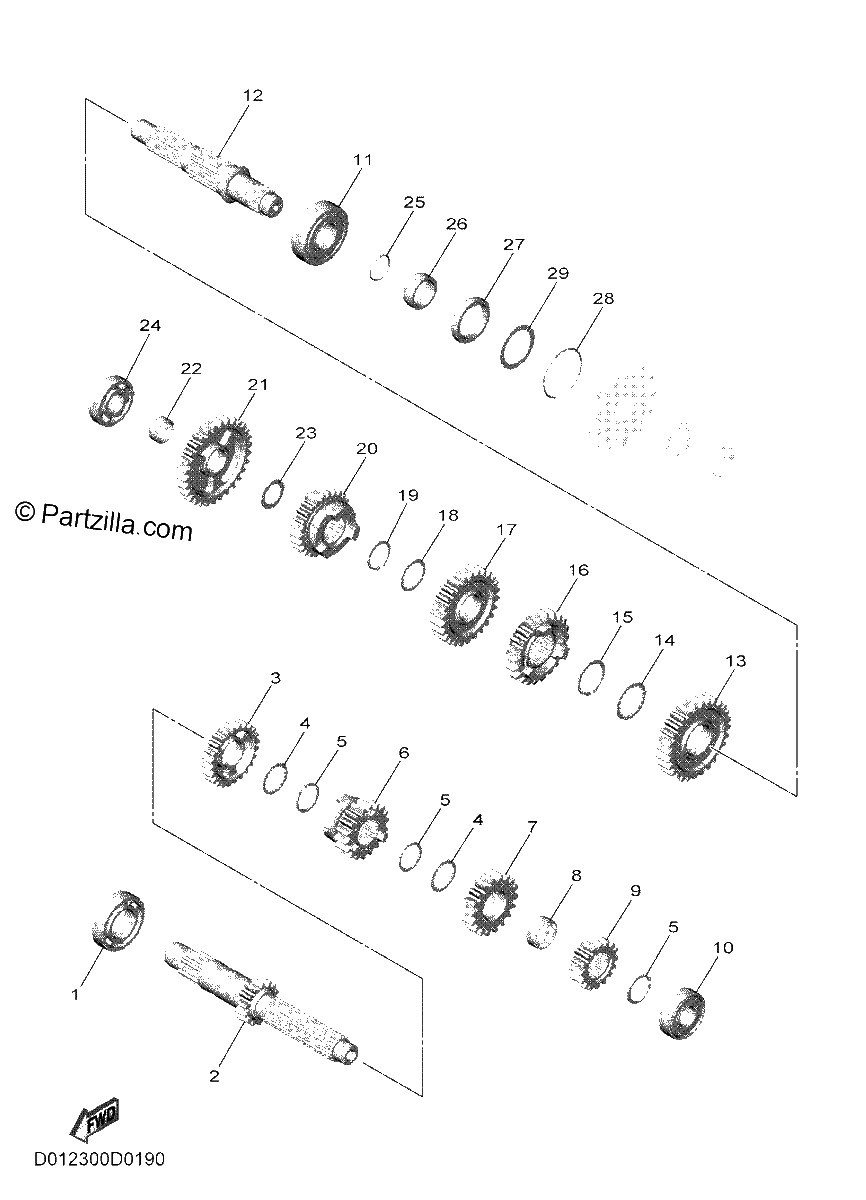

Diagrama de TRANSMISSION

Repuestos

#1
93306-00525-00
BEARING
$22.83¢11 414
1
#2
B7B-17411-00-00
AXLE, MAIN
$147.53¢73 767
1
#3
1SM-17151-00-00
GEAR, 5TH PINION
$75.68¢37 841
1
#4
90209-20008-00
WASHER
$9.40¢4 698
1
#5
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#6
1SM-17131-20-00
GEAR, 3RD PINION (20T)
$199.24¢99 619
1
#7
1SM-17141-30-00
GEAR, 4TH PINION (18T)
$84.93¢42 464
1
#8
90387-20006-00
Collar
$29.12¢14 559
1
#9
1SM-17121-00-00
GEAR, 2ND PINION
$75.19¢37 593
1
#10
93306-20336-00
BEARING
$29.81¢14 904
1
#11
93306-27209-00
BEARING
$75.60¢37 800
1
#12
B7B-1742A-10-00
DRIVE AXLE ASSY.,2
$156.80¢78 401
1
#13
1SM-17221-20-00
GEAR, 2ND WHEEL (28T)
$120.93¢60 467
1
#14
90209-23012-00
WASHER
$5.51¢2 754
1
#15
93410-26067-00
CIRCLIP,S-TYPE
$8.13¢4 065
1
#16
1SM-17241-30-00
GEAR, 4TH WHEEL (22T)
$163.75¢81 874
1
#17
1SM-17231-30-00
GEAR, 3RD WHEEL (26T)
$73.84¢36 921
1
#18
90209-20008-00
WASHER
$9.40¢4 698
1
#19
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#20
1SM-17251-20-00
GEAR, 5TH WHEEL (25T)
$246.27¢123 136
1
#21
B7B-17211-00-00
GEAR, 1ST WHEEL
$120.49¢60 243
1
#22
90387-17012-00
COLLAR
$15.16¢7 578
1
#23
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#24
93306-20351-00
BEARING
$37.40¢18 699
1
#25
93210-196A4-00
O-RING
$2.14¢1 070
1
#26
90387-22036-00
Collar
$20.33¢10 166
1
#27
93102-28012-00
Oil Seal
$16.08¢8 038
1
#28
93450-40N50-00
Circlip
$1.36¢678
1
#29
90201-29M00-00
WASHER,PLATE
$5.96¢2 978
1
