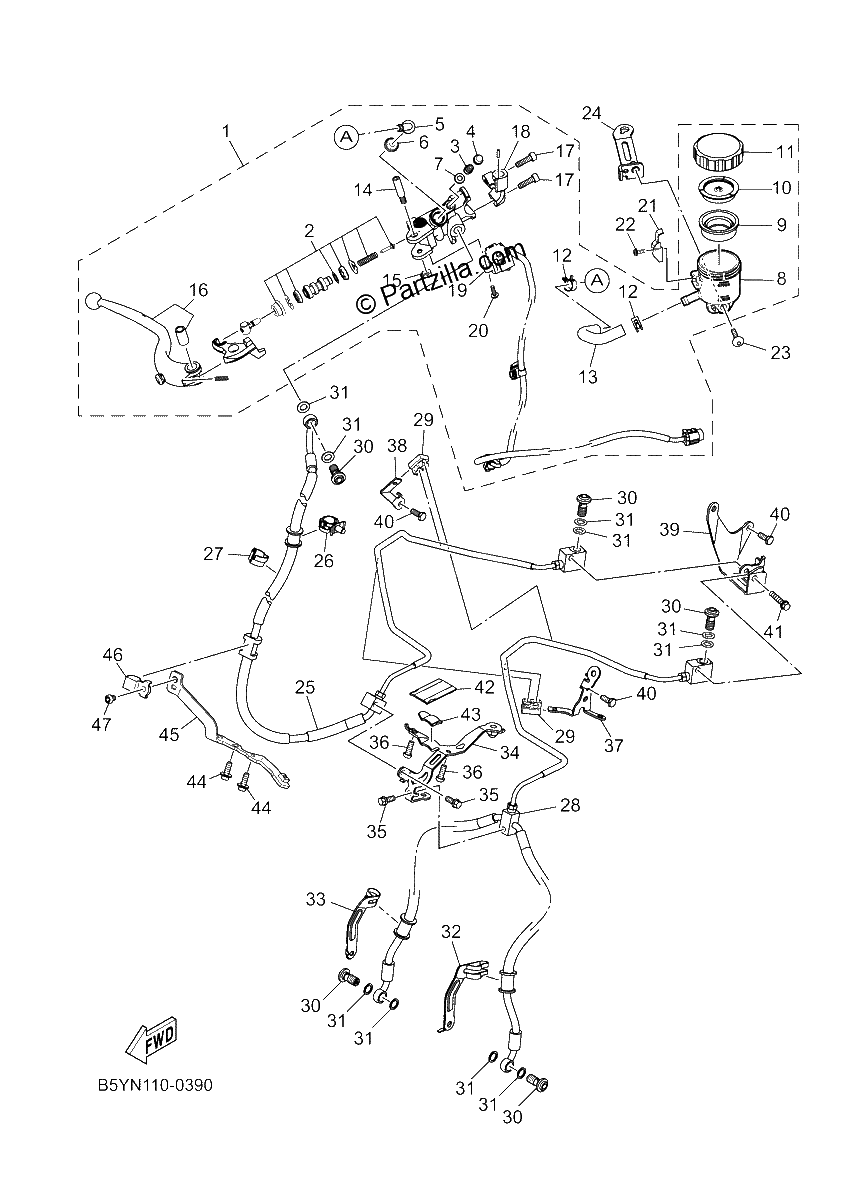

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER ASSY
$741.88¢370 938
#2
MASTER CYLINDER SEAL KIT, FR
$52.77¢26 387
#3
SCREW, BLEED
$8.26¢4 129
#4
CAP
$12.79¢6 394
#5
JOINT
$4.06¢2 030
#6
O-RING
$10.48¢5 238
#7
SEAL 1
$1.77¢886
#8
TANK, RESERVOIR
$60.89¢30 446
#9
DIAPHRAGM, RESERVOIR
$30.90¢15 450
#10
BUSH, DIAPHRAGM
$4.13¢2 064
#11
CAP, RESERVOIR
$17.39¢8 694
#12
CLIP
$6.43¢3 214
#13
HOSE, RESERVOIR
$18.50¢9 252
#14
BOLT, LEVER
$6.88¢3 439
#15
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
#16
LEVER SET
$53.06¢26 531
#17
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#18
BRACKET, MASTER CYLINDER
$58.24¢29 118
#19
FRONT STOP SWITCH ASSY
$159.33¢79 666
#20
SCREW, PAN HEAD WITH WASHER
$5.65¢2 823
#21
HOLDER
$8.21¢4 105
#22
SCREW
$6.99¢3 496
#23
BOLT (replaces 90111-05030-00)
$1.89¢943
#24
STAY
$38.94¢19 469
#25
BRAKE HOSE ASSY
$219.75¢109 877
#26
CLAMP
$3.22¢1 610
#27
CLAMP
$3.52¢1 759
#28
HOSE, BRAKE
$269.40¢134 699
#29
CLAMP
$2.53¢1 265
#30
BOLT, UNION
$4.06¢2 030
#31
GASKET
$7.72¢3 858
#32
HOLDER, BRAKE HOSE 1
$13.49¢6 745
#33
HOLDER, BRAKE HOSE 2
$12.63¢6 313
#34
BRACKET
$37.01¢18 504
#35
BLT,BTTN HD (replaces 90111-06007-00)
$6.75¢3 375
#36
BOLT, FLANGE DEEP RECESS
$0.38¢190
#37
BRKT 2
$11.97¢5 986
#38
BRACKET 3
$5.89¢2 944
#39
BRACKET 4
$36.78¢18 389
#40
BOLT
$1.28¢638
#41
BOLT, FLANGE DEEP RECESS
$0.78¢391
#42
DAMPER
$7.08¢3 542
#43
DAMPER, LOCATING 1
$1.01¢506
#44
BOLT, HEXAGON SOCKET HEAD
$2.84¢1 420
#45
BRACKET, HORN
$29.20¢14 599
#46
CLAMP
$9.27¢4 635
#47
BOLT, BUTTON HEAD
$3.36¢1 679
