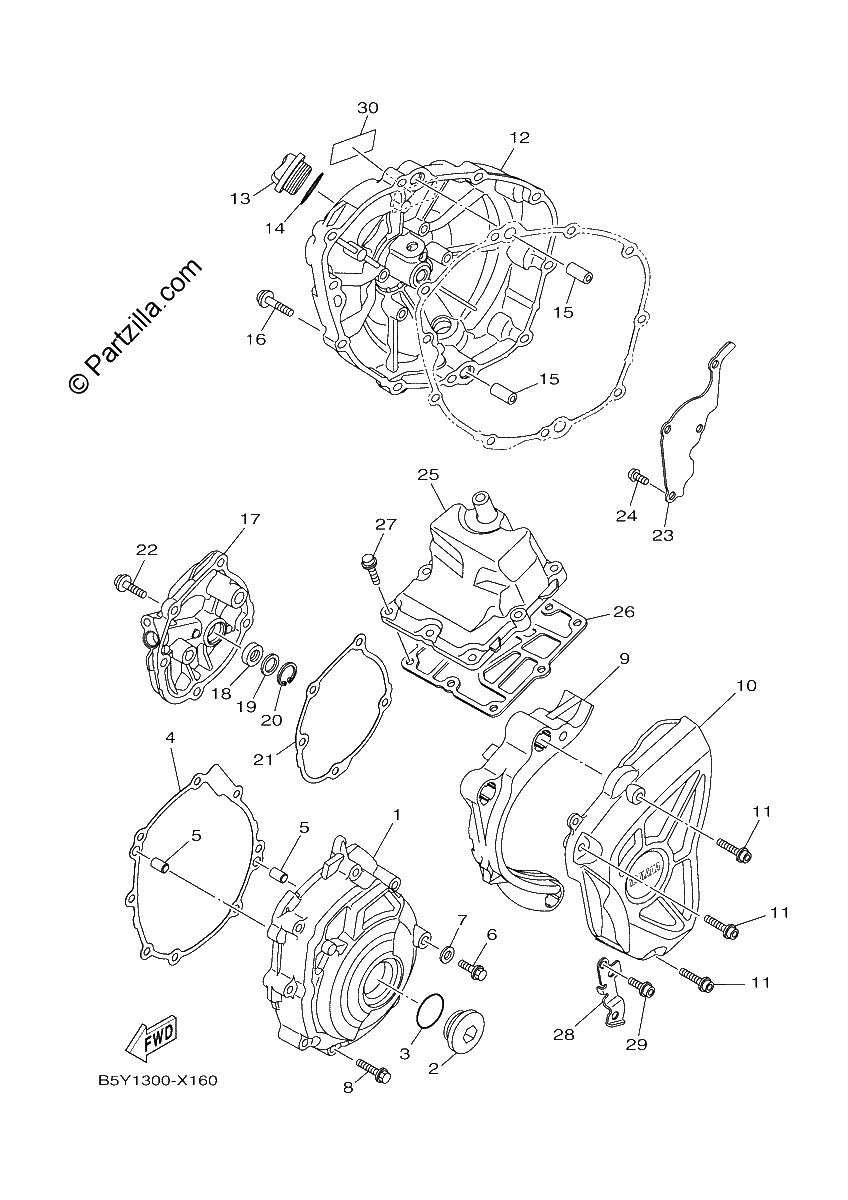

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1 *{MDNM9}*
$137.46¢68 730
#2
PLUG, STRAIGHT SCREW
$32.55¢16 273
#3
O-Ring
$6.32¢3 162
#4
GASKET, CRANKCASE COVER 1
$14.79¢7 394
#5
PIN, DOWEL
$5.75¢2 875
#6
BOLT, BUTTON HEAD
$7.30¢3 651
#7
GASKET
$3.38¢1 691
#8
BOLT, HEXAGON SOCKET HEAD
$2.33¢1 167
#9
GUIDE, INLET
$45.15¢22 574
#10
COVER, CHAIN CASE
$24.28¢12 138
#11
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.71¢1 357
#12
COVER, CRANKCASE 2 *{MDNM9}*
$162.93¢81 466
#13
PLUG, OIL
$11.52¢5 761
#14
O-RING
$7.01¢3 507
#15
PIN, DOWEL
$3.79¢1 897
#16
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
#17
COVER, OIL PUMP *{MDNM9}*
$107.88¢53 941
#18
OIL SEAL
$8.41¢4 203
#19
WASHER, PLATE (replaces 90201-128C9-00)
$6.88¢3 439
#20
CIRCLIP
$0.98¢489
#21
GASKET, OIL PUMP COVER 1
$10.95¢5 474
#22
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
#23
PLATE, BREATHER
$3.45¢1 725
#24
SCREW
$6.96¢3 479
#25
COVER
$109.79¢54 895
#26
GASKET, CRANKCASE COVER 3
$10.18¢5 089
#27
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.71¢1 357
#28
HOLDER
$8.80¢4 399
#29
BOLT, HEXAGON SOCKET HEAD
$2.91¢1 455
#30
OIL, LABEL
$4.55¢2 277
