FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

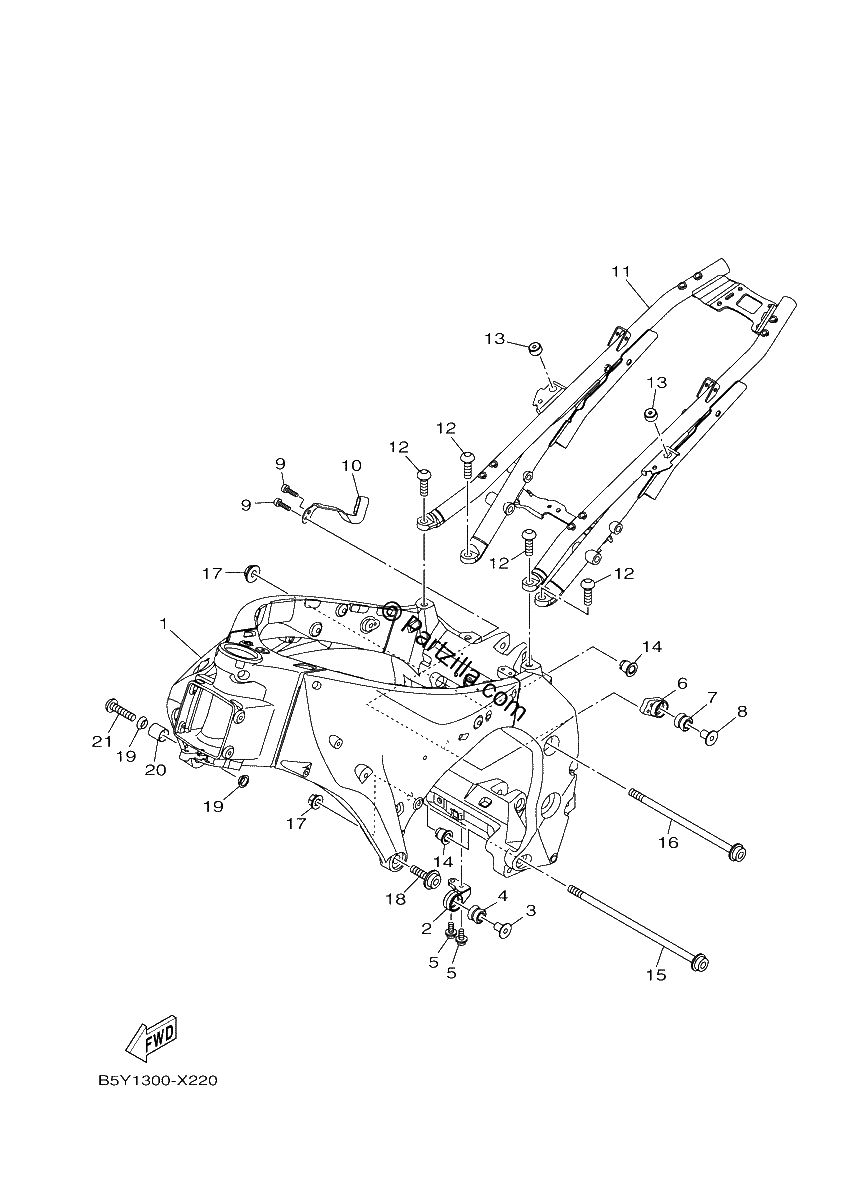

Diagrama de FRAME

Repuestos

#1
B67-21110-20-00
FRAME COMP. *{MDNM9}*
$5679.99¢2 839 994
1
#2
B67-21435-00-00
BRACKET, MUFFLER 1
$59.56¢29 781
1
#3
90387-08021-00
COLLAR
$10.14¢5 069
1
#4
5VY-14747-00-00
DAMPER, MUFFLER
$14.65¢7 325
1
#5
90110-06248-00
BOLT, HEXAGON SOCKET HEAD
$3.70¢1 850
1
#6
2CR-21436-00-00
BRACKET, MUFFLER 2
$23.03¢11 513
1
#7
5VY-14747-00-00
DAMPER, MUFFLER
$14.65¢7 325
1
#8
90387-08021-00
COLLAR
$10.14¢5 069
1
#9
91312-06020-00
BOLT, HEXAGON SOCKET HEAD
$2.44¢1 219
1
#10
B5Y-2148Y-00-00
BRKT., 5
$27.83¢13 913
1
#11
B5Y-21190-00-00
REAR FRAME COMP. *{MBL2}*
$1081.32¢540 662
1
#12
90149-10064-00
SCREW
$4.35¢2 175
1
#13
157-27114-00-00
STOPPER, MAIN STAND
$10.31¢5 156
1
#14
5YU-21495-00-00
BOLT, ENGINE ADJUSTING
$17.96¢8 981
1
#15
90110-12010-00
BOLT, HEXAGON SOCKET HEAD
$34.11¢17 056
1
#16
90110-12008-00
BOLT, HEXAGON SOCKET HEAD
$29.86¢14 931
1
#17
90179-12004-00
NUT
$6.23¢3 113
1
#18
90110-12007-00
BOLT, HEXAGON SOCKET HEAD
$6.85¢3 425
1
#19
14B-21414-00-00
BOSS, ENGINE MOUNT
$23.06¢11 531
1
#20
14B-21424-00-00
BOSS, ENGINE MOUNT
$32.94¢16 469
1
#21
90111-12003-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 438
1
