COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

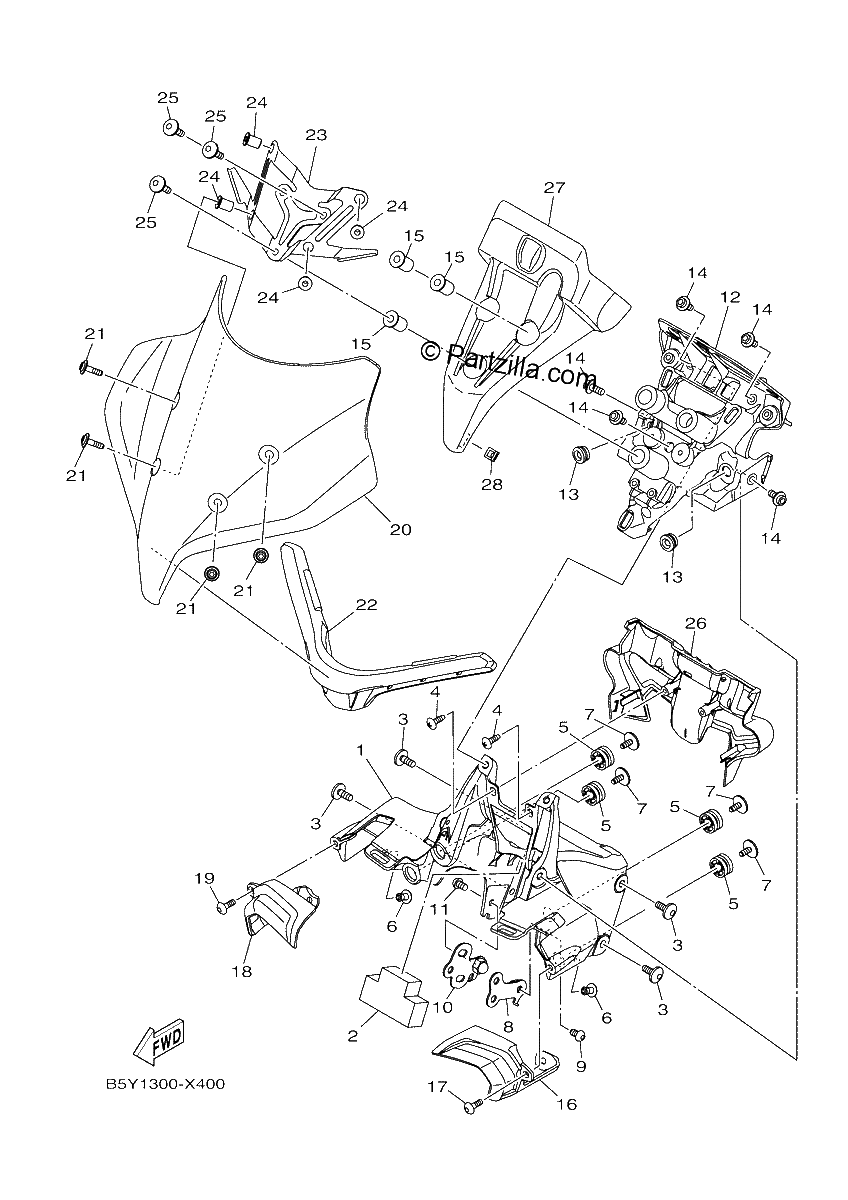

Diagrama de COWLING 1

Repuestos

#1
B5Y-28356-00-00
STAY 1
$579.39¢289 696
1
#2
B5Y-28371-00-00
DAMPER
$3.96¢1 978
1
#3
90111-06161-00
BOLT, HEX. SOCKET BUTTON
$2.92¢1 461
1
#4
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#5
4XV-83513-00-00
DAMPER
$7.01¢3 507
1
#6
90269-06019-00
RIVET
$3.19¢1 593
1
#7
90164-05014-00
SCREW, TAPPING
$6.88¢3 439
1
#8
B5Y-2836A-00-00
BRACKET 1
$9.98¢4 991
1
#9
90111-06016-00
BOLT, HEXAGON SOCKET BUTTON
$6.92¢3 461
1
#10
B5Y-2836E-00-00
BRACKET 2
$14.55¢7 274
1
#11
90111-06016-00
BOLT, HEXAGON SOCKET BUTTON
$6.92¢3 461
1
#12
B5Y-28357-00-00
STAY 2
$53.18¢26 588
1
#13
90480-10003-00
GROMMET
$6.88¢3 439
1
#14
90110-06122-00
BOLT, HEXAGON SOCKET HEAD
$5.69¢2 846
1
#15
90179-06072-00
NUT
$5.65¢2 823
1
#16
B5Y-28396-00-00
PLATE 1
$15.42¢7 711
1
#17
90111-05008-00
BOLT, HEXAGON SOCKET BUTTON
$2.50¢1 248
1
#18
B5Y-28397-00-00
PLATE 2
$16.40¢8 199
1
#19
90111-05008-00
BOLT, HEXAGON SOCKET BUTTON
$2.50¢1 248
1
#20
B5Y-23121-00-00
COVER, UPPER 1
$226.62¢113 309
1
#21
90111-05063-00
BOLT, HEXAGON SOCKET BUTTON
$2.79¢1 397
1
#22
B5Y-283M3-00-00
DEFLECTOR
$54.35¢27 175
1
#23
B5Y-2836F-00-00
BRACKET 3
$37.27¢18 636
1
#24
90179-05523-00
NUT
$6.23¢3 117
1
#25
90149-06104-00
SCREW
$4.20¢2 099
1
#26
B5Y-2836K-00-00
PANEL, INNER 1
$18.19¢9 096
1
#27
B5Y-83559-00-00
COVER, METER
$12.98¢6 492
1
#28
90468-040A0-00
CLIP
$6.83¢3 415
1
