FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

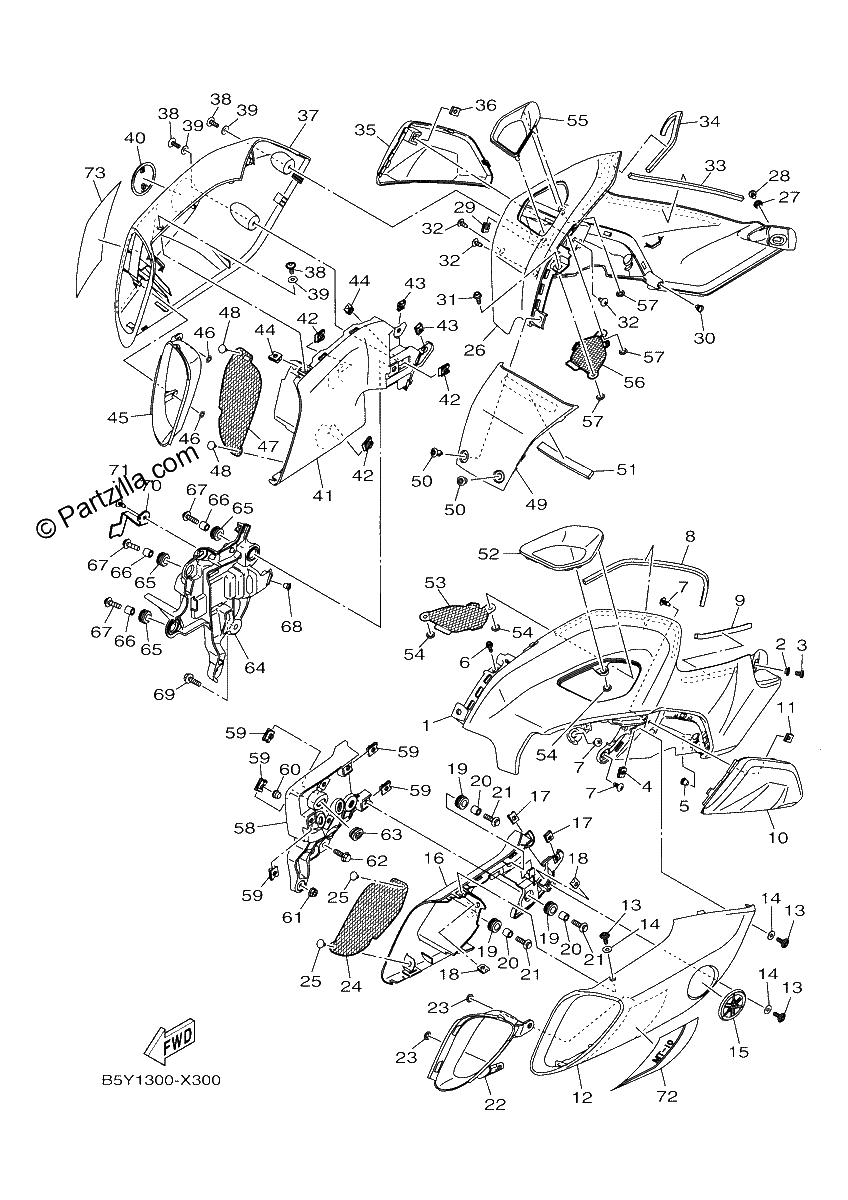

Diagrama de FUEL TANK 2

Repuestos

#1
B5Y-24129-00-P4
COVER, SIDE 1 *{MLNM4}*
$117.45¢58 725
1
#2
90387-05035-00
COLLAR
$5.51¢2 754
1
#3
98902-05008-00
SCREW, BIND
$1.35¢673
1
#4
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#5
90338-06018-00
PLUG
$6.22¢3 111
1
#6
90110-05014-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 921
1
#7
97702-50012-00
SCREW, TAPPING
$3.54¢1 771
1
#8
4C8-21746-00-00
Damper
$1.79¢897
1
#9
5YU-2177N-00-00
DAMPER, LOCATING 4
$1.23¢615
1
#10
B5Y-28345-00-00
MOLE 1
$23.84¢11 920
1
#11
90183-05042-00
NUT, SPRING
$1.15¢575
1
#12
B5Y-2137W-00-P4
SCOOP, AIR 1 *{MLNM4}*
$155.80¢77 901
1
#13
90111-05062-00
BOLT, HEXAGON SOCKET BUTTON
$2.74¢1 368
1
#14
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#15
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#16
B5Y-2172E-00-P4
STAY, SIDE COVER 1 *{MLNM4}*
$91.63¢45 816
1
#17
90183-05042-00
NUT, SPRING
$1.15¢575
1
#18
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#19
90480-14003-00
GROMMET
$6.83¢3 415
1
#20
90387-06260-00
COLLAR
$6.83¢3 415
1
#21
90105-06203-00
BOLT, FLANGE
$1.98¢989
1
#22
B5Y-27475-00-P4
CAP 1 *{MLNM4}*
$47.99¢23 995
1
#23
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#24
B5Y-2837N-00-00
GRILL, AIR INTAKE 1
$34.83¢17 417
1
#25
90269-05039-00
RIVET
$7.67¢3 835
1
#26
B5Y-24139-00-P4
COVER, SIDE 2 *{MLNM4}*
$126.87¢63 434
1
#27
90387-05035-00
COLLAR
$5.51¢2 754
1
#28
98902-05008-00
SCREW, BIND
$1.35¢673
1
#29
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#30
90338-06018-00
PLUG
$6.22¢3 111
1
#31
90110-05014-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 921
1
#32
97702-50012-00
SCREW, TAPPING
$3.54¢1 771
1
#33
4C8-21746-00-00
Damper
$1.79¢897
1
#34
5YU-2177N-00-00
DAMPER, LOCATING 4
$1.23¢615
1
#35
B5Y-28346-00-00
MOLE 2
$25.36¢12 679
1
#36
90183-05042-00
NUT, SPRING
$1.15¢575
1
#37
B5Y-2137X-00-P4
SCOOP, AIR 2 *{MLNM4}*
$155.80¢77 901
1
#38
90111-05062-00
BOLT, HEXAGON SOCKET BUTTON
$2.74¢1 368
1
#39
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#40
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#41
B5Y-2174E-00-P4
STAY, SIDE COVER 2 *{MLNM4}*
$93.82¢46 909
1
#42
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#43
90183-05042-00
NUT, SPRING
$1.15¢575
1
#44
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#45
B5Y-27476-00-P4
CAP 2 *{MLNM4}*
$49.79¢24 897
1
#46
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#47
B5Y-2837N-00-00
GRILL, AIR INTAKE 1
$34.83¢17 417
1
#48
90269-05039-00
RIVET
$7.67¢3 835
1
#49
B5Y-241B1-00-P4
COVER, TANK *{MLNM4}*
$55.54¢27 772
1
#50
90269-06019-00
RIVET
$3.19¢1 593
1
#51
4B5-2174X-00-00
Damper
$7.23¢3 617
1
#52
B5Y-2137U-00-00
GUIDE, AIR 1
$14.48¢7 239
1
#53
B5Y-2837V-00-00
GRILL, AIR OUTLET 1
$36.70¢18 348
1
#54
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#55
B5Y-2137V-00-00
GUIDE, AIR 2
$13.12¢6 561
1
#56
B5Y-2837W-00-00
GRILL, AIR OUTLET 2
$39.03¢19 515
1
#57
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#58
B5Y-2172K-00-00
BRACKET 1
$29.66¢14 829
1
#59
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#60
663-45119-01-00
CAP, GREASE NIPPLE
$2.05¢1 023
1
#61
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#62
95D37-06020-00
BOLT, FLANGE DEEP RECESS
$0.44¢218
1
#63
90480-01022-00
GROMMET
$3.21¢1 604
1
#64
B5Y-2172L-00-00
BRACKET 2
$29.27¢14 634
1
#65
90480-14003-00
GROMMET
$6.83¢3 415
1
#66
90387-06260-00
COLLAR
$6.83¢3 415
1
#67
90105-06203-00
BOLT, FLANGE
$1.98¢989
1
#68
90338-06018-00
PLUG
$6.22¢3 111
1
#69
95D37-06020-00
BOLT, FLANGE DEEP RECESS
$0.44¢218
1
#70
B5Y-24738-00-00
BRACKET, SEAT
$8.11¢4 054
1
#71
97702-50012-00
SCREW, TAPPING
$3.54¢1 771
1
#72
B5Y-2173E-40-00
GRAPHIC 1
$39.15¢19 573
1
#73
B5Y-2173F-40-00
GRAPHIC 2
$40.45¢20 223
1
