TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

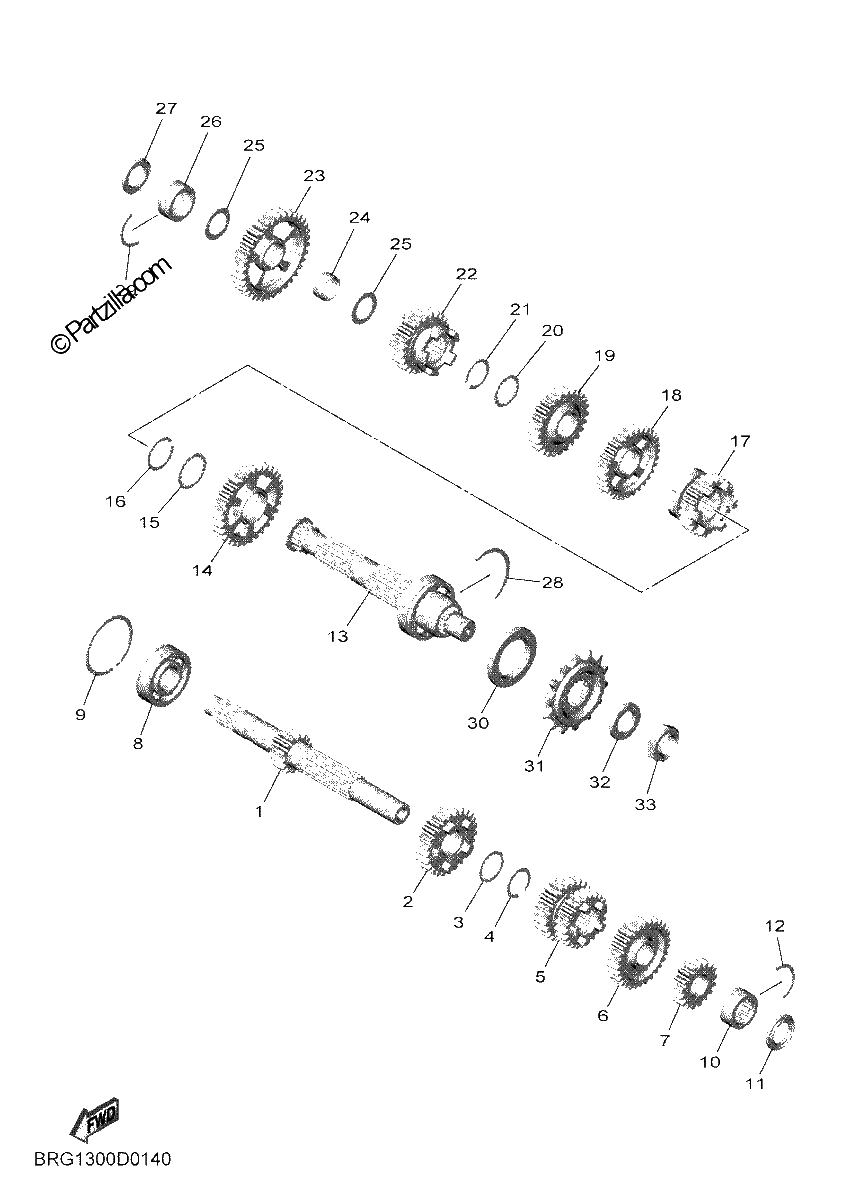

Diagrama de TRANSMISSION

Repuestos

#1
2MS-E7411-01-00
AXLE, MAIN (14T) *{UR Either can use}*
$148.15¢74 075
1
#2
2MS-E7151-01-00
GEAR, 5TH PINION (25T)
$35.80¢17 900
1
#3
90214-22008-00
WASHER, CLAW
$2.61¢1 306
1
#4
93440-24200-00
CIRCLIP
$1.98¢988
1
#5
2MS-E7131-00-00
GEAR, 3RD PINION (23T/23T)
$75.03¢37 513
1
#6
2MS-E7161-01-00
GEAR, 6TH PINION (30T)
$52.39¢26 194
1
#7
2MS-E7121-00-00
GEAR, 2ND PINION (17T)
$38.24¢19 119
1
#8
93306-255Y9-00
BEARING
$224.51¢112 256
1
#9
93440-52009-00
CIRCLIP
$11.60¢5 800
1
#10
93311-420Y3-00
BEARING
$31.23¢15 613
1
#11
93101-20802-00
OIL SEAL
$10.86¢5 431
1
#12
278-17425-00-00
CIRCLIP 2
$8.95¢4 475
1
#13
1WD-E7402-00-00
DRIVE AXLE ASSY
$168.34¢84 169
1
#14
2MS-E7221-00-00
GEAR, 2ND WHEEL (31T)
$71.78¢35 888
1
#15
90209-25011-00
WASHER
$8.60¢4 300
1
#16
93440-28184-00
CIRCLIP
$4.41¢2 206
1
#17
2MS-E7261-00-00
GEAR, 6TH WHEEL (24T)
$69.15¢34 575
1
#18
2MS-E7231-01-00
GEAR, 3RD WHEEL (31T)
No Disponible
1
#19
2MS-E7241-01-00
GEAR, 4TH WHEEL (25T)
$41.84¢20 919
1
#20
90214-22008-00
WASHER, CLAW
$2.61¢1 306
1
#21
93440-24200-00
CIRCLIP
$1.98¢988
1
#22
2MS-E7251-00-00
GEAR, 5TH WHEEL (23T)
$53.43¢26 713
1
#23
2MS-E7211-00-00
GEAR, 1ST WHEEL (35T)
$67.50¢33 750
1
#24
90387-20814-00
COLLAR
$10.65¢5 325
1
#25
90201-20276-00
WASHER, PLATE (T=1.0)
$7.81¢3 906
1
#26
93311-420Y3-00
BEARING
$31.23¢15 613
1
#27
93101-20802-00
OIL SEAL
$10.86¢5 431
1
#28
1WD-17424-00-00
CIRCLIP 1
$3.79¢1 894
1
#29
278-17425-00-00
CIRCLIP 2
$8.95¢4 475
1
#30
93102-35808-00
OIL SEAL (replaces 93102-35803-00)
$14.06¢7 031
1
#31
1WD-E7460-00-00
SPROCKET, DRIVE (14T)
$48.22¢24 112
1
#32
90201-20023-00
WASHER, PLATE
$8.03¢4 013
1
#33
90179-20010-00
NUT
$22.65¢11 325
1
