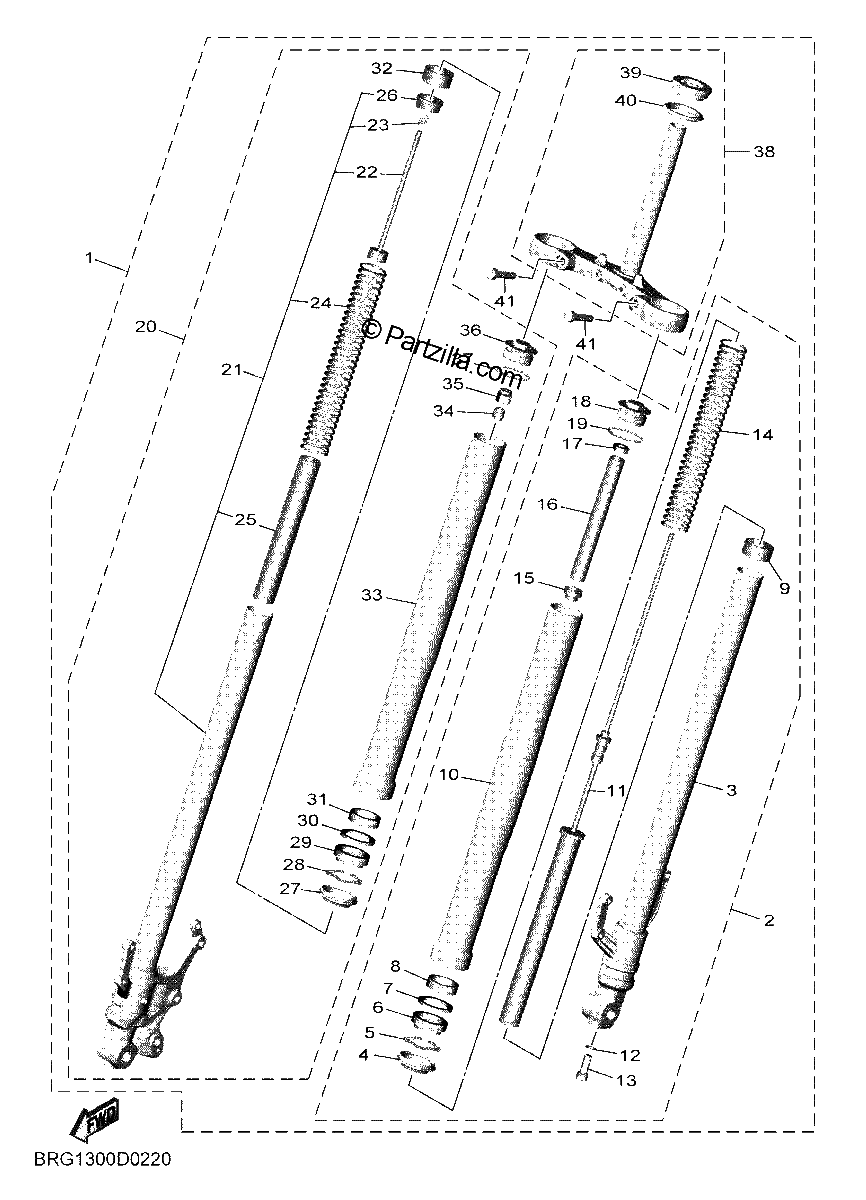

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY
$948.74¢474 369
#2
DAMPER ASSY (LH)
$524.14¢262 068
#3
INNER TUBE COMP.1
$190.99¢95 496
#4
SEAL, dust
$26.96¢13 478
#5
RING,SNAP
$8.26¢4 129
#6
OIL SEAL (BK61)
$7.82¢3 910
#7
WASHER, SPRING UPR This item has been discontinued and may not be available. Contact us for more information.
$8.45¢4 226
#8
METAL,SLIDE 1
$33.92¢16 963
#9
PISTON, FRONT FORK (BK61)
$9.21¢4 606
#10
TUBE, OUTER (L.H)
$207.40¢103 701
#11
CYLINDER COMP, FRONT FORK
$196.89¢98 446
#12
Gasket
$4.20¢2 099
#13
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#14
SPRING, FRONT FORK
$28.68¢14 341
#15
GUIDE, SPRING (BK61)
$5.51¢2 754
#16
SPACER
$6.20¢3 099
#17
NUT (BK61)
$2.71¢1 357
#18
BOLT, cap
$48.00¢24 001
#19
O-RING
$5.23¢2 616
#20
DAMPER ASSY (RH)
$458.79¢229 396
#21
INNER TUBE COMP2
$226.08¢113 039
#22
ROD COMP
$23.47¢11 736
#23
SPRING, SHOCK ABSORBER 2 (BK61
$5.55¢2 777
#24
SPRING, FRONT FORK
$28.68¢14 341
#25
SPACER
$7.53¢3 766
#26
CAP (BK61)
$13.50¢6 751
#27
SEAL, dust
$26.96¢13 478
#28
RING,SNAP
$8.26¢4 129
#29
OIL SEAL (BK61)
$7.82¢3 910
#30
WASHER, SPRING UPR This item has been discontinued and may not be available. Contact us for more information.
$8.45¢4 226
#31
METAL,SLIDE 1
$33.92¢16 963
#32
PISTON, FRONT FORK (BK61)
$9.21¢4 606
#33
TUBE, OUTER (L.H)
$207.40¢103 701
#34
BUMP, STOP (BK61)
$7.92¢3 962
#35
NUT, SPECIAL (BK61)
$7.06¢3 530
#36
BOLT, cap
$48.00¢24 001
#37
O-RING
$5.23¢2 616
#38
UNDER BRACKET ASSY
$231.05¢115 523
#39
BEARING
$60.89¢30 446
#40
SEAL, STEERING
$23.48¢11 742
#41
BOLT 1
$5.72¢2 858
