TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

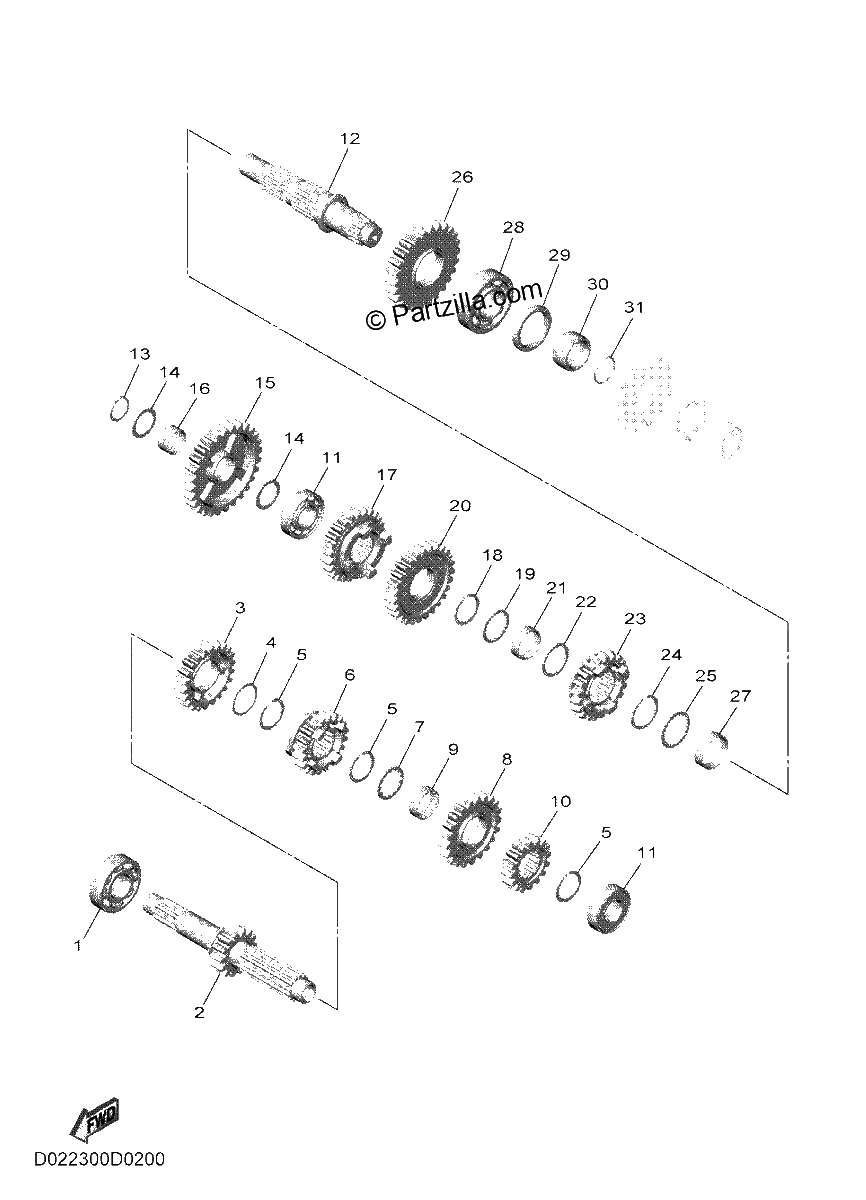

Diagrama de TRANSMISSION

Repuestos

#1
93306-27210-00
BEARING
$24.05¢12 023
1
#2
BHR-17411-00-00
AXLE, MAIN
$212.62¢106 312
1
#3
BHR-17141-10-00
GEAR, 4TH PINION(22T)
$167.27¢83 634
1
#4
90201-253K0-00
WASHER, PLATE (T=1.0)
$6.76¢3 381
1
#5
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#6
BHR-17131-10-00
GEAR, 3RD PINION(20T)
$230.23¢115 115
1
#7
90209-21332-00
WASHER
$7.38¢3 691
1
#8
BHR-17151-10-00
GEAR, 5TH PINION(21T)
$120.75¢60 375
1
#9
90387-2113G-00
COLLAR
$39.77¢19 883
1
#10
BHR-17121-00-00
GEAR, 2ND PINION(16T)
$117.47¢58 736
1
#11
93306-00447-00
BEARING
$39.15¢19 573
1
#12
BHR-17402-00-00
DRIVE AXLE ASSY
$178.46¢89 229
1
#13
93410-20038-00
CIRCLIP
$2.86¢1 432
1
#14
90201-203E7-00
WASHER,PLATE
$7.91¢3 956
1
#15
BHR-17211-00-00
GEAR, 1ST WHEEL(28T)
$163.78¢81 892
1
#16
90387-20028-00
Collar
$22.29¢11 143
1
#17
BHR-17241-00-00
GEAR, 4TH WHEEL(25T)
$208.75¢104 374
1
#18
93440-25084-00
CIRCLIP
$4.47¢2 237
1
#19
90214-23002-00
WASHER, CLAW
$6.22¢3 111
1
#20
BHR-17231-00-00
GEAR, 3RD WHEEL(27T)
$147.04¢73 520
1
#21
90387-25041-00
COLLAR
$32.03¢16 014
1
#22
90201-25028-00
WASHER, PLATE
$11.12¢5 560
1
#23
BHR-17251-00-00
GEAR, 5TH WHEEL(21T)
$161.03¢80 517
1
#24
93440-28062-00
CIRCLIP,OUTER
$7.30¢3 651
1
#25
90209-26348-00
WASHER
$10.57¢5 284
1
#26
BHR-17221-00-00
GEAR, 2ND WHEEL(26T)
$157.65¢78 827
1
#27
90387-28032-00
COLLAR
$35.51¢17 756
1
#28
93306-20574-00
BEARING
$46.07¢23 034
1
#29
93102-32480-00
Oil Seal
$18.31¢9 154
1
#30
90387-25042-00
COLLAR
$38.90¢19 452
1
#31
93210-22164-00
O-RING
$7.19¢3 594
1
