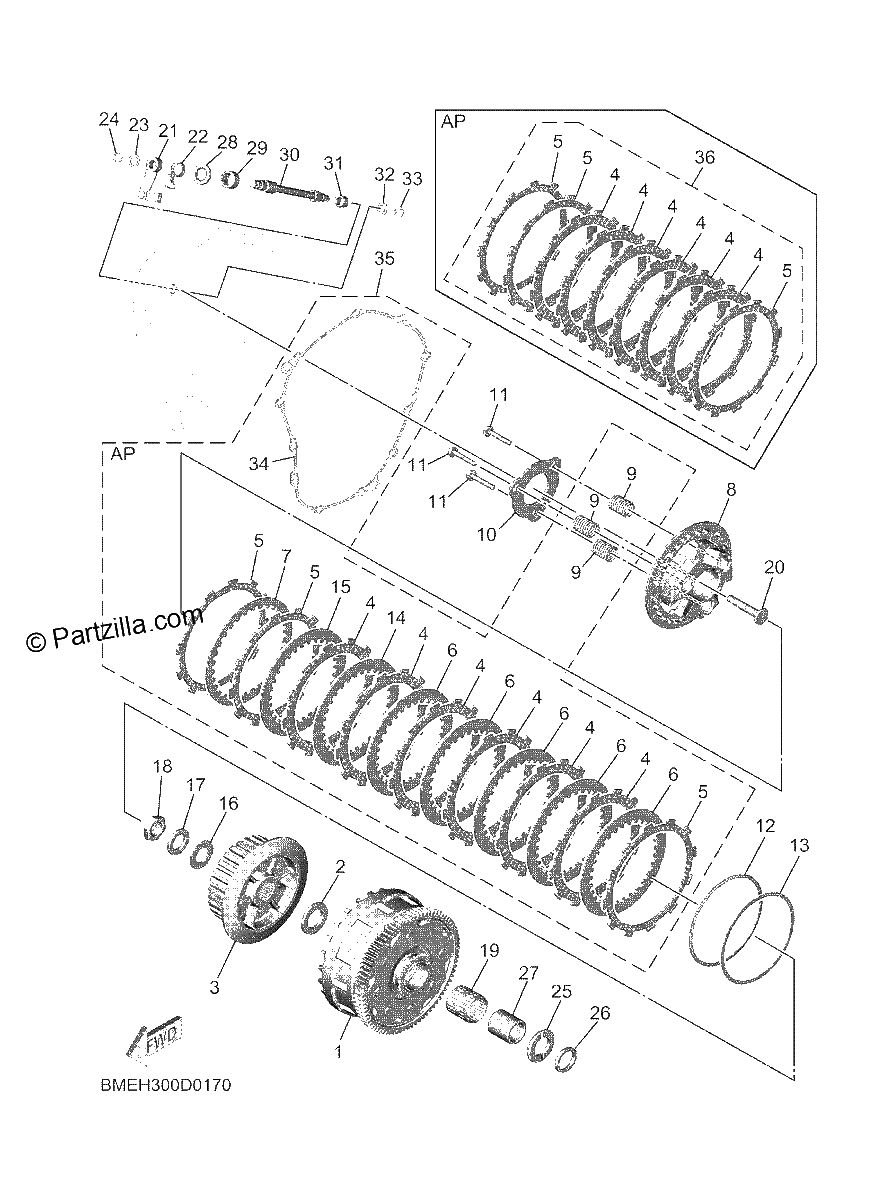

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PRIMARY DRIVEN GEAR COMP.
$464.24¢232 122
#2
PLATE, THRUST 1
$15.65¢7 826
#3
BOSS, CLUTCH
$134.41¢67 206
#4
PLATE, FRICTION
$12.04¢6 020
#5
PLATE, FRICTION 2
$20.68¢10 339
#6
PLATE, CLUTCH 2 *{(T2.0)}*
$11.60¢5 802
#7
PLATE, CLUTCH 1
$8.16¢4 082
#8
PRESSURE PLATE ASSY
$122.27¢61 134
#9
SPRING, COMPRESSION
$10.37¢5 187
#10
PLATE, PRESSURE 2
$8.56¢4 278
#11
SCREW, SPRING
$2.74¢1 368
#12
SPRING.,CUSHION
$29.29¢14 645
#13
PLATE, SEAT
$16.43¢8 217
#14
PLATE, CLUTCH 1 *{UR UN (T1.6)}*
$10.23¢5 118
#14
PLATE, CLUTCH 2 *{(T2.0)}*
$11.60¢5 802
#14
PLATE, CLUTCH 2 | UR
$21.83¢10 914
#15
PLATE, CLUTCH 1 *{UR UN (T1.6)}*
$10.23¢5 118
#15
PLATE, CLUTCH 2 *{(T2.0)}*
$11.60¢5 802
#15
PLATE, CLUTCH 2 | UR
$21.83¢10 914
#16
WASHER, PLATE
$6.73¢3 364
#17
WASHER, CONICAL SPRING
$16.09¢8 044
#18
NUT
$20.84¢10 419
#19
BEARING
$44.37¢22 184
#20
ROD, PUSH 1
$59.33¢29 664
#21
PUSH LEVER ASSY
$27.51¢13 754
#22
SPRING, TORSION
$5.78¢2 892
#23
WASHER, PLATE
$6.88¢3 439
#24
CIRCLIP
$4.28¢2 139
#25
PLATE, THRUST 2
$10.95¢5 474
#26
PLATE, THRUST 2
$9.95¢4 974
#27
SPACER 1
$64.05¢32 027
#28
OIL SEAL
$8.03¢4 013
#29
BEARING
$16.09¢8 044
#30
AXLE, PUSH LEVER
$69.60¢34 799
#31
BEARING
$21.90¢10 948
#32
WASHER, PLATE
$2.75¢1 374
#33
CIRCLIP
$3.31¢1 656
#34
GASKET, CRANKCASE COVER 2
$14.34¢7 170
#35
CLUTCH PLATE KIT
$295.41¢147 706
#36
FRICTION PLATE KIT
$144.92¢72 461
