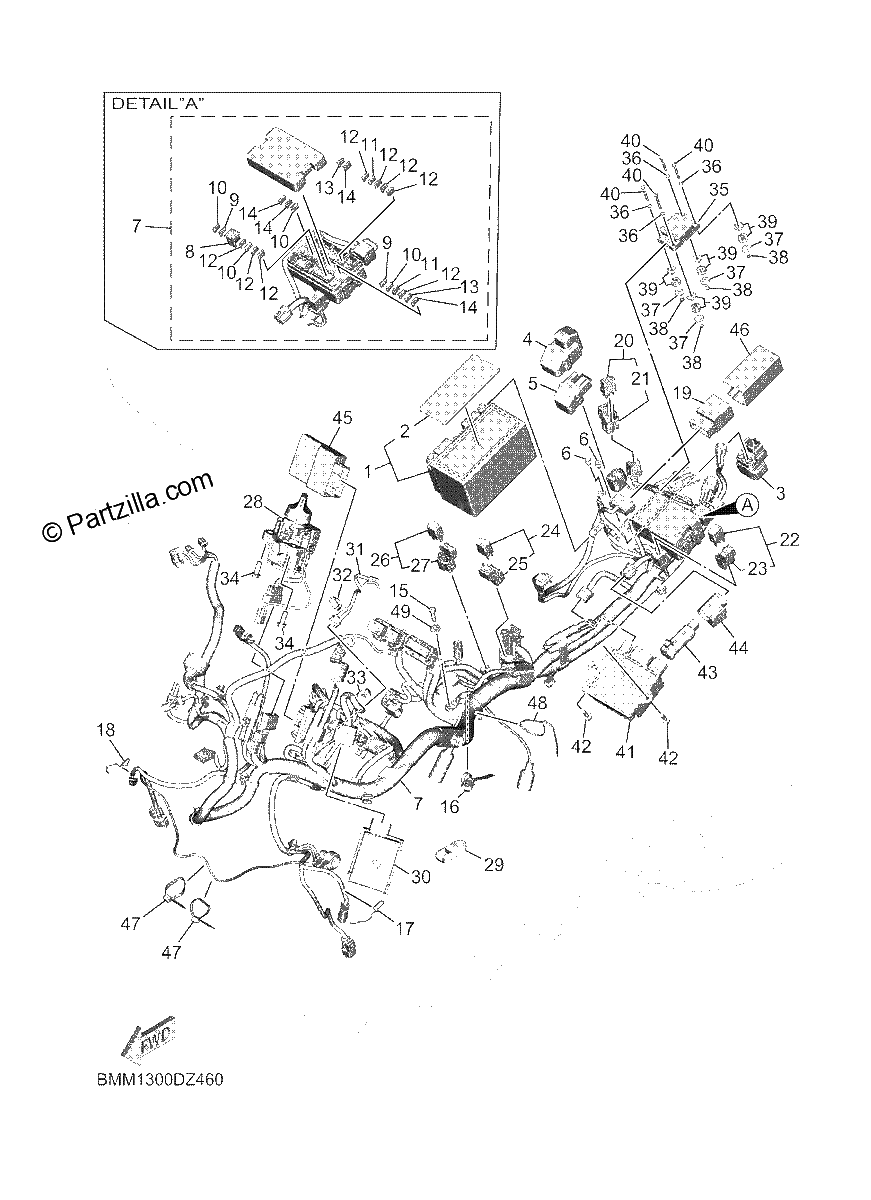

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BATTERY ASSY (YUASA YTZ10S)
$297.68¢148 839
#2
SEAL, BATTERY
$5.92¢2 961
#3
STARTER RELAY ASSY
$57.19¢28 595
#4
COVER
$11.05¢5 526
#5
COVER, LEAD WIRE
$4.66¢2 329
#6
BOLT, FLANGE
$0.41¢207
#7
WIRE HARNESS ASSY *{FOR CAL}*
$1289.14¢644 569
#8
FUSE (50A)
$16.16¢8 079
#9
. FUSE (30A)
$12.67¢6 336
#10
. FUSE (15A)
$12.67¢6 336
#11
. FUSE (10A)
$12.67¢6 336
#12
. FUSE (75A)
$12.67¢6 336
#13
FUSE (5A)
$12.56¢6 279
#14
. FUSE (2A)
$12.67¢6 336
#15
BOLT (4FL)
$2.39¢1 196
#16
CLAMP
$6.96¢3 479
#17
CLAMP
$2.55¢1 277
#18
CLAMP
$2.55¢1 277
#19
RELAY ASSY (G8R-30Y-W5)
$56.00¢28 002
#20
RELAY ASSY (1TP-00)
$14.34¢7 170
#21
HOLDER, RELAY
$7.38¢3 691
#22
RELAY ASSY (1TP-00)
$14.34¢7 170
#23
HOLDER, RELAY
$7.38¢3 691
#24
RELAY ASSY (1TP-00)
$14.34¢7 170
#25
HOLDER, RELAY
$7.38¢3 691
#26
RELAY ASSY (1TP-00)
$14.34¢7 170
#27
HOLDER, RELAY
$7.38¢3 691
#28
MAIN SWITCH ASSY
$369.99¢184 995
#29
XMTR COMP
$400.91¢200 456
#30
RECEIVER COMPLETE
$406.89¢203 447
#31
BUZZER
$38.49¢19 245
#32
CLAMP
$6.87¢3 433
#33
Clamp
$1.49¢747
#34
BOLT, FLANGE
$7.56¢3 778
#35
INERTIAL MEASURE, UNIT ASSY
$505.99¢252 994
#36
WASHER, PLATE
$1.10¢552
#37
WASHER, PLATE
$1.28¢638
#38
.. NUT, U
$7.84¢3 922
#39
GROMMET AND COLLAR SET
$22.06¢11 029
#40
BOLT,HEX.SOCKET HEAD
$4.00¢2 001
#41
GENERATOR CONTROL UNIT
$432.85¢216 424
#42
BOLT, FLANGE DEEP RECESS
$1.28¢638
#43
USB ASSY
$161.30¢80 649
#44
BAND
$9.34¢4 669
#45
BODY CONT,MODULE ASSY
$418.98¢209 490
#46
COVER 1
$8.96¢4 479
#47
Clamp
$3.04¢1 518
#48
BAND
$4.52¢2 260
#49
WASHER, PLATE
$3.73¢1 863
