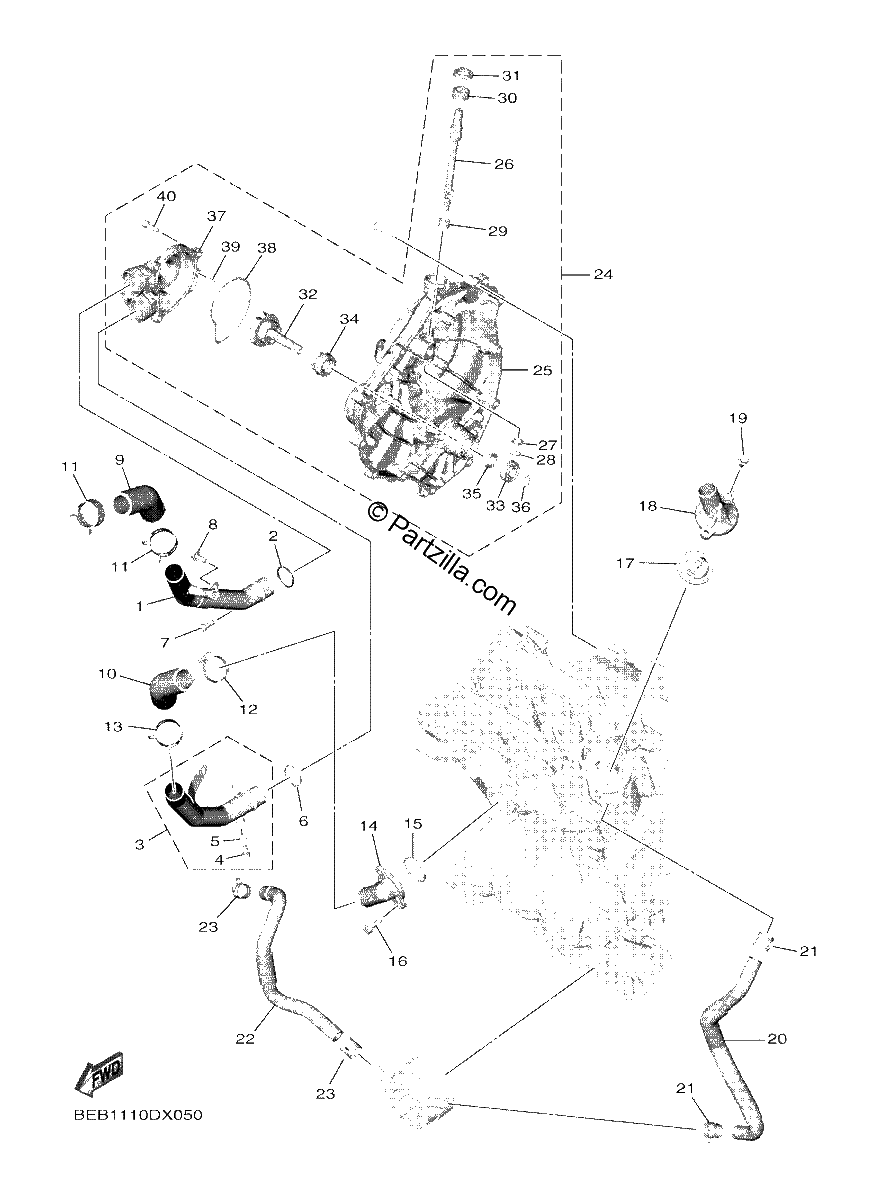

WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PIPE 1
$75.89¢37 944
#2
O-RING
$6.30¢3 151
#3
PIPE 2
$86.31¢43 154
#4
BOLT, FLANGE
$5.97¢2 984
#5
GASKET
$7.59¢3 795
#6
O-RING
$6.30¢3 151
#7
BOLT, HEXAGON SOCKET HEAD
$3.86¢1 932
#8
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
#9
HOSE 1
$9.07¢4 537
#10
HOSE 1
$9.07¢4 537
#11
CLIP
$16.09¢8 044
#12
HOSE CLAMP ASSY
$5.76¢2 881
#13
CLIP
$16.09¢8 044
#14
JOINT 1
$39.95¢19 976
#15
O-RING
$5.30¢2 651
#16
BOLT, FLANGE
$3.05¢1 524
#17
THERMOSTAT ASSY
$36.86¢18 429
#18
COVER, THERMOSTAT
$51.58¢25 789
#19
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
#20
HOSE 5
$32.81¢16 405
#21
CLIP
$2.51¢1 254
#22
HOSE 6
$29.76¢14 881
#23
CLIP
$2.51¢1 254
#24
WATER PUMP ASSY
$386.05¢193 027
#25
COVER, CRANKCASE 2
$127.89¢63 946
#26
AXLE, PUSH LEVER
$80.04¢40 020
#27
WASHER, PLATE
$2.75¢1 374
#28
CIRCLIP
$3.31¢1 656
#29
BEARING
$21.90¢10 948
#30
BEARING
$16.09¢8 044
#31
OIL SEAL
$8.03¢4 013
#32
IMPELLER SHAFT ASSY
$33.06¢16 531
#33
. Bearing
$27.84¢13 921
#34
SEAL, MECHANICAL
$58.28¢29 141
#35
SEAL
$9.56¢4 778
#36
CIRCLIP
$3.37¢1 685
#37
COVER, HOUSING
$53.06¢26 531
#38
O-RING
$7.38¢3 691
#39
PIN, DOWEL
$1.81¢903
#40
BOLT, HEXAGON SOCKET HEAD
$2.24¢1 121
