REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

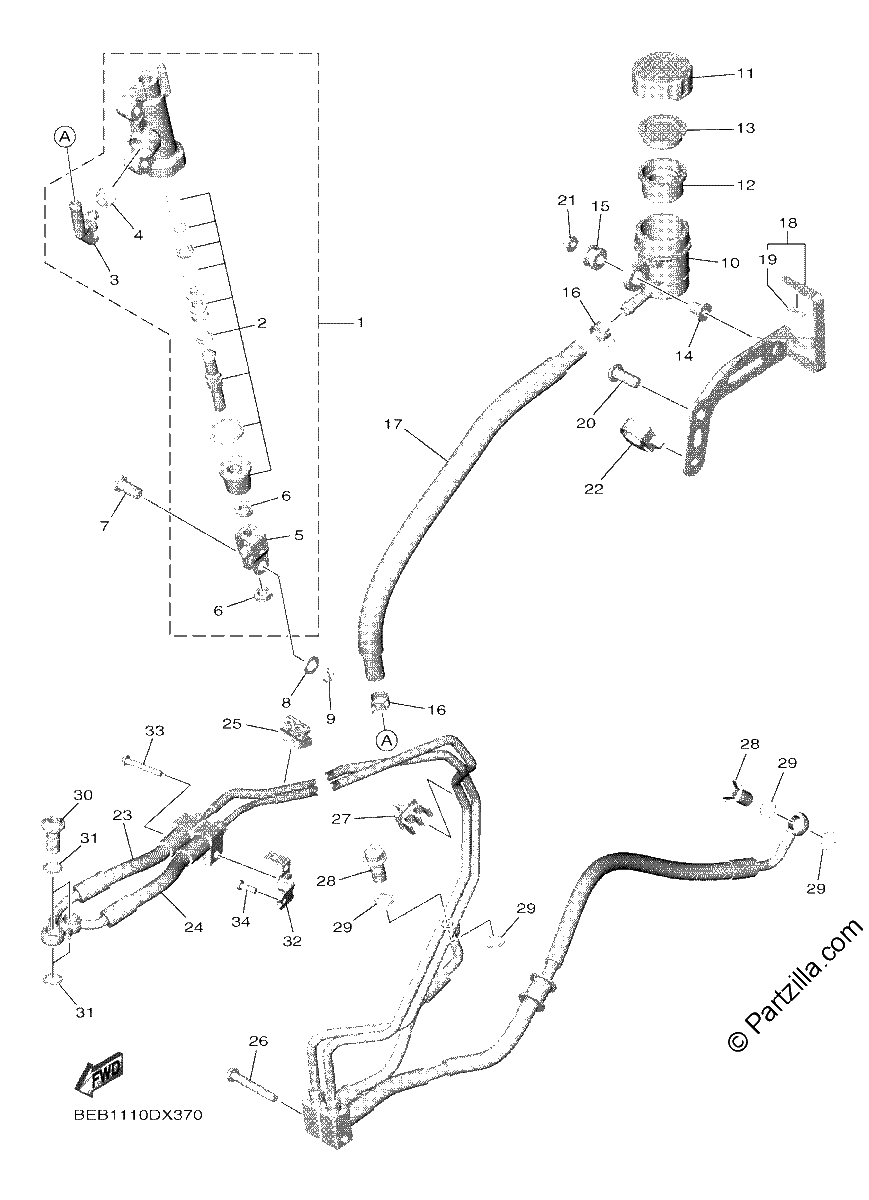

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
56P-2583V-01-00
RR. MASTER CYLINDER ASSY.
$160.45¢80 225
1
#2
56P-25808-50-00
CYLINDER KIT, MASTER
$100.86¢50 431
1
#3
2D1-2582A-01-00
JOINT
$121.80¢60 900
1
#4
4BP-2585F-01-00
O-RING
$11.39¢5 694
1
#5
4BP-27222-02-00
JOINT
$32.13¢16 063
1
#6
90170-08010-00
NUT
$7.49¢3 744
1
#7
90240-08005-00
PIN, CLEVIS
$7.34¢3 669
1
#8
90201-08070-00
WASHER, plate
$7.67¢3 838
1
#9
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#10
14B-25894-00-00
TANK, RESERVOIR
$66.19¢33 094
1
#11
2C0-25852-00-00
CAP, RESERVOIR
$6.84¢3 419
1
#12
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$23.38¢11 688
1
#13
2VN-25855-00-00
BUSH,DIAPHRAGM
$11.34¢5 669
1
#14
90387-05028-00
COLLAR
$6.95¢3 475
1
#15
2C0-26326-00-00
GROMMET
$6.42¢3 213
1
#16
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$6.25¢3 125
1
#17
BEB-25895-50-00
HOSE, RESERVOIR
$12.54¢6 269
1
#18
BEB-2740A-00-00
BRACKET SUB ASSY (LEFT)
$20.00¢10 000
1
#19
90520-01002-00
DAMPER, PLATE
$7.46¢3 731
1
#20
90149-08002-00
SCREW
$9.09¢4 544
1
#21
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#22
90464-17008-00
CLAMP
$2.40¢1 200
1
#23
BEB-2584D-02-00
HOSE, BRAKE
No Disponible
1
#24
BEB-2584E-02-00
BRAKE HOSE ASSY 5
No Disponible
1
#25
90464-07014-00
CLAMP
$2.75¢1 375
1
#26
92012-06040-00
BOLT, BUTTON HEAD
$3.96¢1 981
1
#27
90464-07009-00
CLAMP
$2.20¢1 100
1
#28
90401-10020-00
BOLT, UNION
$9.86¢4 931
1
#29
90430-10005-00
GASKET
$8.39¢4 194
1
#30
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#31
90430-10005-00
GASKET
$8.39¢4 194
1
#32
BEB-2175T-00-00
BRACKET 1
$13.31¢6 656
1
#33
92012-06040-00
BOLT, BUTTON HEAD
$3.96¢1 981
1
#34
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
