CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

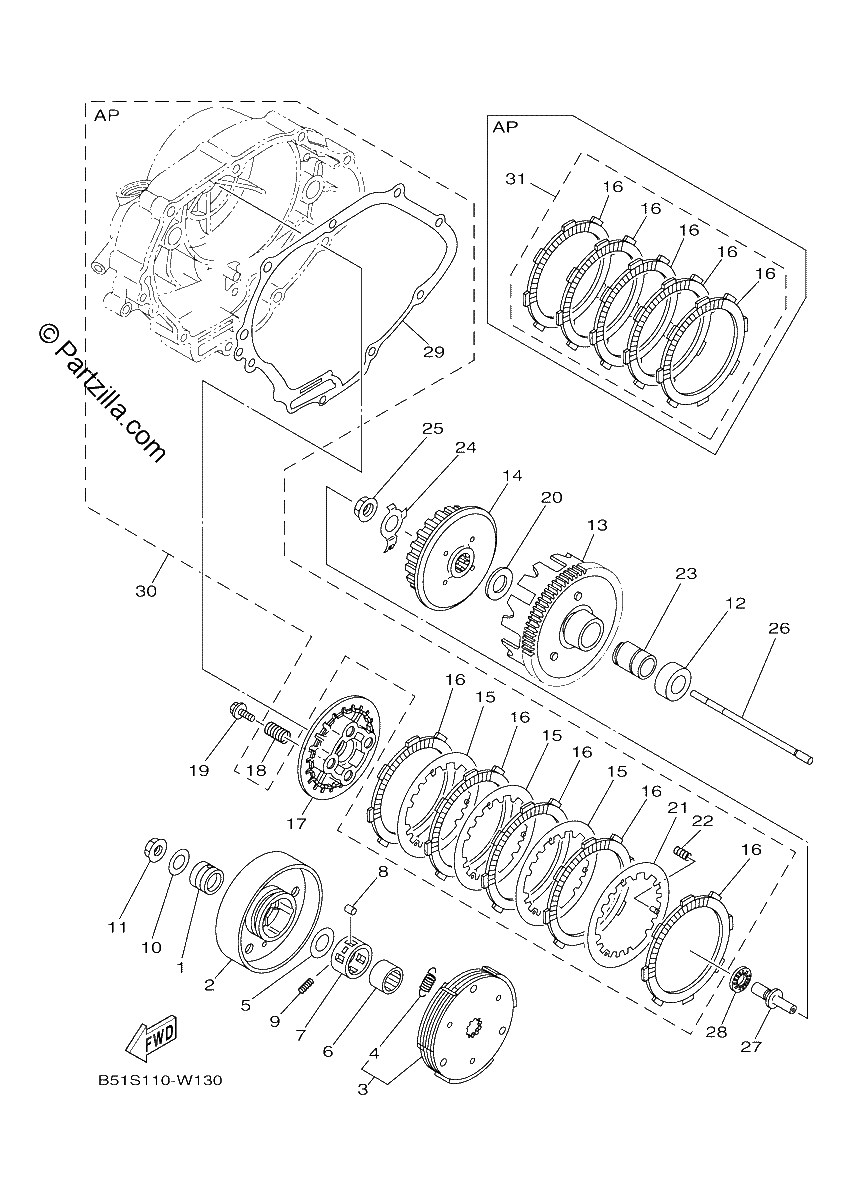

Diagrama de CLUTCH

Repuestos

#1
90387-16803-00
COLLAR
$41.06¢20 531
1
#2
2P2-E6611-00-00
CLUTCH HOUSING COMP.
$51.95¢25 975
1
#3
2P2-E6620-01-00
CLUTCH CARRIER ASSY
$295.32¢147 663
1
#4
2P2-E6626-00-00
SPRING, CLUTCH WEIGH
$1.14¢569
1
#5
90201-167P7-00
WASHER, plate
$10.00¢5 000
1
#6
5LM-E6512-00-00
BOSS, CLUTCH HOUSING
$64.40¢32 200
1
#7
5D9-E6586-00-00
CAGE (5D93,31B3)
$2.41¢1 206
1
#8
93606-10800-00
Pin, Dowel
$3.26¢1 631
1
#9
90501-04800-00
SPRING, COMPRESSIO
$2.20¢1 100
1
#10
90201-12019-00
WASHER, plate
$5.56¢2 781
1
#11
90179-12659-00
NUT, (1FE) (replaces 90179-12813-00)
$6.40¢3 200
1
#12
90560-17384-00
SPACER
$18.45¢9 225
1
#13
2P2-E6150-00-00
PRIMARY DRIVEN GEAR
$88.15¢44 075
1
#14
2P2-E6371-00-00
BOSS, CLUTCH (2P21)
$17.43¢8 713
1
#15
2P2-E6324-00-00
PLATE, CLUTCH 1 (2P2
$2.79¢1 394
1
#16
2P2-E6321-00-00
PLATE, FRICTION (2P2
$9.91¢4 956
1
#17
2P2-E6351-00-00
PLATE, PRESSURE 1 (2
$12.35¢6 175
1
#18
90501-203G2-00
SPRING, COMPRESSION(
$3.41¢1 706
1
#19
90119-05827-00
BOLT, WITH WASHER
$3.31¢1 656
1
#20
90201-178J5-00
WASHER, PLATE
$5.07¢2 537
1
#21
2P2-E6350-00-00
PRESSURE PLATE ASSY
$10.22¢5 113
1
#22
90501-050F1-00
SPRING, COMPRESSION(
$4.92¢2 463
1
#23
90387-17004-00
Collar
$15.18¢7 588
1
#24
5TP-E6135-00-00
WASHER, LOCK
$8.06¢4 031
1
#25
90179-14001-00
Nut
$10.55¢5 275
1
#26
5LM-E6357-00-00
ROD, PUSH 2
$9.91¢4 956
1
#27
5LM-E6356-01-00
ROD, PUSH 1 (JUPITER
$31.19¢15 594
1
#28
93340-210Y0-00
BEARING
$9.31¢4 656
1
#29
4ST-E5461-11-00
GASKET, CRANKCASE COVER 2
$13.70¢6 850
1
#30
B51-W001G-00-00
CLUTCH PLATE KIT
$155.84¢77 919
1
#31
B51-W001M-00-00
FRICTION PLATE KIT
$138.90¢69 450
1
