FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

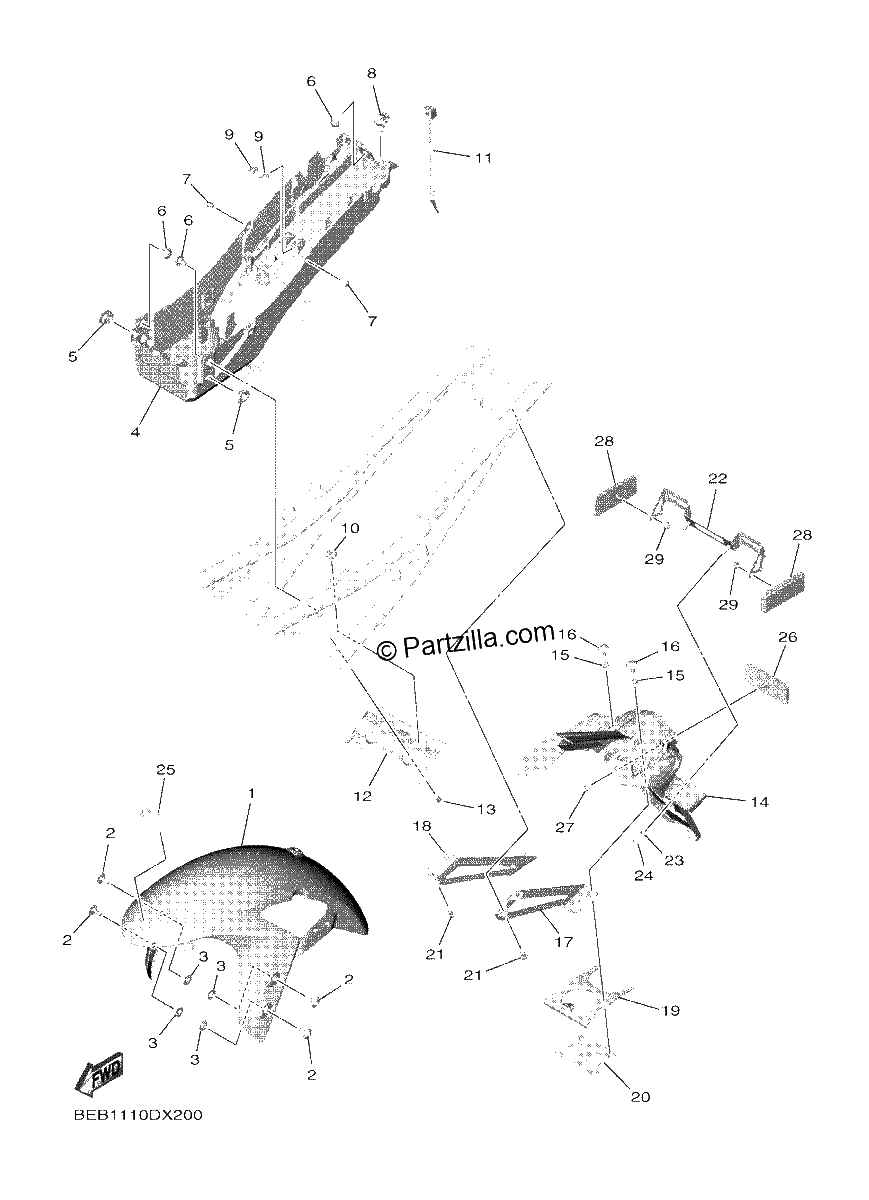

Diagrama de FENDER

Repuestos

#1
BEB-21511-00-P5
FENDER, FRONT *{UR FOR MNM3}*
$147.17¢73 583
1
#2
90111-06196-00
BOLT, HEXAGON SOCKET BUTTON
$1.91¢954
1
#3
90387-07717-00
COLLAR
$6.75¢3 375
1
#4
BEB-8212B-00-00
BOX, BATTERY 1
$44.95¢22 477
1
#5
90480-01559-00
Grommet
$5.27¢2 633
1
#6
90109-06202-00
BOLT
$2.98¢1 489
1
#7
90338-06018-00
PLUG
$6.22¢3 111
1
#8
90464-18002-00
CLAMP
$7.59¢3 795
1
#9
90183-04039-00
NUT, SPRING
$6.46¢3 231
1
#10
90480-14100-00
GROMMET
$7.07¢3 536
1
#11
90465-13275-00
CLAMP
$4.77¢2 386
1
#12
1WS-21642-01-00
GUARD, FLAP
$6.22¢3 111
1
#13
90269-06002-00
RIVET
$6.75¢3 375
1
#14
BEB-21629-00-00
GUARD, MUD
$73.93¢36 967
1
#15
90387-06372-00
COLLAR
$5.93¢2 967
1
#16
90111-06089-00
BOLT,HEX. SOCKET BUTTON
$6.87¢3 433
1
#17
BEB-2164F-00-00
STAY 1
$23.33¢11 667
1
#18
BEB-2164G-00-00
STAY 2
$21.34¢10 672
1
#19
BAT-21682-00-00
STAY, PLATE
$13.50¢6 751
1
#20
BAT-2161G-00-00
BRACKET 6
$9.77¢4 887
1
#21
90105-06226-00
Bolt, Flange
$0.99¢494
1
#22
2RC-84751-00-00
BRACKET, LICENSE
$32.60¢16 301
1
#23
92902-06600-00
WASHER, plate
$3.13¢1 564
1
#24
95602-06100-00
NUT, SELF-LOCKING
$2.63¢1 317
1
#25
99247-00080-00
EMBLEM, YAMAHA
$13.01¢6 503
1
#26
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#27
95602-05200-00
NUT, SELF-LOCKING
$7.51¢3 755
1
#28
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#29
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
