TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

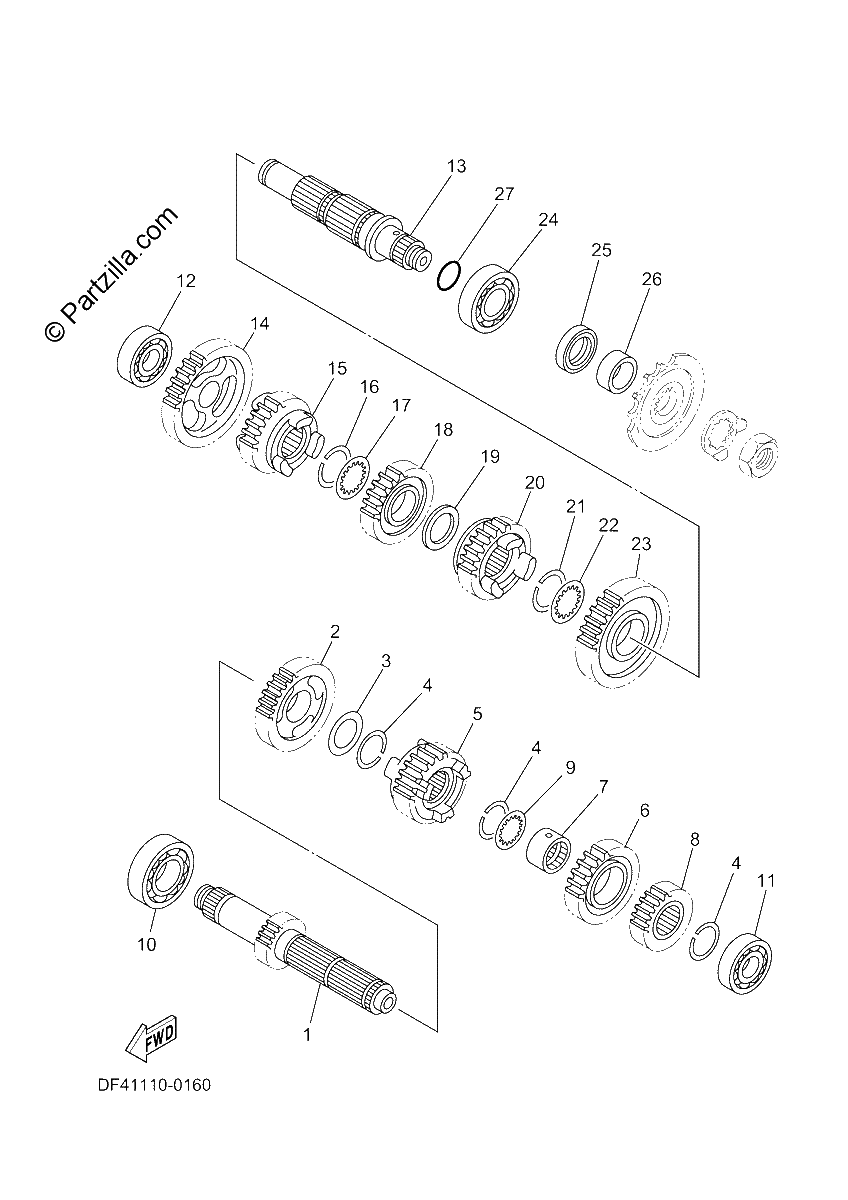

Diagrama de TRANSMISSION

Repuestos

#1
5BE-17411-00-00
AXLE, MAIN (14T)
$158.56¢79 281
1
#2
BF1-17151-00-00
GEAR, 5TH PINION (25T)
$75.22¢37 613
1
#3
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#4
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#5
5BF-17131-21-00
GEAR, 3RD PINION (16T)
$196.21¢98 106
1
#6
5BF-17141-20-00
GEAR, 4TH PINION(20T)
$198.75¢99 375
1
#7
90387-2113G-00
COLLAR
$43.22¢21 612
1
#8
5JG-17121-10-00
GEAR, 2ND PINION (15T)
$86.66¢43 331
1
#9
90209-21332-00
WASHER
$8.03¢4 013
1
#10
93306-20540-00
BEARING
$59.36¢29 681
1
#11
93306-00442-00
BEARING
$41.89¢20 944
1
#12
93306-00426-00
BEARING
$43.60¢21 800
1
#13
5BE-17402-00-00
DRIVE AXLE ASSY
$171.68¢85 838
1
#14
5BE-17211-00-00
GEAR, 1ST WHEEL (27T)
$135.23¢67 613
1
#15
BF1-17251-00-00
GEAR, 5TH WHEEL (21T)
$83.67¢41 838
1
#16
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#17
90209-21332-00
WASHER
$8.03¢4 013
1
#18
5BF-17231-00-00
GEAR, 3RD WHEEL (21T)
$154.09¢77 044
1
#19
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#20
BF1-17241-00-00
GEAR, 4TH WHEEL (21T)
$116.15¢58 075
1
#21
93440-28062-00
CIRCLIP,OUTER
$7.94¢3 969
1
#22
90209-26348-00
WASHER
$11.49¢5 744
1
#23
5JG-17221-10-00
GEAR, 2ND WHEEL (23T)
$147.53¢73 763
1
#24
93306-20574-00
BEARING
$50.08¢25 038
1
#25
93102-32337-00
. OIL SEAL
$19.44¢9 719
1
#26
90387-2515B-00
COLLAR
$21.44¢10 719
1
#27
93210-22298-00
O-RING
$7.81¢3 906
1
