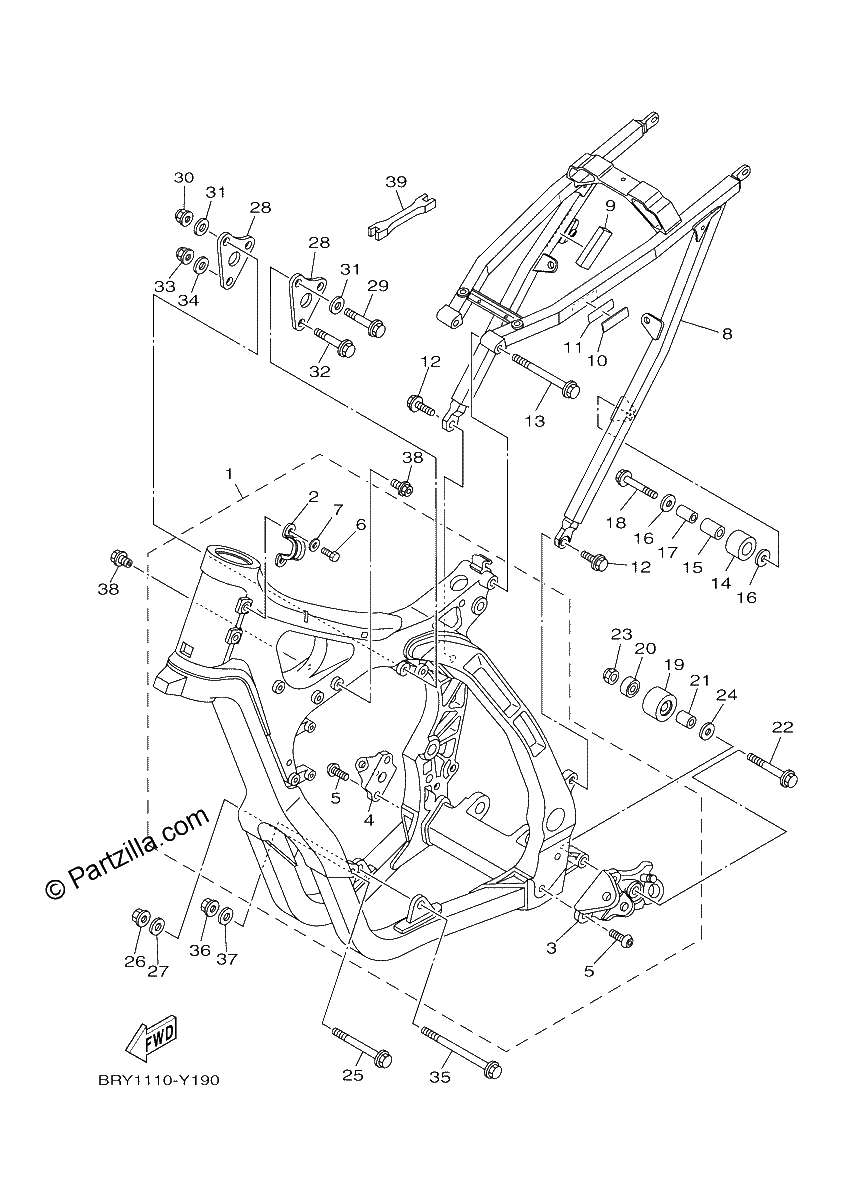

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FRAME COMP.
$3113.04¢1 556 519
#2
CLAMP, WIRE HARNESS 2
$9.65¢4 824
#3
BRACKET, FOOTREST
$326.28¢163 139
#4
BRACKET, FOOTREST
$35.53¢17 768
#5
SCREW
$5.97¢2 984
#6
BOLT
$6.75¢3 375
#7
WASHER
$0.61¢305
#8
REAR FRAME COMP
$435.91¢217 954
#9
SEAL
$2.27¢1 133
#10
PROTECTOR
$2.20¢1 098
#11
TAPE, 1
$6.30¢3 151
#12
BOLT, FLANGE
$5.54¢2 772
#13
BOLT, FLANGE
$4.22¢2 110
#14
TENSIONER
$34.55¢17 273
#15
BUSH
$3.90¢1 949
#16
WASHER, PLATE
$5.21¢2 605
#17
COLLAR
$7.38¢3 691
#18
BOLT, FLANGE DEEP RECESS
$0.85¢426
#19
TENSIONER
$42.53¢21 263
#20
BEARING
$12.25¢6 124
#21
COLLAR
$9.12¢4 560
#22
BOLT, FLANGE DEEP RECESS
$2.36¢1 179
#23
NUT, SELF-LOCKING
$7.44¢3 720
#24
WASHER, plate
$6.32¢3 162
#25
BOLT, FLANGE
$9.48¢4 738
#26
NUT,SPEC'L SHAPE
$8.49¢4 244
#27
WASHER
$3.14¢1 570
#28
BRACKET, REAR UPPER 1
$22.13¢11 063
#29
BOLT, FLANGE
$4.54¢2 271
#30
NUT(4KM)
$6.23¢3 117
#31
WASHER, PLATE
$6.76¢3 381
#32
BOLT, FLANGE
$5.66¢2 829
#33
NUT,SPEC'L SHAPE
$8.49¢4 244
#34
WASHER
$3.14¢1 570
#35
BOLT, FLANGE
$10.21¢5 106
#36
NUT,SPEC'L SHAPE
$8.49¢4 244
#37
WASHER
$3.14¢1 570
#38
NUT
$16.07¢8 033
#39
WRENCH, HEXAGON
$32.07¢16 037
