ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

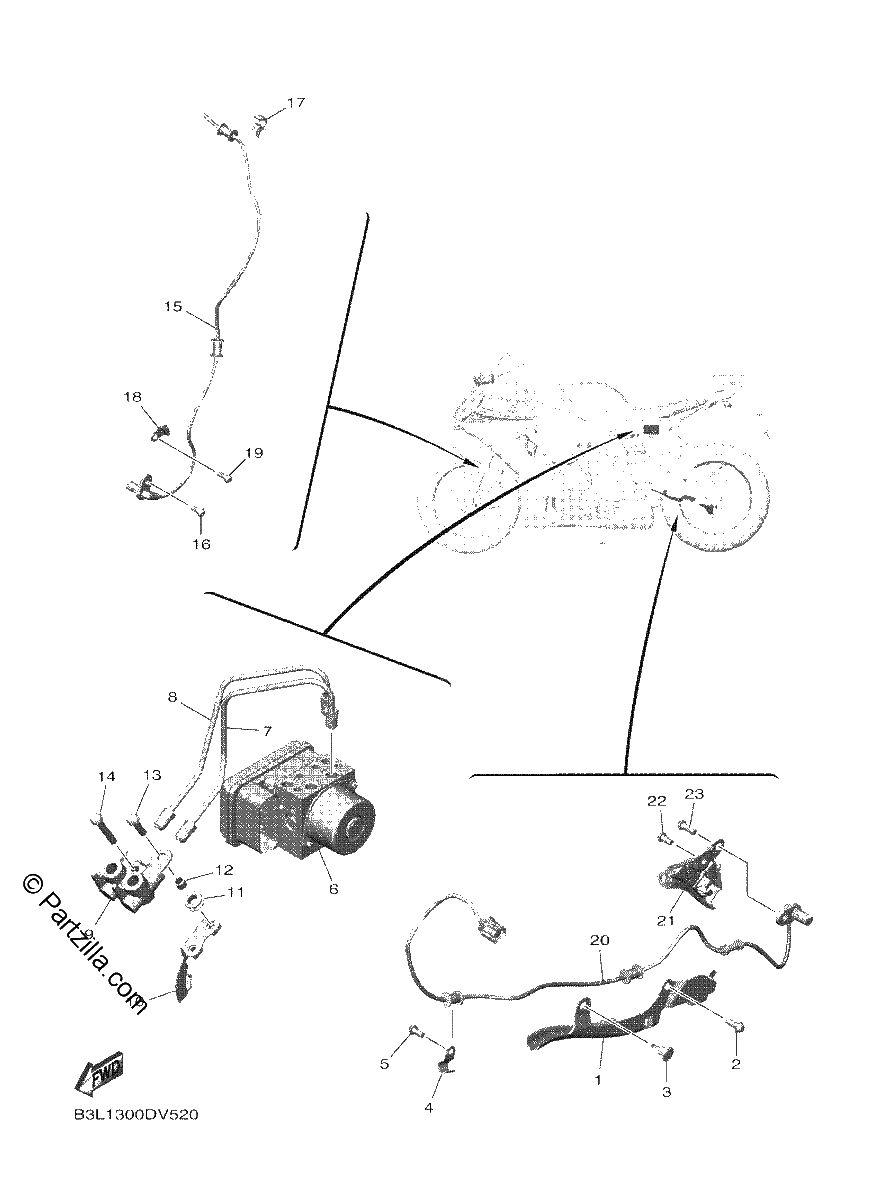

Diagrama de ELECTRICAL 3

Repuestos

#1
2CR-2219X-00-00
COVER
$17.36¢8 681
1
#2
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#3
90269-07007-00
RIVET
$4.00¢2 000
1
#4
2CR-2216F-00-00
HOOK
$5.45¢2 725
1
#5
92017-06012-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#6
B3L-85930-08-00
HYDRAULIC UNIT ASSY
$1107.49¢553 744
1
#7
B3L-25871-00-00
PIPE, BRAKE
$11.85¢5 925
1
#8
B3L-25882-00-00
PIPE, BRAKE 2
$11.23¢5 613
1
#9
2CR-25885-00-00
JOINT
$67.67¢33 838
1
#10
2CR-27251-00-00
BRACKET, CABLE
$13.27¢6 637
1
#11
90480-11006-00
GROMMET
$3.50¢1 750
1
#12
90387-066V8-00
COLLAR
$8.18¢4 088
1
#13
92017-06020-00
BOLT, BUTTON HEAD
$3.04¢1 519
1
#14
92017-06035-00
BOLT, BUTTON HEAD
$2.82¢1 412
1
#15
D45-85970-00-00
WHEEL SENSOR ASSY, FRONT
$167.71¢83 856
1
#16
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#17
90464-09129-00
CLAMP
$2.20¢1 100
1
#18
2CR-23317-00-00
HOLDER, CABLE
$10.74¢5 369
1
#19
92017-06014-00
BOLT, BUTTON HEAD
$3.33¢1 663
1
#20
2CR-85980-01-00
WHEEL SENSOR ASSY, REAR
$174.59¢87 294
1
#21
2CR-27491-01-00
PROTECTOR
$16.25¢8 125
1
#22
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#23
90109-06234-00
BOLT
$7.24¢3 619
1
