REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

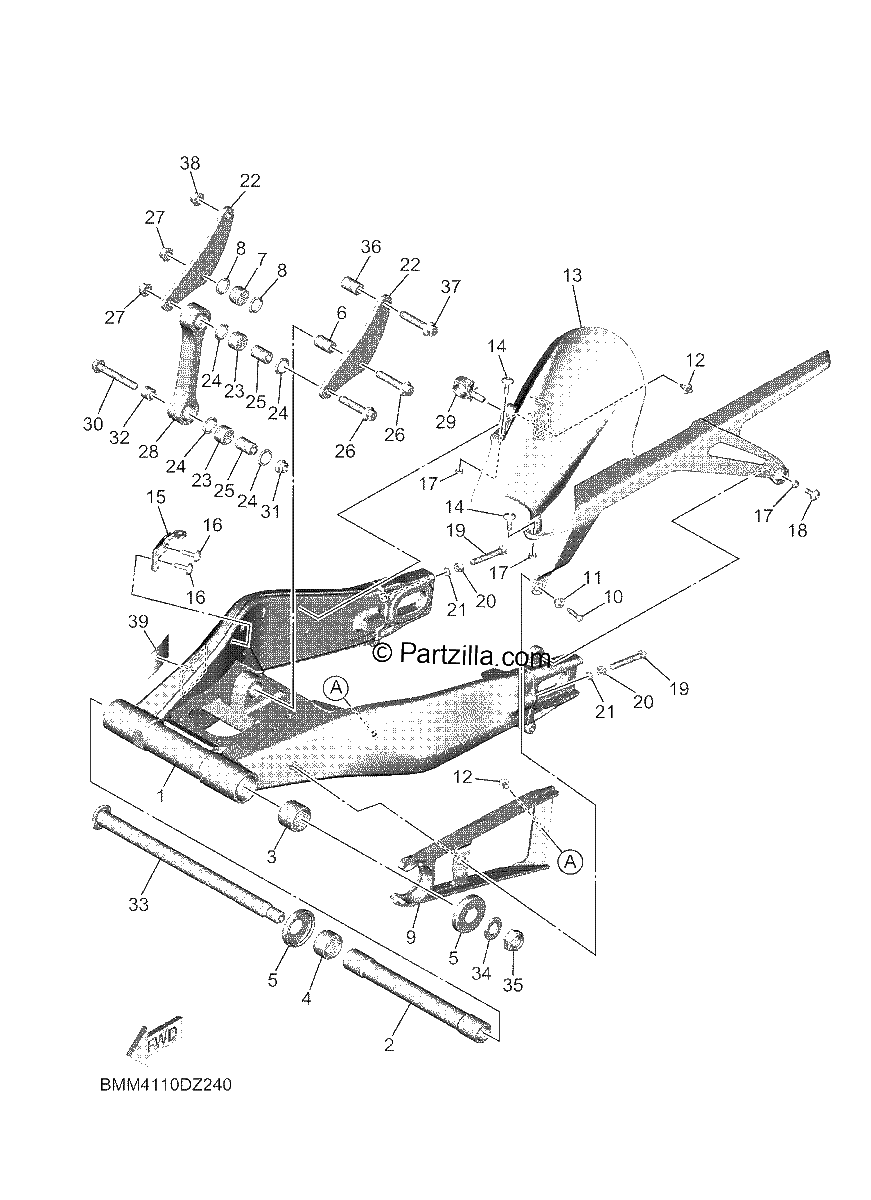

Diagrama de REAR ARM

Repuestos

#1
BAM-22110-10-00
REAR ARM COMP.
$1607.49¢803 744
1
#2
90387-22037-00
COLLAR
$85.81¢42 906
1
#3
93317-330A0-00
BEARING
$36.88¢18 438
1
#4
93317-330A1-00
BEARING
$35.21¢17 606
1
#5
5VY-22128-00-00
COVER, THRUST 1
$15.80¢7 900
1
#6
90387-1012A-00
COLLAR
$21.18¢10 588
1
#7
93315-31758-00
BEARING
$41.35¢20 675
1
#8
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#9
B7N-22151-00-00
SEAL, GUARD
$25.41¢12 706
1
#10
92012-06025-00
BOLT, BUTTON HEAD
$3.44¢1 719
1
#11
90387-062X0-00
COLLAR
$20.49¢10 244
1
#12
90269-07007-00
RIVET
$4.00¢2 000
1
#13
B7N-21650-01-00
REAR FENDER COMP.
$40.49¢20 244
1
#14
90149-06104-00
SCREW
$4.56¢2 281
1
#15
BME-22538-00-00
STAY
$16.06¢8 031
1
#16
90149-06104-00
SCREW
$4.56¢2 281
1
#17
90387-06372-00
COLLAR
$6.45¢3 225
1
#18
90111-06151-00
BOLT, HEX. SOCKET BUTTON
$3.17¢1 588
1
#19
90101-08013-00
BOLT
$3.57¢1 787
1
#20
95302-08600-00
NUT (6L2)
$8.09¢4 044
1
#21
90201-08052-00
WASHER, plate
$2.10¢1 050
1
#22
BME-2217A-00-00
ARM, RELAY
$25.36¢12 681
1
#23
93315-31758-00
BEARING
$41.35¢20 675
1
#24
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#25
90387-1012A-00
COLLAR
$21.18¢10 588
1
#26
90105-10030-00
BOLT, FLANGE
$8.99¢4 494
1
#27
95607-10200-00
NUT,SELF-LOCKING
$3.96¢1 981
1
#28
BME-2217M-00-00
ARM 1
$54.89¢27 444
1
#29
90464-20009-00
CLAMP
$2.31¢1 156
1
#30
90105-10211-00
BOLT, FLANGE
$7.09¢3 544
1
#31
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#32
90387-10043-00
COLLAR
$26.92¢13 462
1
#33
B7N-22141-00-00
SHAFT, PIVOT
$79.34¢39 669
1
#34
90201-18013-00
WASHER, PLATE
$7.39¢3 694
1
#35
90185-18009-00
NUT, SELF-LOCKING
$18.90¢9 450
1
#36
90387-10125-00
COLLAR
$8.30¢4 150
1
#37
90105-10030-00
BOLT, FLANGE
$8.99¢4 494
1
#38
95607-10200-00
NUT,SELF-LOCKING
$3.96¢1 981
1
#39
14B-21668-01-00
LABEL, TIRE
$3.61¢1 806
1
