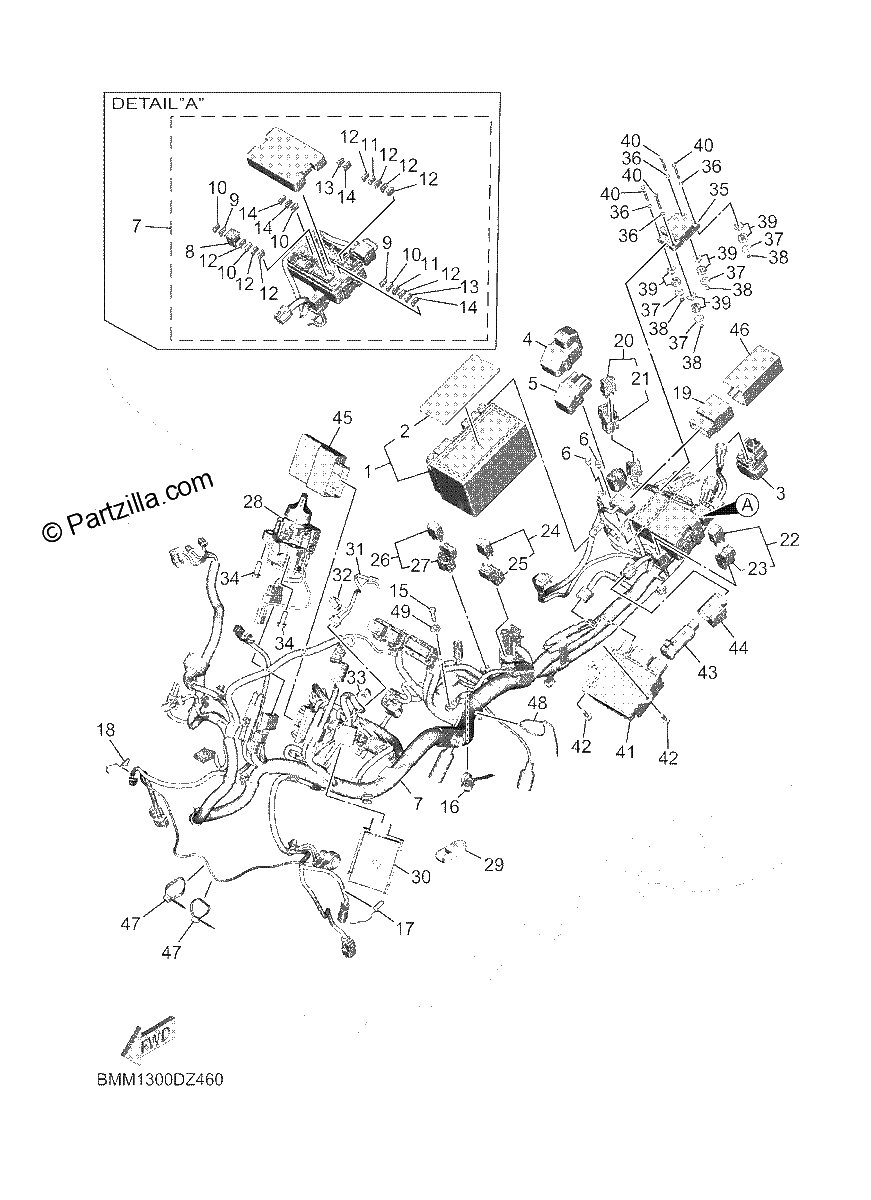

ELECTRICAL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BATTERY ASSY (YUASA YTZ10S)
$323.56¢161 781
#2
SEAL, BATTERY
$6.44¢3 219
#3
STARTER RELAY ASSY
$62.16¢31 081
#4
COVER
$12.01¢6 006
#5
COVER, LEAD WIRE
$5.06¢2 531
#6
BOLT, FLANGE
$0.45¢225
#7
WIRE HARNESS ASSY *{FOR U49}*
$1342.49¢671 244
#8
FUSE (50A)
$17.56¢8 781
#9
. FUSE (30A)
$13.77¢6 887
#10
. FUSE (15A)
$13.77¢6 887
#11
. FUSE (10A)
$13.77¢6 887
#12
. FUSE (75A)
$13.77¢6 887
#13
FUSE (5A)
$13.65¢6 825
#14
. FUSE (2A)
$13.77¢6 887
#15
BOLT (4FL)
$2.60¢1 300
#16
CLAMP
$7.56¢3 781
#17
CLAMP
$2.78¢1 388
#18
CLAMP
$2.78¢1 388
#19
RELAY ASSY (G8R-30Y-W5)
$60.88¢30 438
#20
RELAY ASSY (1TP-00)
$15.59¢7 794
#21
HOLDER, RELAY
$8.03¢4 013
#22
RELAY ASSY (1TP-00)
$15.59¢7 794
#23
HOLDER, RELAY
$8.03¢4 013
#24
RELAY ASSY (1TP-00)
$15.59¢7 794
#25
HOLDER, RELAY
$8.03¢4 013
#26
RELAY ASSY (1TP-00)
$15.59¢7 794
#27
HOLDER, RELAY
$8.03¢4 013
#28
MAIN SWITCH ASSY
$402.16¢201 081
#29
XMTR COMP
$435.77¢217 888
#30
RECEIVER COMPLETE
$442.27¢221 138
#31
BUZZER
$41.84¢20 919
#32
CLAMP
$7.46¢3 731
#33
Clamp
$1.63¢813
#34
BOLT, FLANGE
$8.21¢4 106
#35
INERTIAL MEASURE, UNIT ASSY
$549.99¢274 994
#36
WASHER, PLATE
$1.20¢600
#37
WASHER, PLATE
$1.39¢694
#38
.. NUT, U
$8.53¢4 263
#39
GROMMET AND COLLAR SET
$23.98¢11 988
#40
BOLT,HEX.SOCKET HEAD
$4.35¢2 175
#41
GENERATOR CONTROL UNIT
$470.49¢235 244
#42
BOLT, FLANGE DEEP RECESS
$1.39¢694
#43
USB ASSY
$175.32¢87 663
#44
BAND
$10.15¢5 075
#45
BODY CONT,MODULE ASSY
$455.41¢227 706
#46
COVER 1
$9.74¢4 869
#47
Clamp
$3.30¢1 650
#48
BAND
$4.91¢2 456
#49
WASHER, PLATE
$4.05¢2 025
