CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

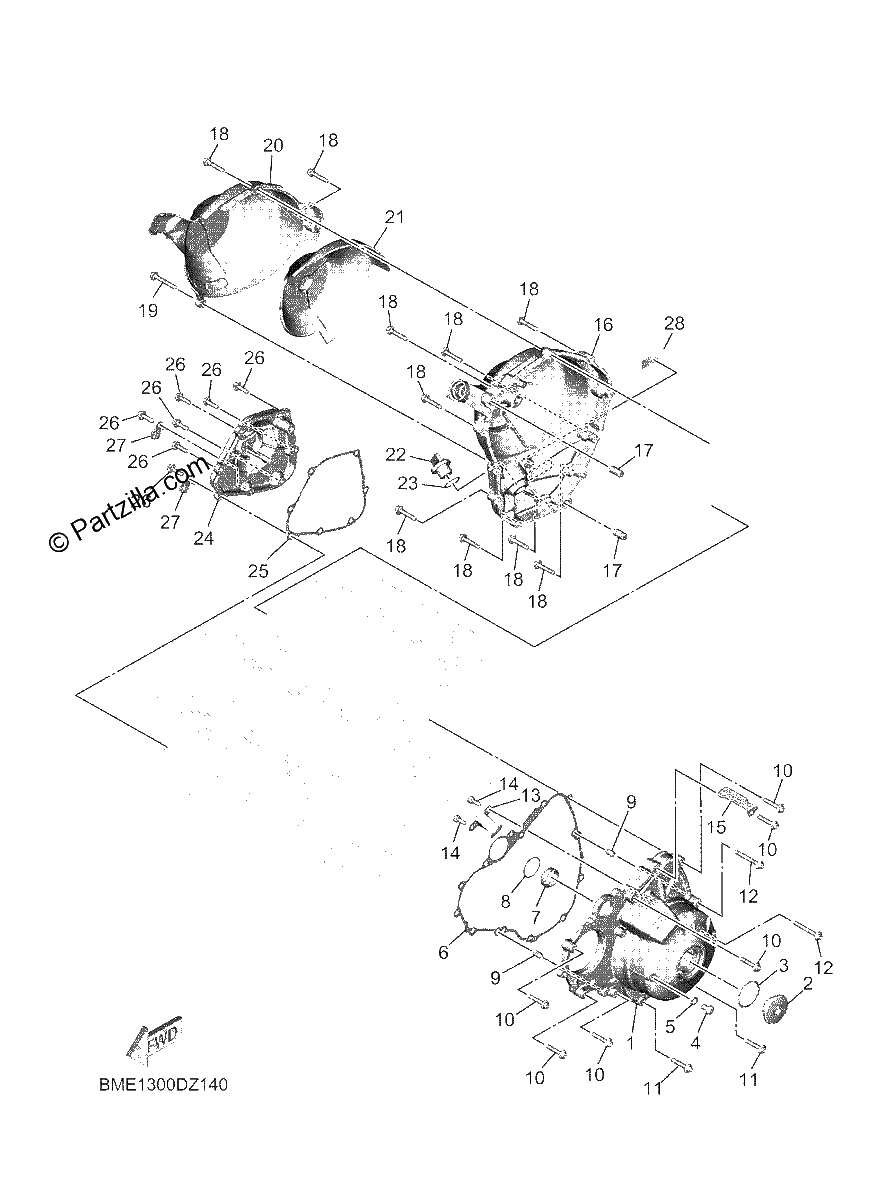

Diagrama de CRANKCASE COVER

Repuestos

#1
BME-15411-00-00
COVER, CRANKCASE 1 *{MDNM9}*
$127.02¢63 509
1
#2
90340-36008-00
PLUG, STRAIGHT SCREW
$19.34¢9 672
1
#3
93210-357A3-00
O-RING
$0.54¢270
1
#4
92017-08012-00
BOLT, BUTTON HEAD
$6.76¢3 381
1
#5
90430-08143-00
GASKET
$3.38¢1 691
1
#6
BD5-15451-01-00
GASKET, CRANKCASE COVER 1
$17.99¢8 993
1
#7
1RC-12564-00-00
PIPE, WATER
$6.51¢3 254
1
#8
93210-28543-00
O-RING
$3.10¢1 553
1
#9
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#10
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#11
90110-06389-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#12
90110-06394-00
BOLT, HEXAGON SOCKET HEAD
$1.94¢972
1
#13
1RC-15484-00-00
CLAMP 2
$5.07¢2 536
1
#14
90110-06168-00
BOLT, HEXAGON SOCKET HEAD
$5.20¢2 599
1
#15
B7N-14867-00-00
BRACKET
$4.76¢2 380
1
#16
B7N-15421-00-00
COVER, CRANKCASE 2
$140.33¢70 167
1
#17
93610-20189-00
PIN, DOWEL
$3.79¢1 897
1
#18
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#19
90110-06321-00
BOLT, HEXAGON SOCKET HEAD
$2.99¢1 495
1
#20
B7N-15499-00-00
PROTECTOR, COVER
$31.91¢15 956
1
#21
B7N-15789-00-00
DAMPER
$5.03¢2 513
1
#22
5GJ-15363-10-00
PLUG, OIL
$20.00¢9 999
1
#23
93210-19123-00
O-Ring
$7.58¢3 789
1
#24
B7N-15416-00-00
COVER, OIL PUMP
$59.86¢29 929
1
#25
B7N-15456-01-00
GASKET, OIL PUMP COVER 1
$11.36¢5 681
1
#26
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
#27
BME-15484-00-00
CLAMP 2
$8.73¢4 364
1
#28
B5Y-1548B-00-00
OIL, LABEL
$4.55¢2 277
1
