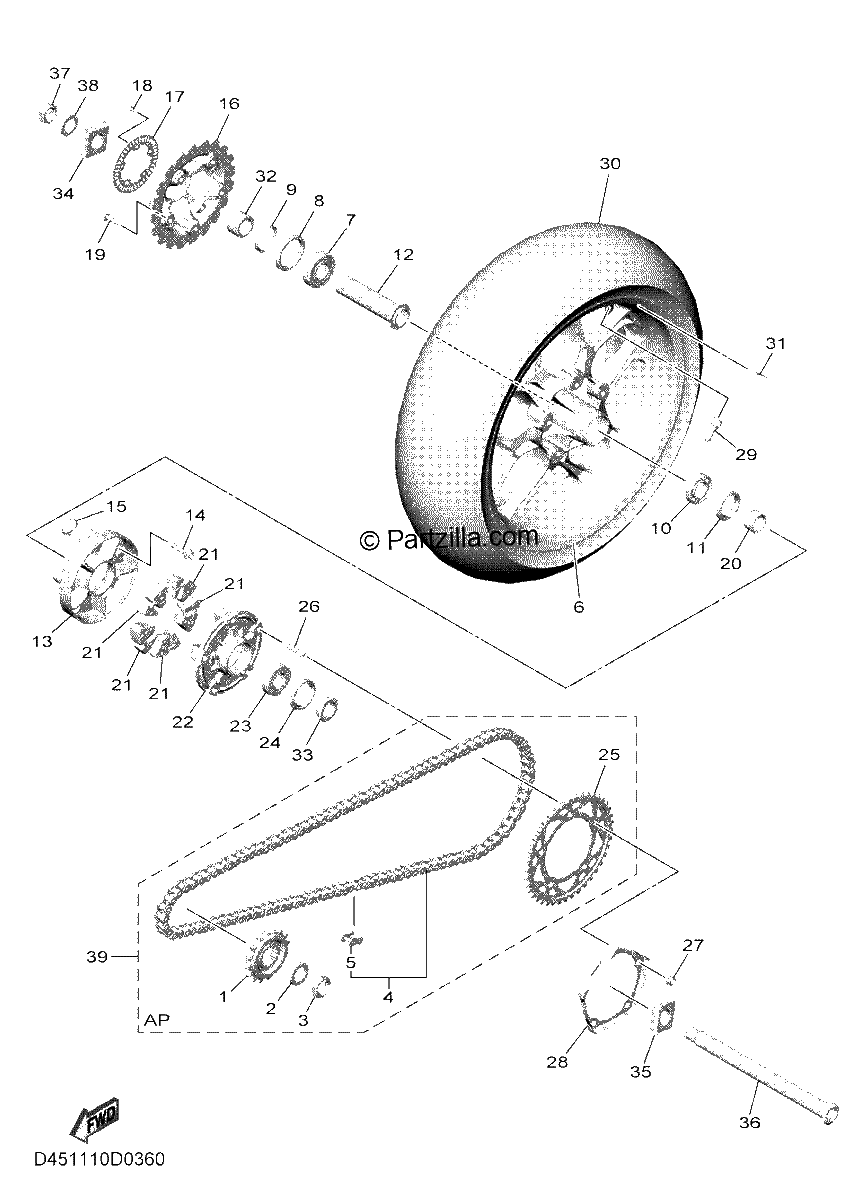

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SPROCKET, DRIVE
$63.35¢31 675
#2
WASHER, CONICAL SPRING
$19.99¢9 994
#3
NUT
$28.44¢14 219
#4
CHAIN (DID525HV3 114LL)
$368.77¢184 388
#5
JOINT, CHAIN (DID525HV3 ZJ)
$18.15¢9 075
#6
CAST WHEEL, REAR
$2322.49¢1 161 244
#7
BEARING
$76.59¢38 294
#8
NUT, ADJUSTING
$60.51¢30 256
#9
OIL SEAL
$12.07¢6 038
#10
BEARING
$68.74¢34 369
#11
OIL SEAL
$15.58¢7 788
#12
SPACER ASSY
$50.08¢25 038
#13
HUB 2
$267.33¢133 663
#14
BOLT, FLANGE
$3.26¢1 631
#15
SEAL, HUB DUST
$3.33¢1 663
#16
PLATE, DISK
$245.21¢122 606
#17
ROTOR, SENSOR
$142.80¢71 400
#18
SCREW
$2.54¢1 269
#19
BOLT,HEX. SOCKET BUTTON
$2.26¢1 131
#20
COLLAR
$24.33¢12 163
#21
DAMPER
$13.96¢6 981
#22
CLUTCH, HUB
$208.54¢104 269
#23
BEARING
$52.95¢26 475
#24
OIL SEAL
$14.36¢7 181
#25
SPROCKET, DRIVEN (41T)
$102.65¢51 325
#26
BOLT, STUD
$27.17¢13 587
#27
NUT, SELF-LOCKING
$4.68¢2 338
#28
BRACKET 1
$38.77¢19 388
#29
VALVE, RIM (TR412) | TAIHEIYO
$17.22¢8 612
#30
TIRE(190/55 ZR17 M/C 75W)
$891.24¢445 619
#31
BALANCER, WHEEL (5G) | UN
$5.47¢2 738
#32
COLLAR
$26.43¢13 213
#33
COLLAR
$31.43¢15 713
#34
PULLER, CHAIN 1
$64.59¢32 294
#35
PULLER, CHAIN 2
$41.64¢20 819
#36
AXLE, WHEEL
$74.70¢37 350
#37
NUT, SELF-LOCKING
$42.75¢21 375
#38
WASHER, PLATE
$7.63¢3 813
#39
CHAIN AND SPROCKET KIT
$495.69¢247 844
